| AI Video |

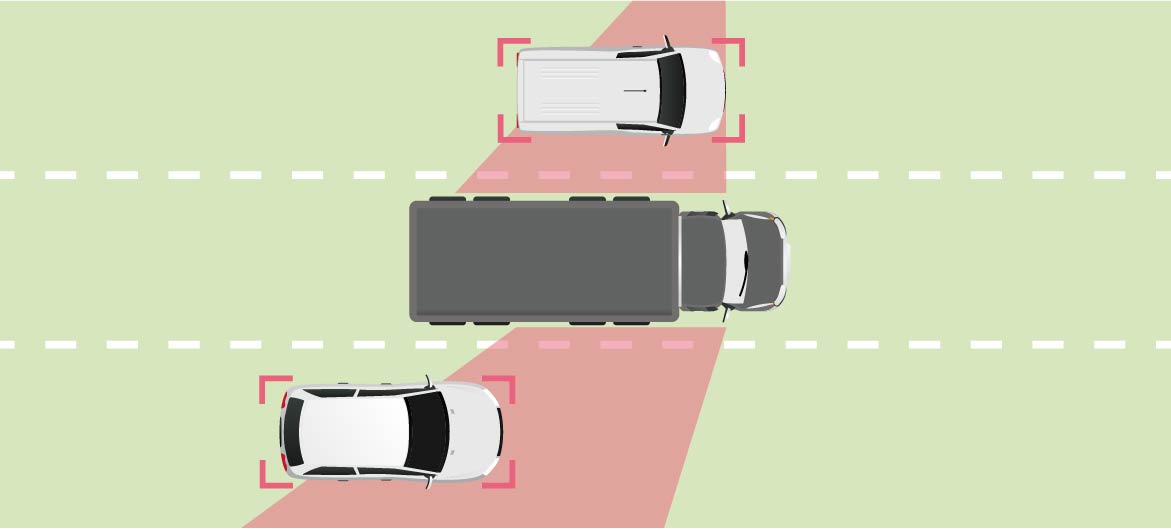

ADAS, DMS, BSD
|
| Audio input |
6 channels for camera MIC input. The camera should support audio.
1 channel for intercom handle input;
1 channel for 3.5mm headset input (GSM communicaion interface)
|
| Audio output |
1 channel for independent audio output (parallelly connected to the AV-OUT interface,
VGA aviation plug interface and intercom handle interface)
1 channel for 3.5mm headset output (GSM communication interface)
|
| Audio compression |
G.726/G.711a/AAC
|
| Recording method |
Normal recording and alarm recording; audio and video recorded simultaneously
|
| Video input |
6-channels AHD camera, can support D1/720P/1080P arbitrary mixing
Adaptive camera resolution and format (PAL and NTSC) Maximum support
6x1080P@15fps real-time video recording
|
| Video output |
1 channel VGA video output (8Pin aviation head interface),
default resolution 1024*7681
1 CVBS aviation plug (level: 1.0Vp-p, impedance: 75Ω)
Resolution: PAL 704*576, NTSC 704*480
|
| Video search & playback |
Retrievable playback by channel, video type, bitstream type and time
|
| Video compression |
H.264/H.265 configurable
|
| Image display |

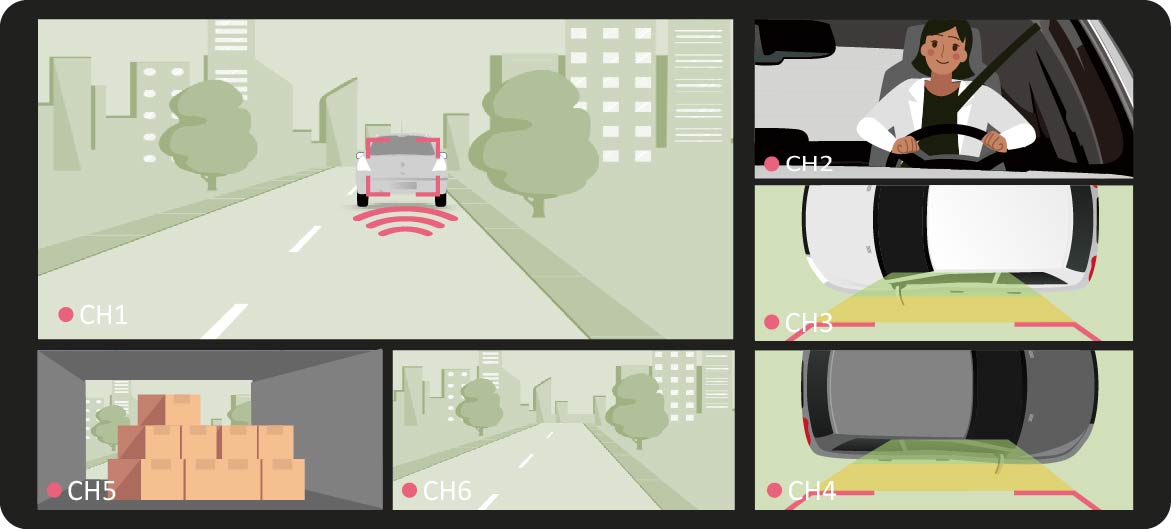

Support 1 or 6 images display
|
| GSM |
4G (LTE Cat 4), 3G, 2G
|
| GNSS antenna |
Supports antenna insertion/extraction/short circuit detection
|
| WiFi |
IEEE 802.11 b/g/n, frequency 2.4G & 5G, supports STA and AP dual mode
|
| Bluetooth |
Supports master-slave dual mode, can read the bluetooth accessories,and can configure parameters through the APP
|
| ETH |
√
|
| Positioning mode |
GPS/GPS_BEIDOU/GPS_GLONASS
|
| Positional accuracy |
2.5 m
|
| Sensitivity |
-162 dBm
|
| Rated voltage |
DC: 11.4-36V. Rated at 12V/3A
|
| Power consumption |
Startup power consumption for the host with audio and video: about 6W
Daytime: about 24W with 6-way cameras, and about 29W with a display added
Nighttime: about 32W with 6-way cameras, and about 37W with a display added
When connected to a single camera, the normal range is 50mA~100mA during the day,and 200mA~250mA at night.
|
| Operation system |
Dual system operation, dual communication channels (to prevent data loss)
|

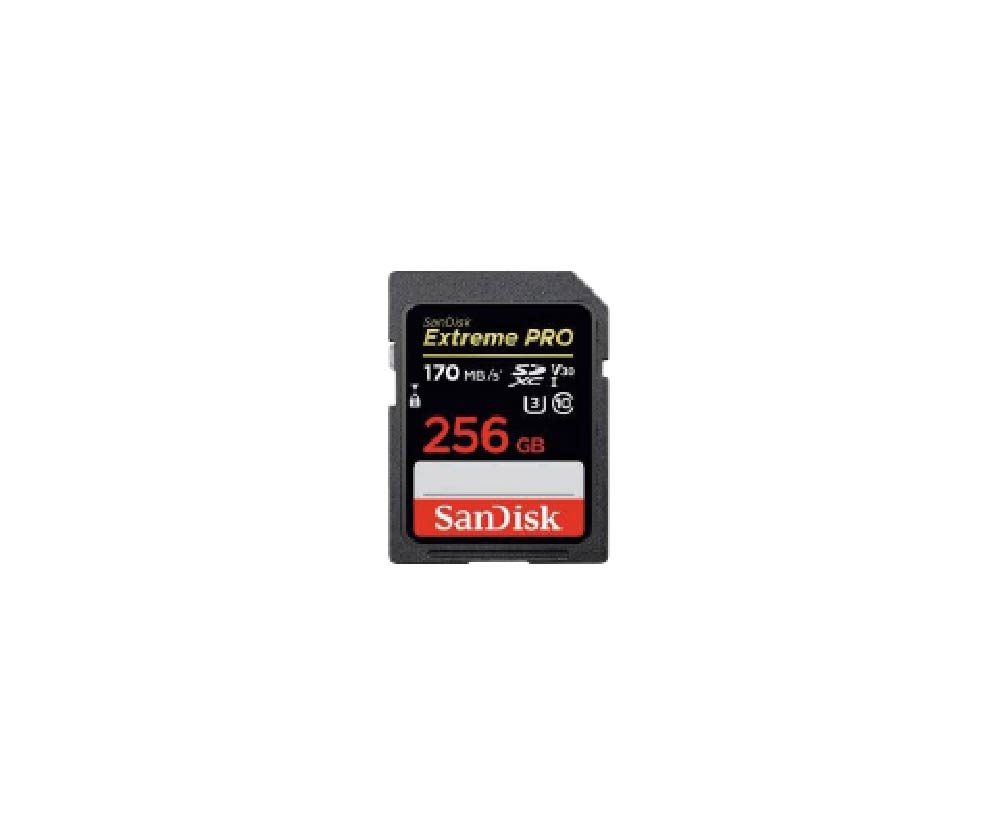

| Storage medium |

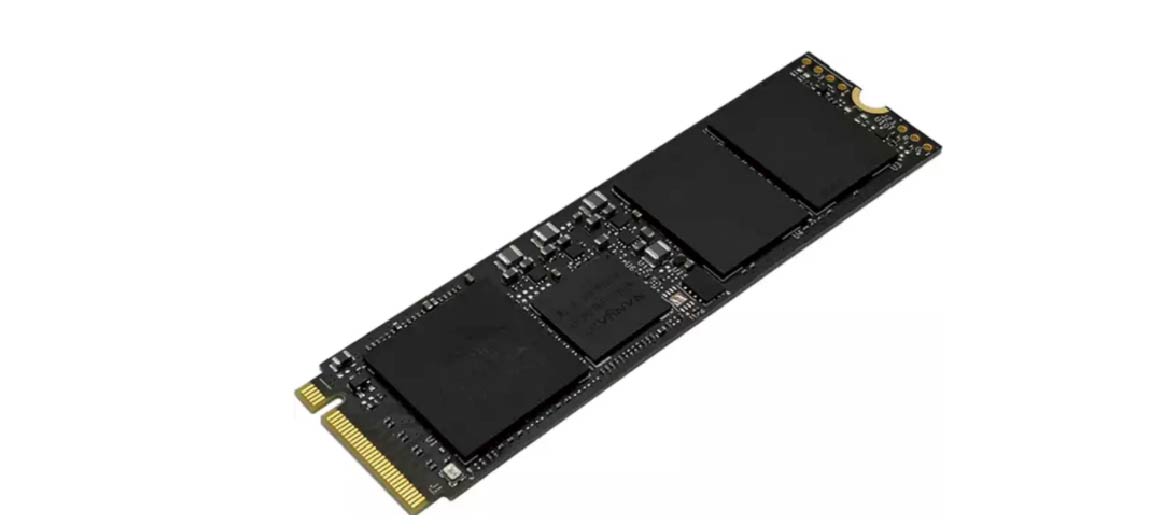

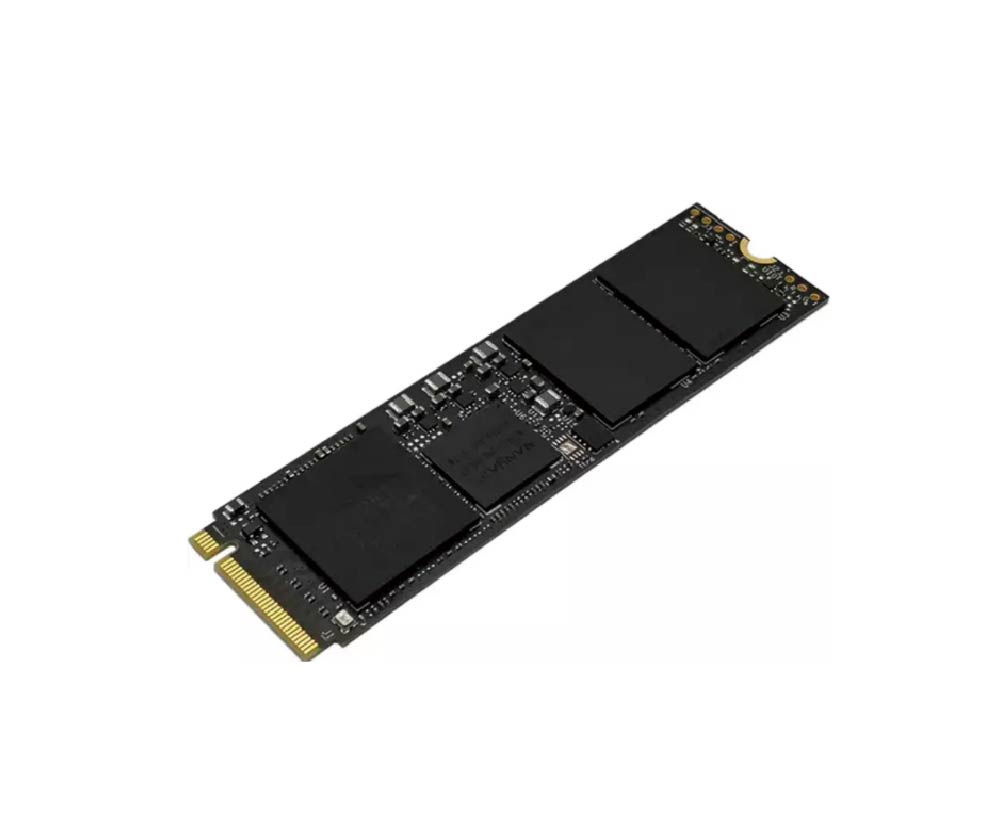

1*M2 SSD and 2*SD, Capacity: 2 TB + 2* 512 GB, supports PCIe x2 and PCIe x4 NVME protocol M.2 NGFF SSD (2280 specifications)
|
| SPI memory |
Built-in 64Mbit for storing GPRS/SMS/GPS LOG data
|
| Built-in sensor |
6-axis acceleration sensor
|
| Operating temperature/humidity |
-20°C to 70°C (without battery)
|
| Dimensions |
120*154*63mm
|
| Weight |
740g (excluding accessories)
|
| Europe |
MD600-E
GSM: B3/B8
WCDMA: B1/B5/B8
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
|
| America |
MD600-A
WCDMA: B2/B4/B5
LTE-FDD: B2/4/5/12/13/14/66/71
|
| Australia |
MD600-AU
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B8
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD: B40
|
| Japan |
MD600-J
WCDMA: B1/B6/B8/B19
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: B41
|
| Global |
MD600-G
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B6/B8/B19
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
|
| Protocol |
JT/T 1078-2016, JT/T808-2019
Meitrack protocol (CCE) and RTMP (an Audio/Video Transport Protocol,
also compatible with the Meitrack Audio/Video Private Transport Protocol)
|
| Certification |
CE
|
| Interfaces |
Main cable interfaces: 8*Din (Max 8*Din) + 2*Dout(Max 8*Dout) + 2*AD(Max 6*AD)
+ 1*Speed_IN + 1*1-wire + 2*RS485 +1*CAN + 1*DC_5V + 1*DC_12V
Other interfaces: 2-channel for RS232, 1-channel for ACC
|

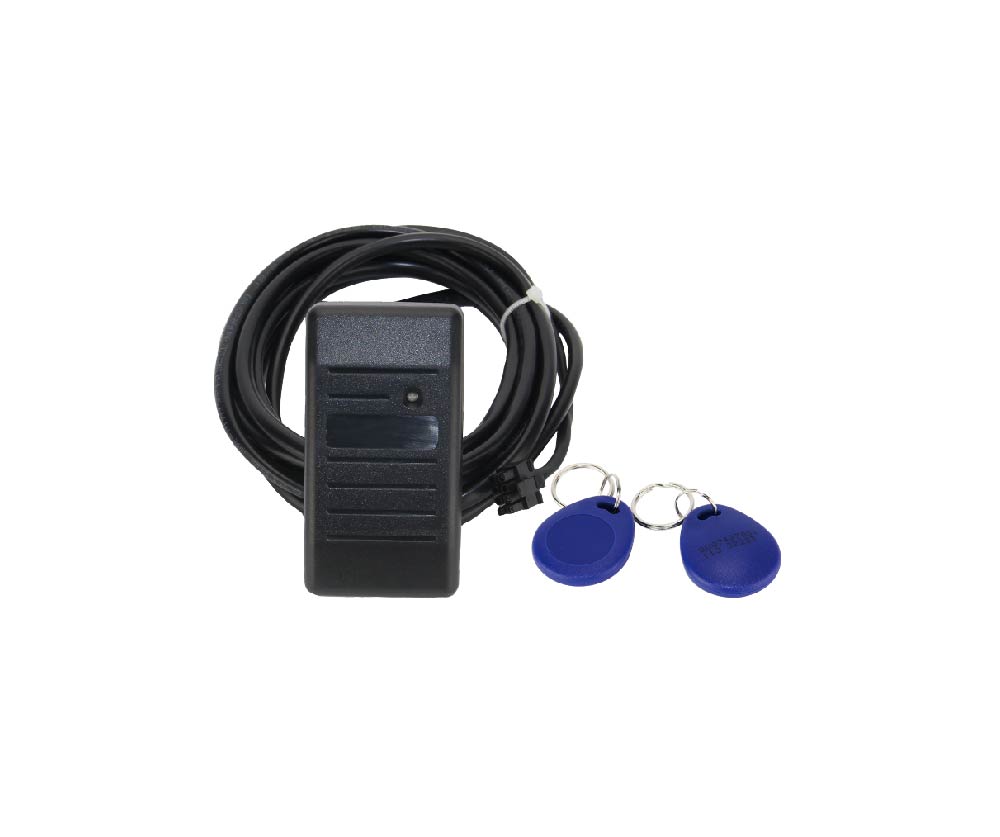

| RFID |
√
|

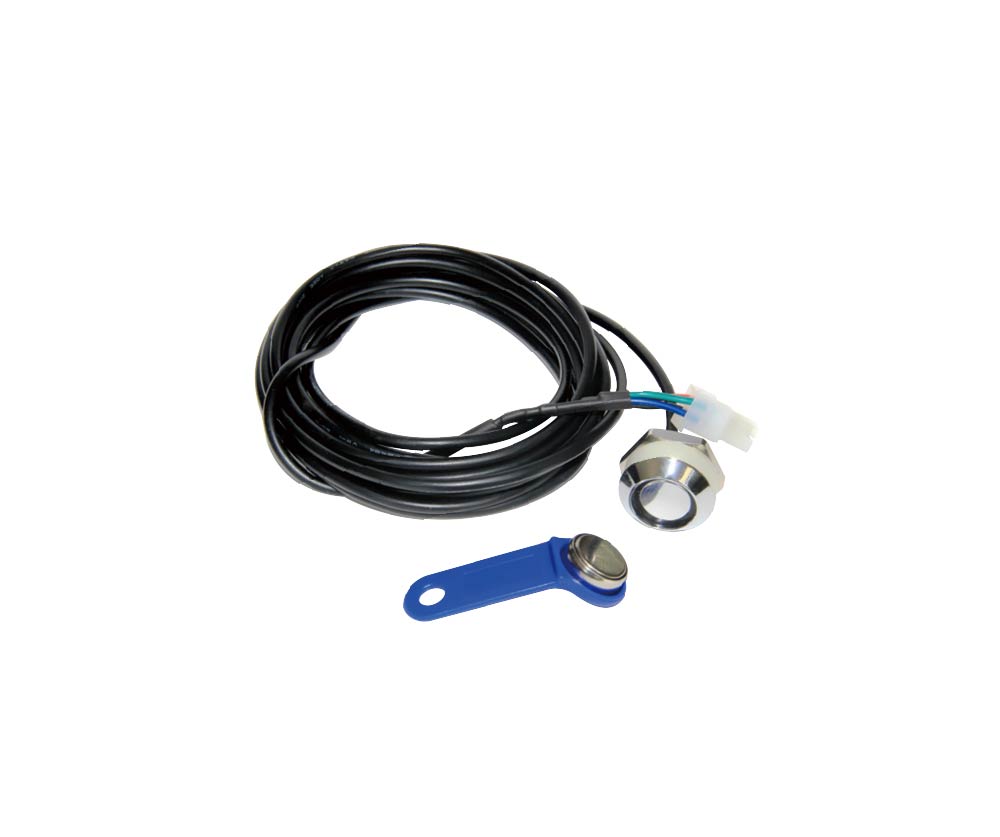

| iButton |
√
|

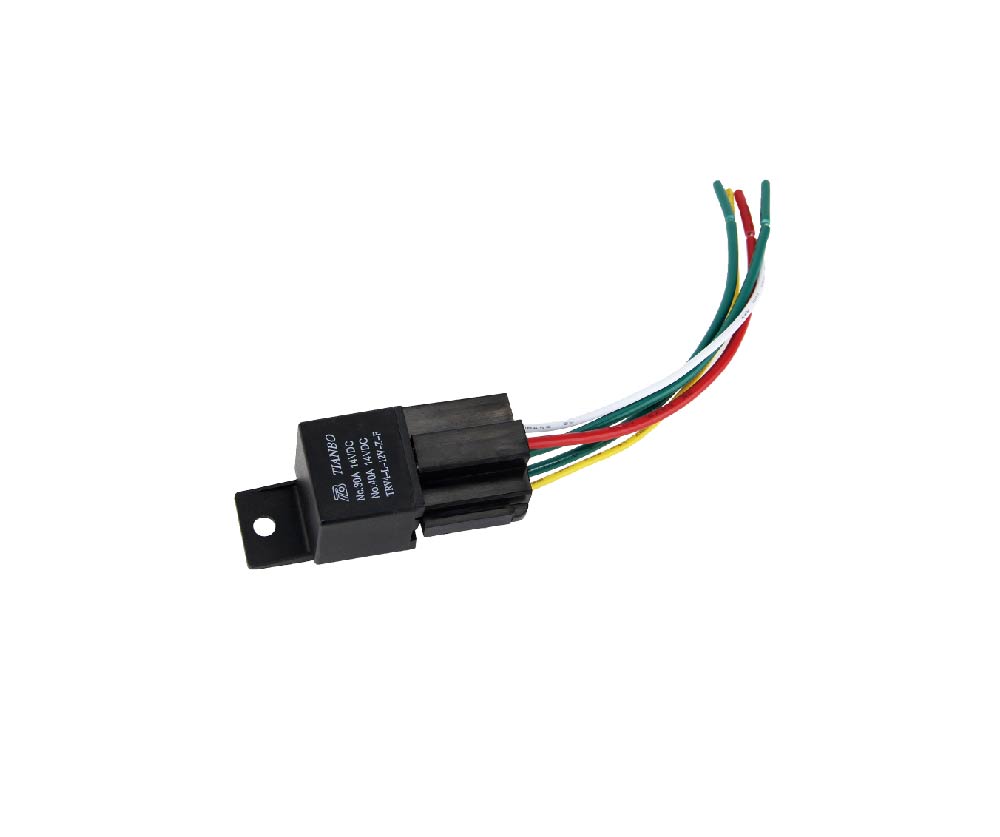

| Relay (12V/24V) |
√
|
| Buzzer |
×
|
| Microphone & speaker |
√
|

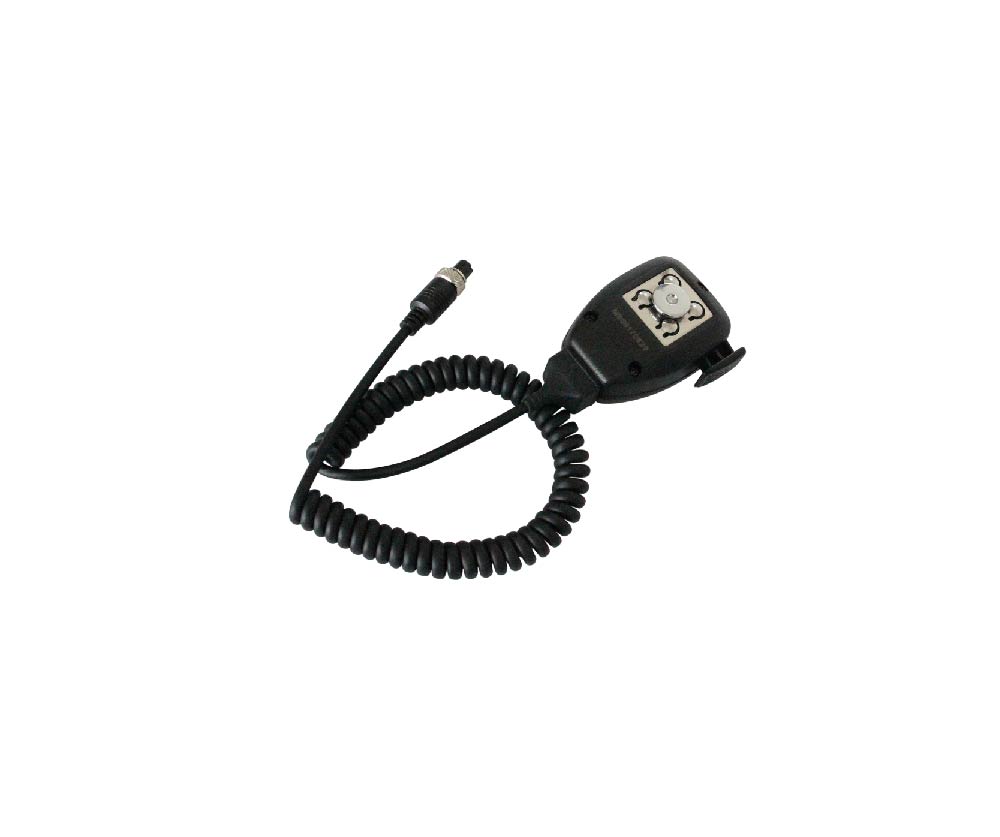

| Intercom handle |
√
|

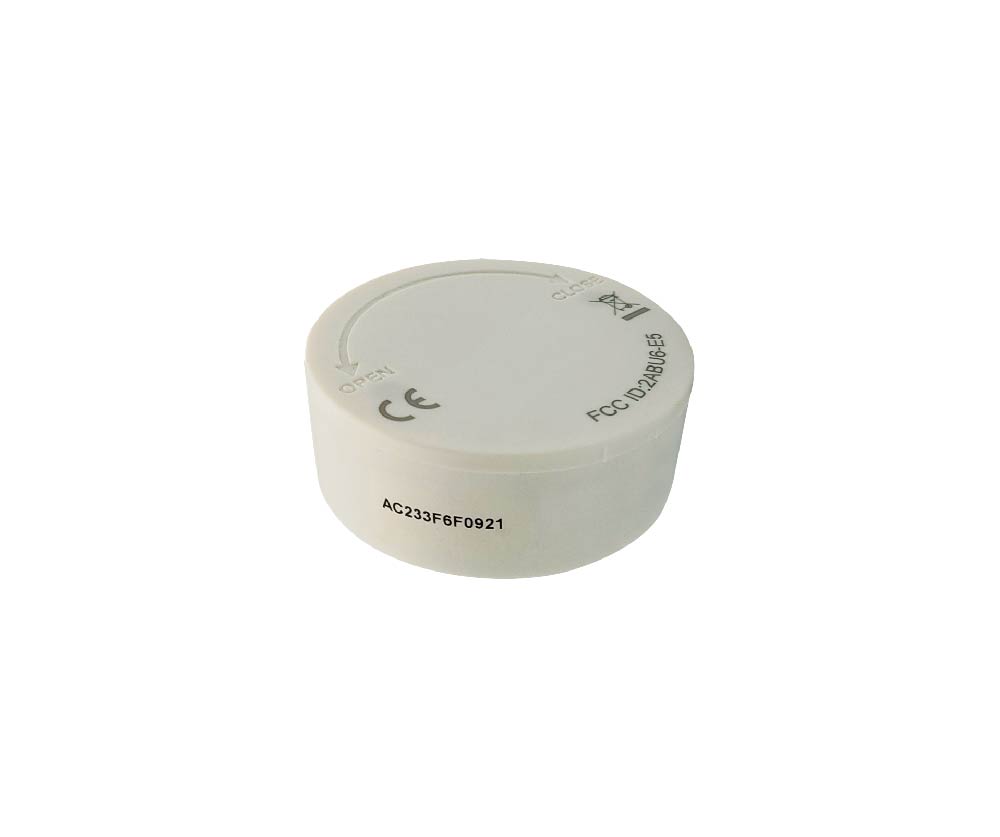

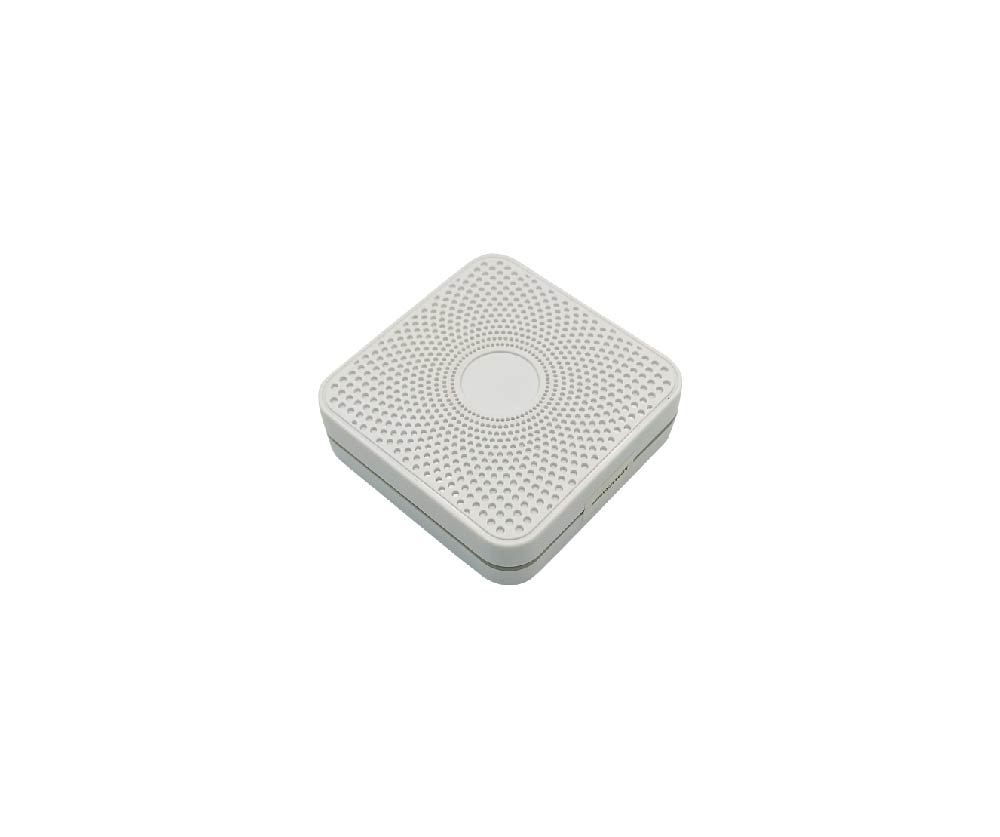

| BLE beacons |
√
|

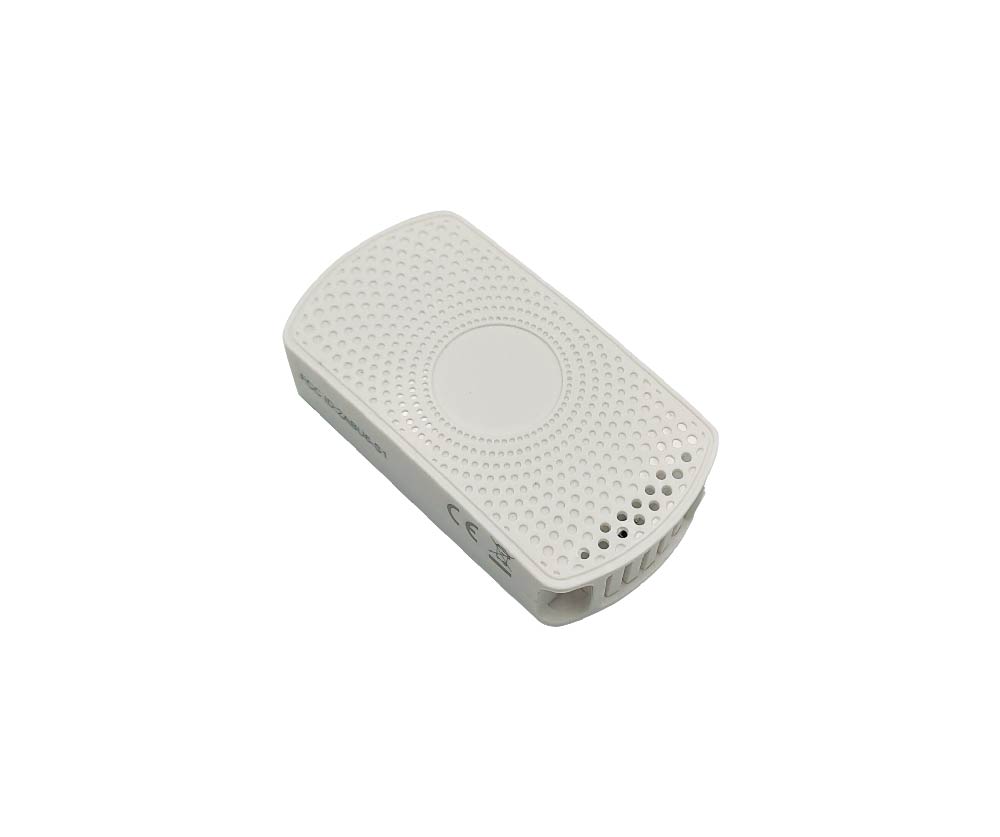

| BLE temperature & humidity sensor |
√
|

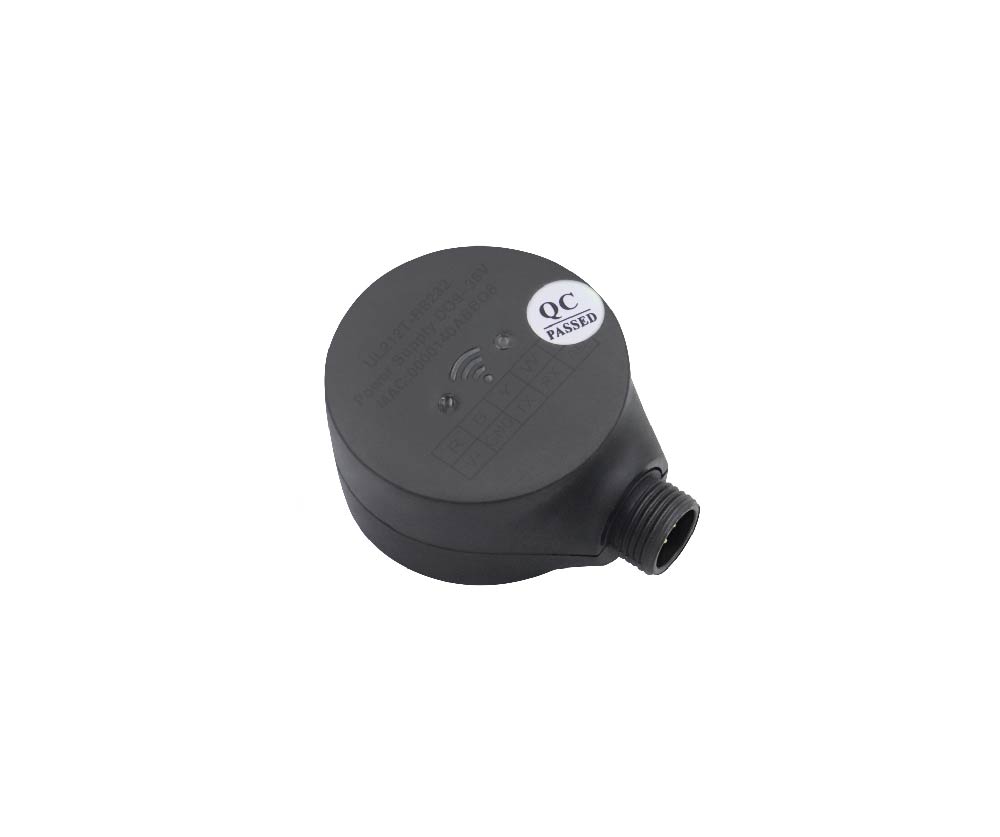

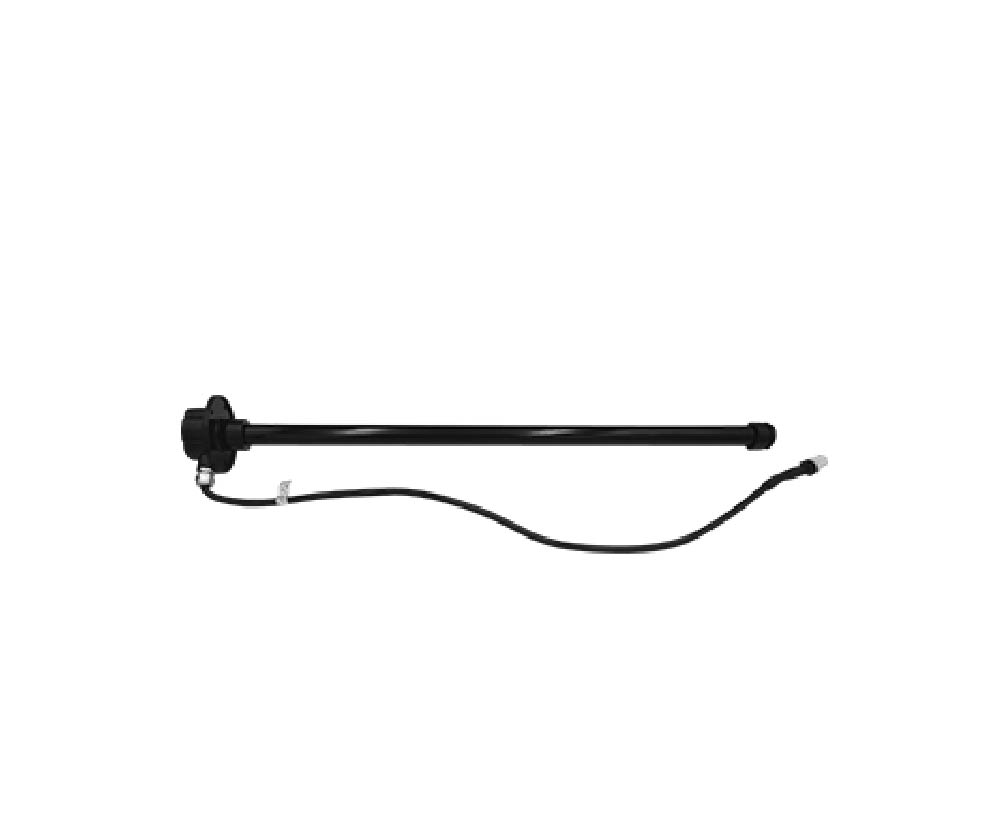

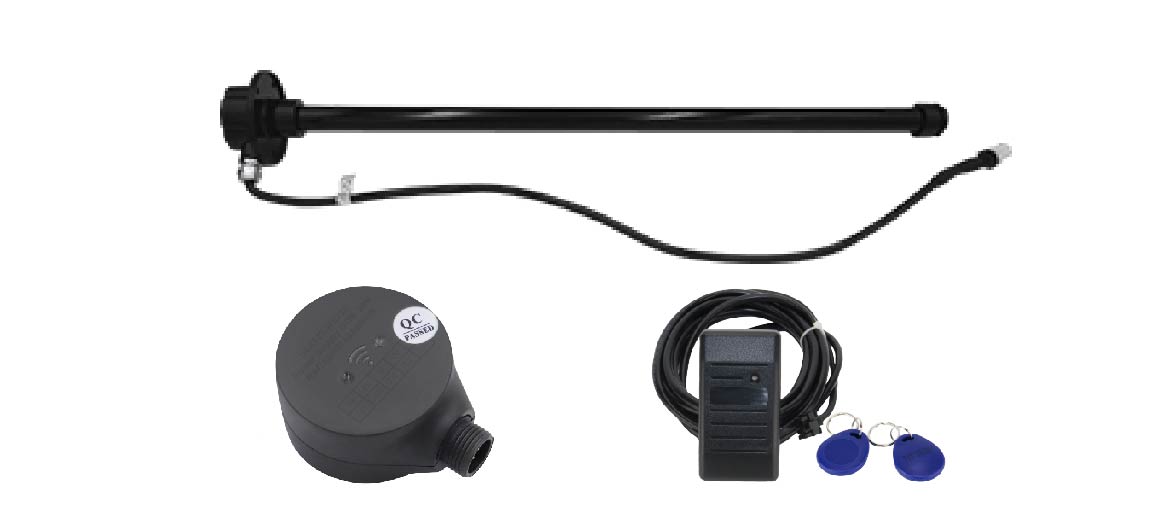

| Ultrasonic fuel level sensor |
√
|

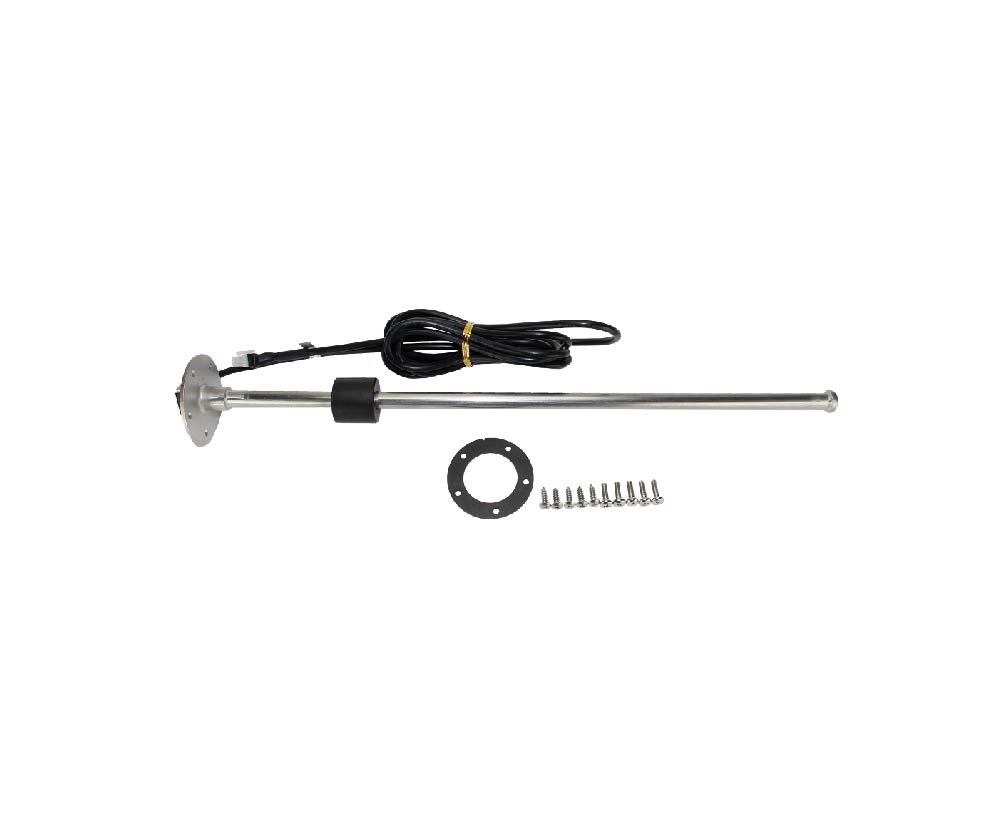

| Fuel level sensor |
√
|

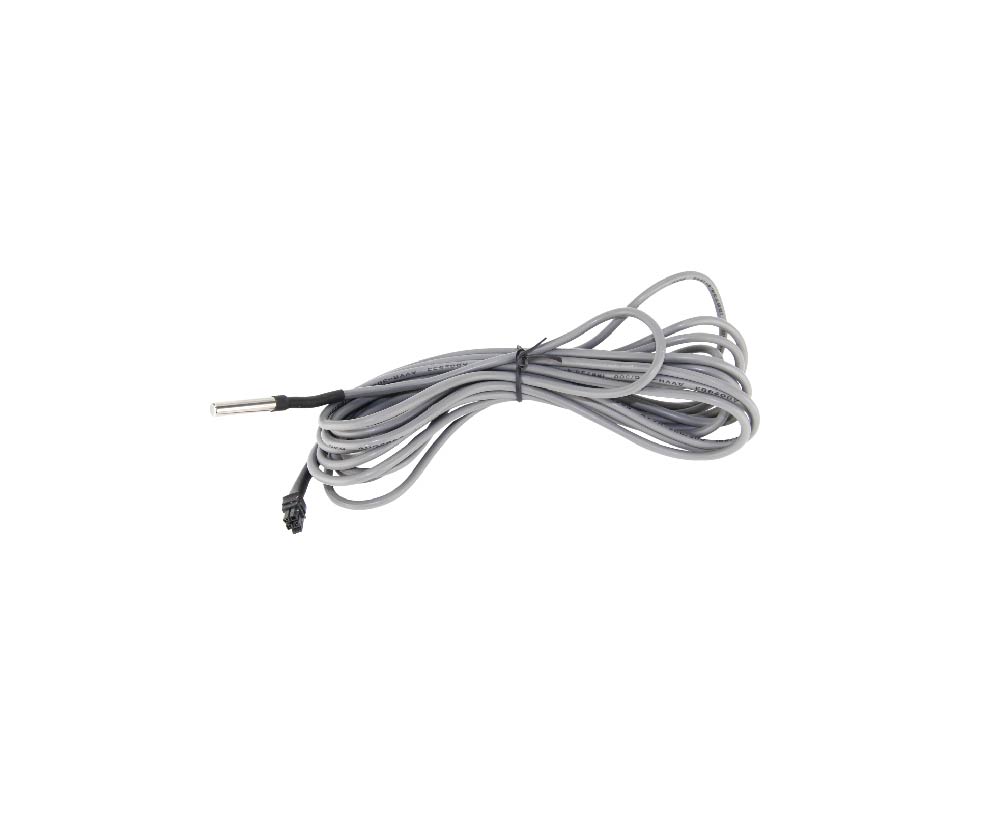

| Digital temperature sensor |
√
|
| Tire pressure sensor |
×
|

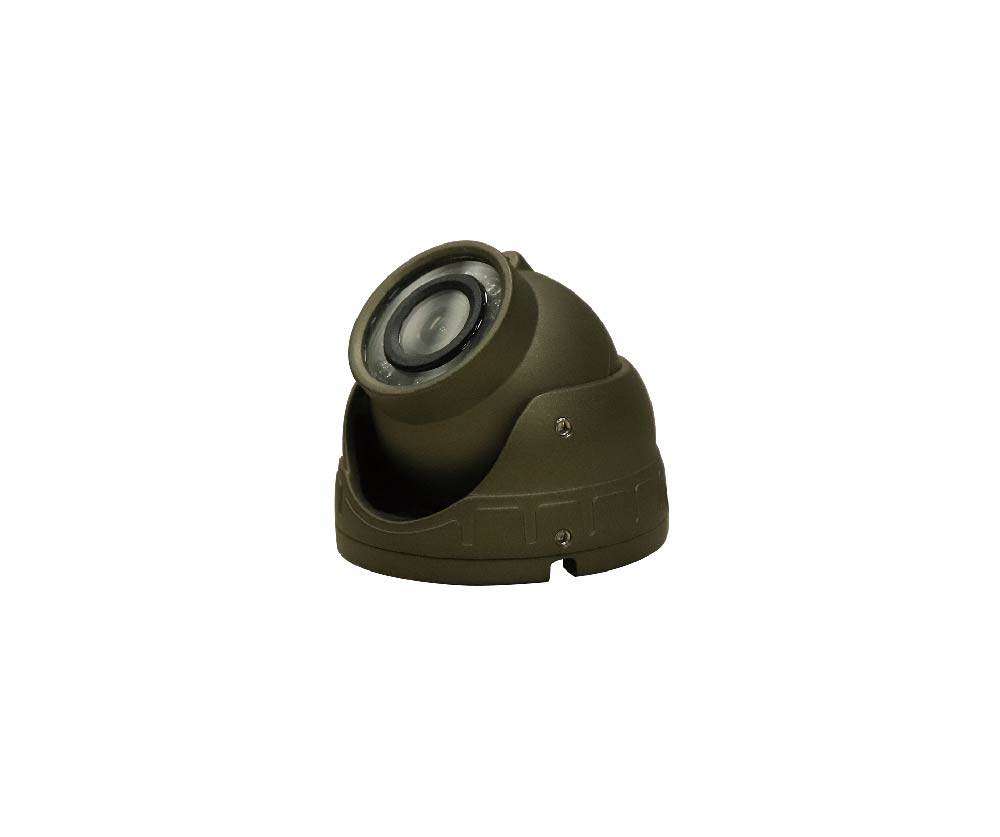

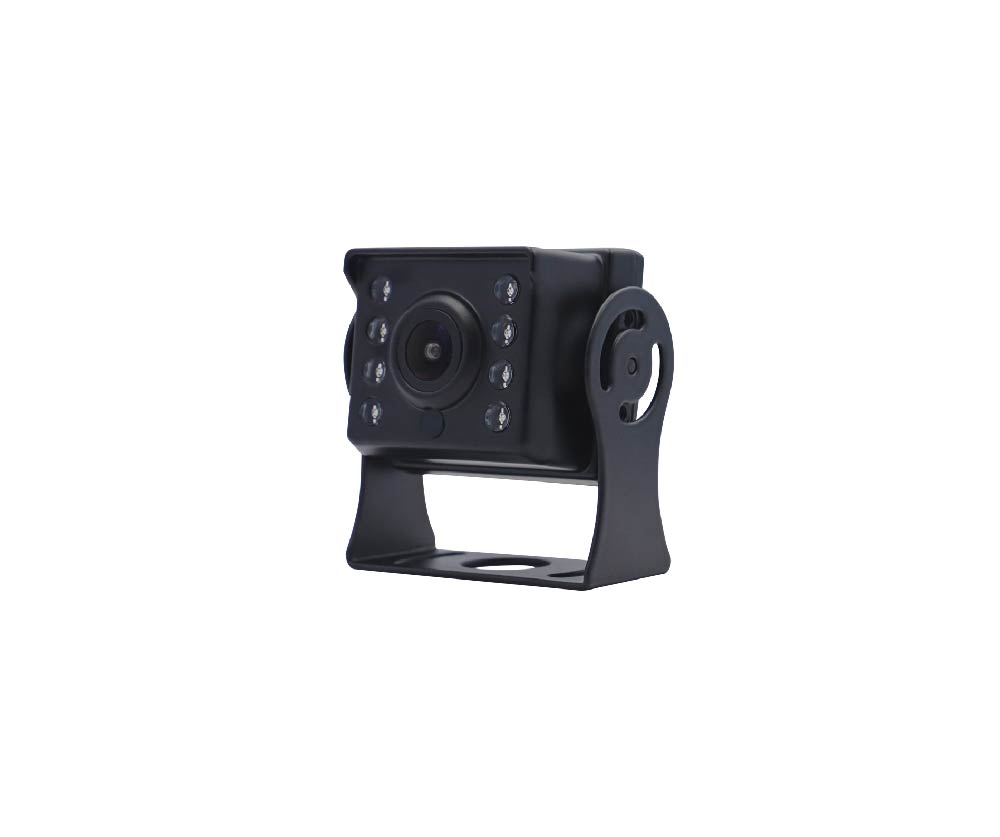

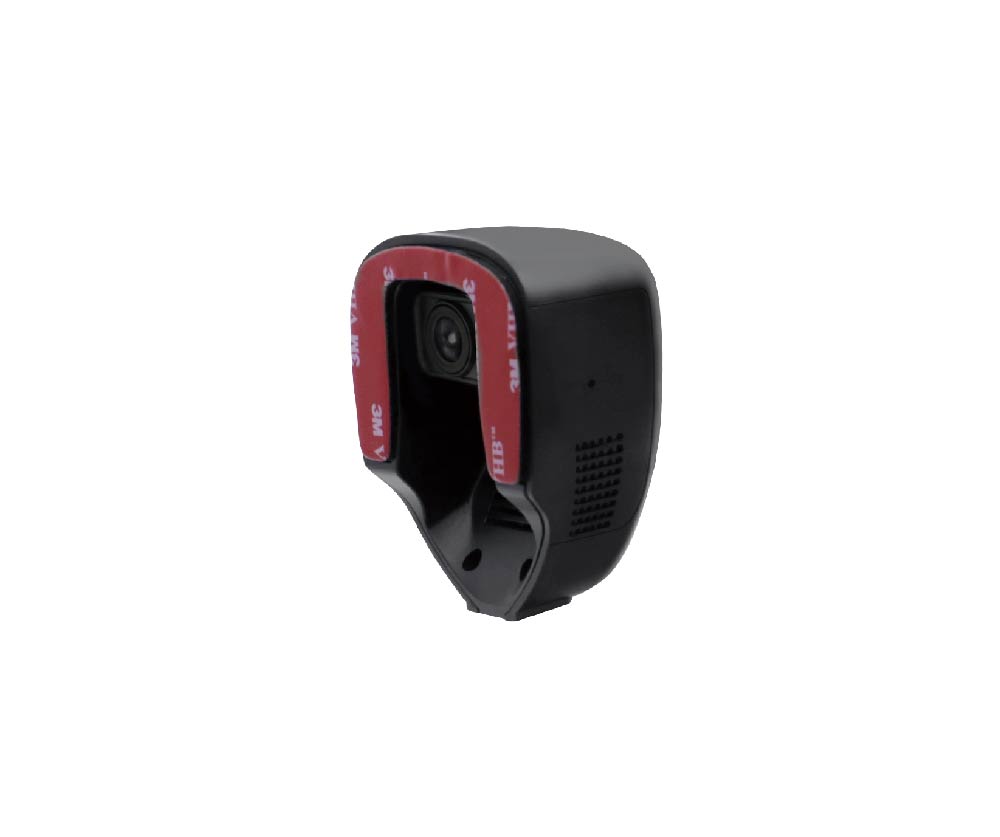

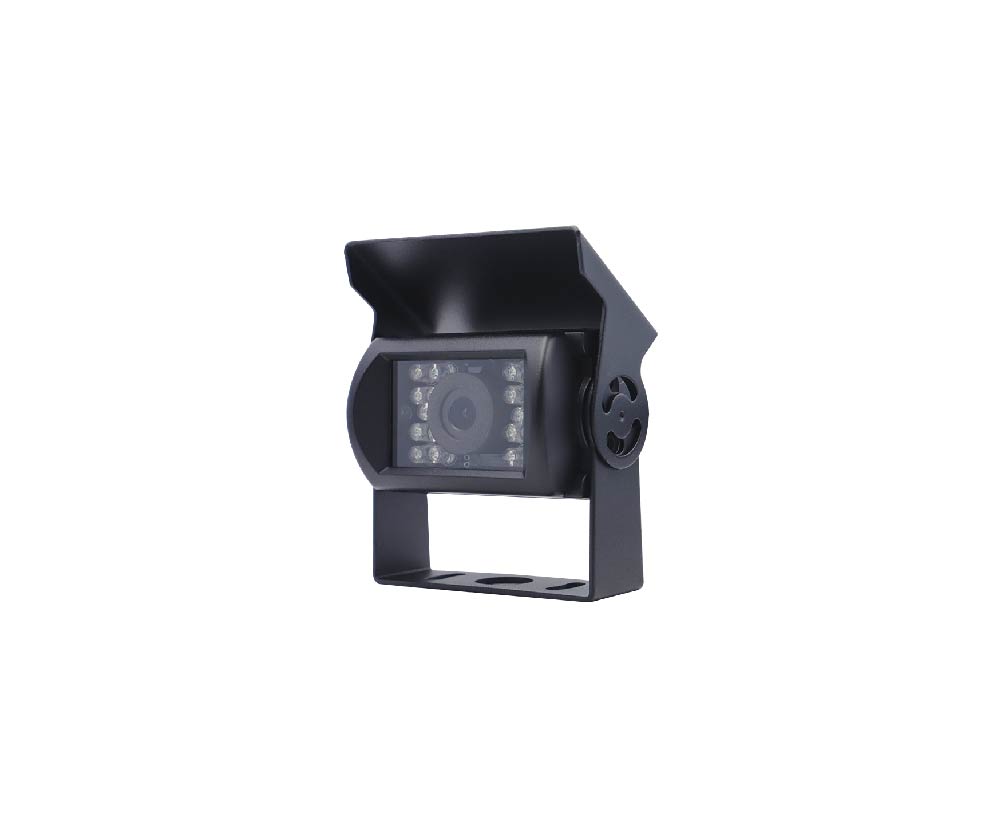

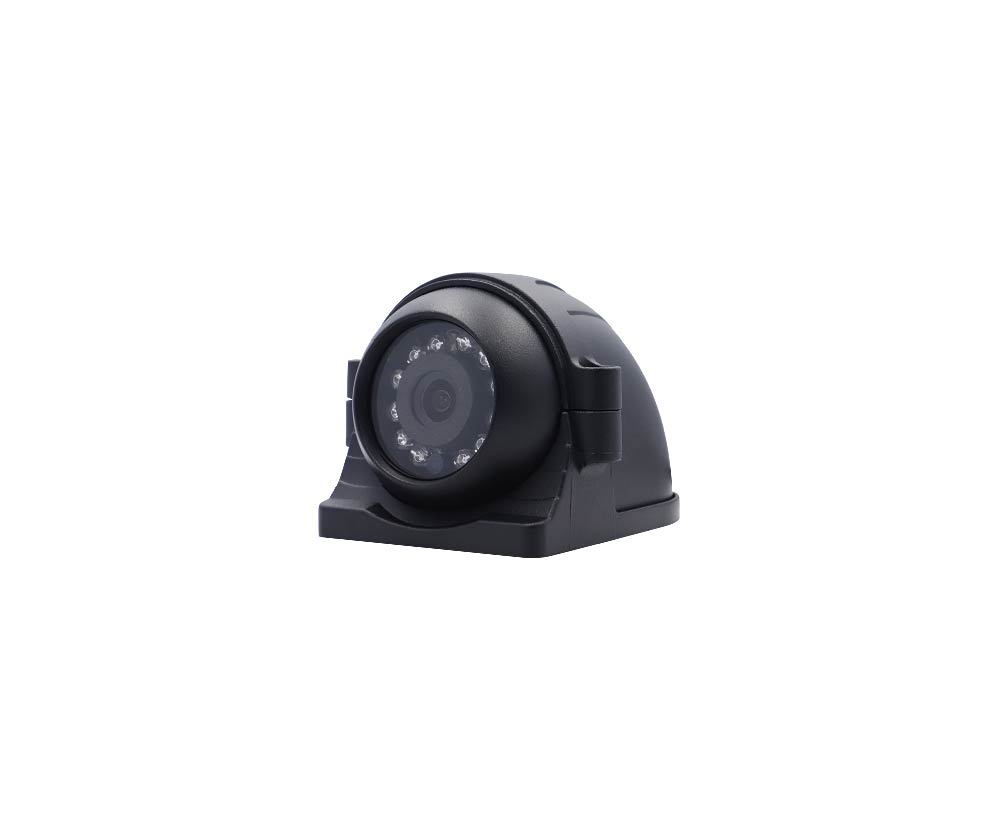

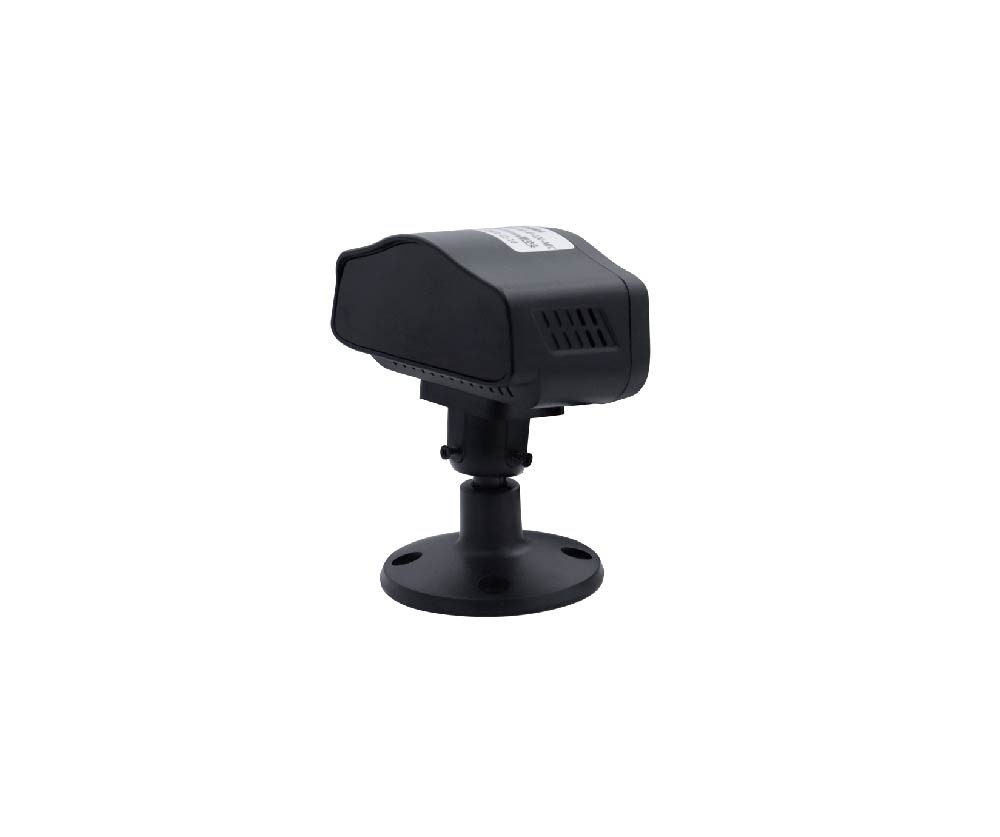

| Camera |
√
|

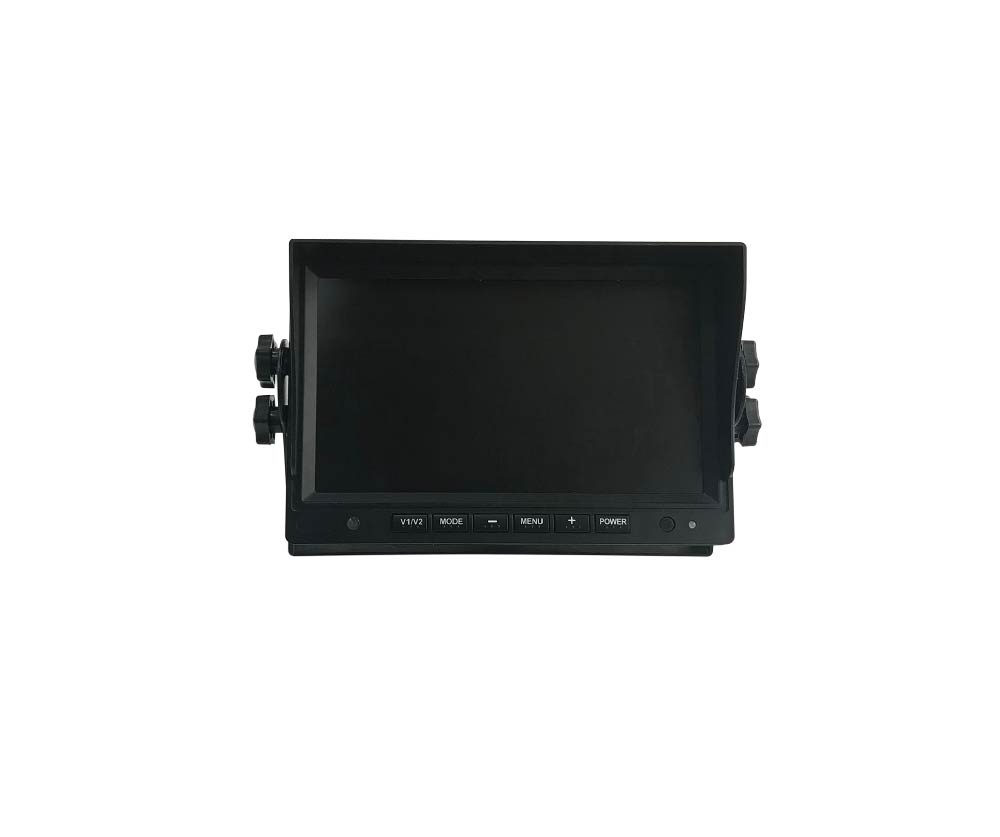

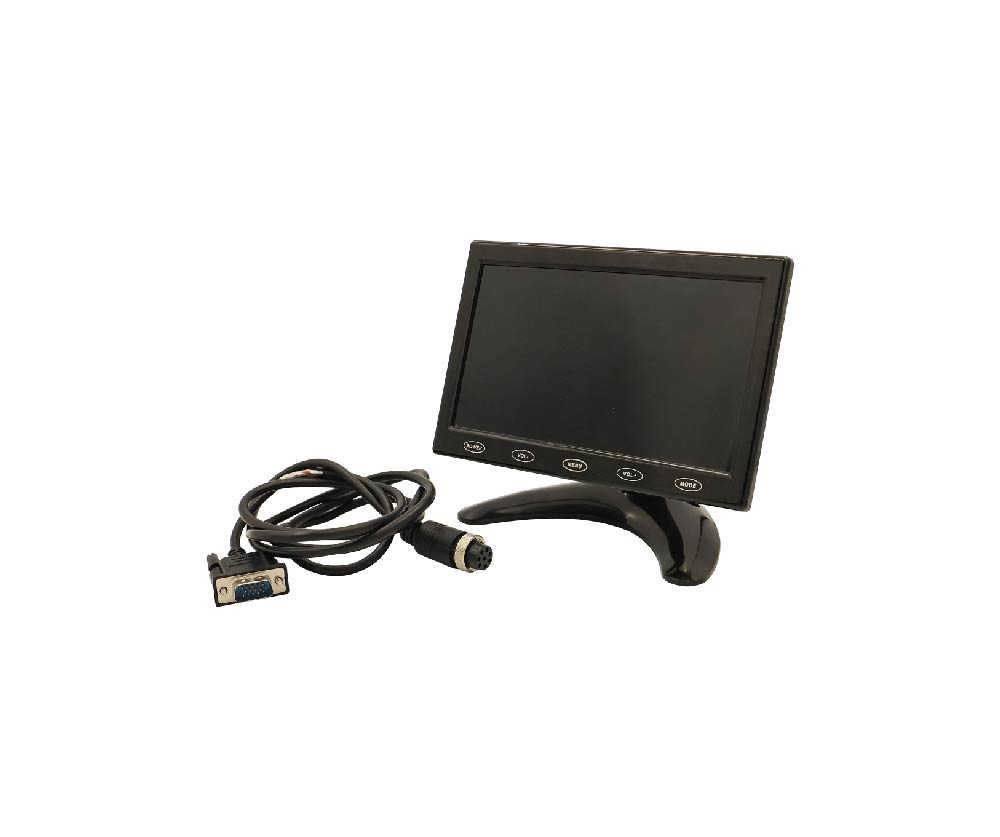

| Display |
√
|
| Battery |
×
|
