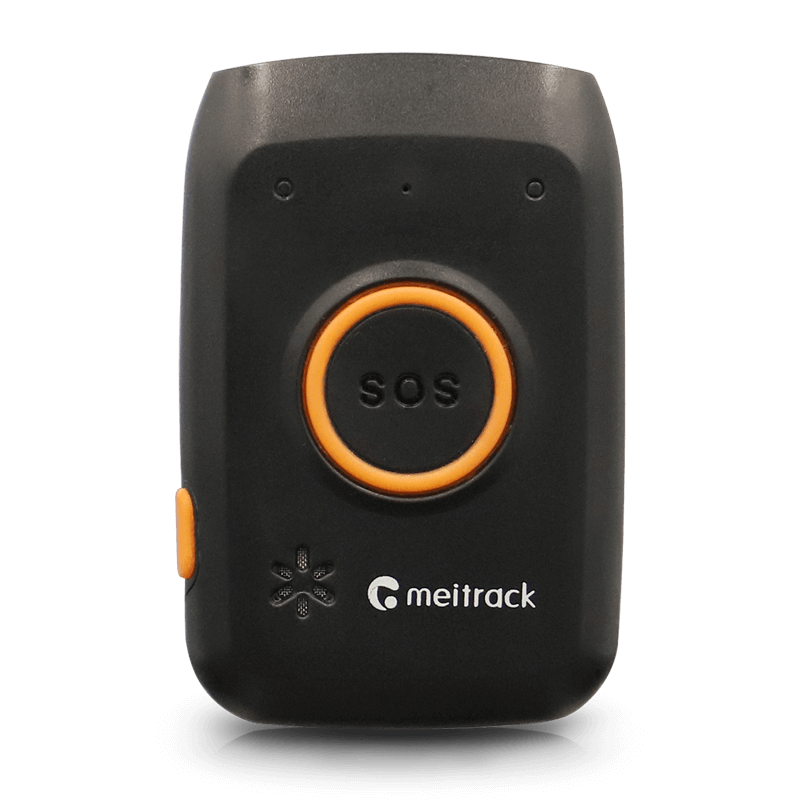

P88L

  • Portable Design, Easy Use
  • LBS/GNSS/Wi-Fi/Bluetooth Positioning
  • Smart Working Mode
  • Multifunctional
Add to Wishlist
Trust Badge Image

Features





Specifications

GSM

4G (LTE Cat 1), 3G, 2G

Wi-Fi positioning

(optional) WiFi@2.4 GHz, 802.11 b/g/n

Bluetooth

(optional) BLE 2.4G. Configure device parameters by Bluetooth.
Support the Bluetooth anti-lost function.

LoRa

LoRa communication distance (optional): At most 20 meters (obtained from actual tests in trucks' containers)
LoRa working frequency (optional): 137–1020 MHz (433 MHz by default)
LoRa antenna (optional): Built-in spring antenna

Positioning accuracy

2.5M

Power consumption

5 mA (average current; 3.8 V; GPS off or WiFi off; don't upload data)

Charging

Fast magnetic charging (standard): 1800 mA (charging time: about 1.5 hour)

Working hour

200 hours of battery hours

Dimensions

67.8 mm x 44.4 mm x 16.3 mm

Weight

60g

Operating temperature

-10°C to 65°C

Operating humidity

5%–95 %

Ingress protection

IP67

Memory

8 MB buffer

Europe

P88L-ER
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
GSM: B2/B3/B5/B8

Australia

P88L-AUR
LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
GSM: 850/900/1800/1900MHz

Japan

P88L-JE: LTE-FDD: B1/B3/B8
P88L-JC: LTE-FDD: B1/B18/B19/B26

OTA/FOTA

×

Certification

CE, FCC

RFID

×

iButton

×

Relay (12 V/24 V)

×

Buzzer

×

Microphone & speaker

×

Intercom handle

×

BLE temperature & humidity sensor

×

Ultrasonic fuel level sensor

×

Fuel level sensor

×

Capacitive oil sensor

×

Digital temperature sensor

×

Tire pressure sensor

×

Camera

×

Display

×

Battery

×

Remote control

×

Download

Product User Guide

P88L flyer

Meitrack P88L Product User Guide

V2.2

2023-4-13

Protocol

Meitrack P88L GPRS Protocol

V1.3

2020-11-4

Meitrack SMS Protocol

V3.0

2022-7-18

Aided Software

Meitrack Manager (New Version)

V6.0

2024-03-26

Meitrack Manager User Guide (New Version)

V2.0

2023-10-23

OTA User Guide

V1.3

2021-12-29

MyCOM

STM32_USB_Driver

2021-12-29

Meitrack Family GPS Tracking System

Meitrack MS03 User Guide

V1.0

2021-12-29

Meitrack MS03 for iOS

V3.1

2022-1-20

Meitrack MS03 for Android

V2.5

2022-1-20
