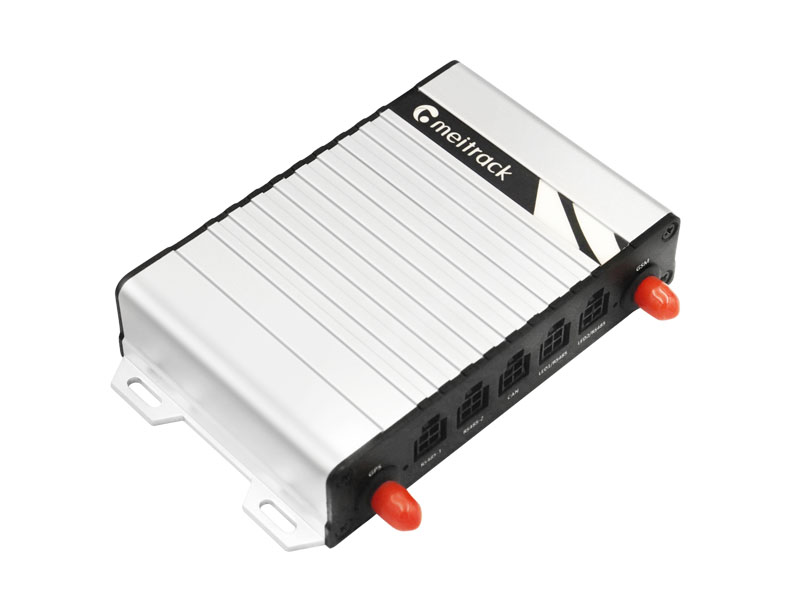

truck gps tracker

FEATURES

Smiley face
L1+L5+DR (optional)
L1+L5 dual-band signals and the dead reckoning collaborate to improve positioning accuracy to 1m.
Smiley face
Dead Reckoning
The positioning is accurate even when there’s a GPS jammer or when going through tunnels and underground garages.
Smiley face
High-Precision Impact/Rollover Detection
It can be accurately determined if the vehicle has impacted or rolled over through the G-sensor and multidimensional data.
Smiley face
Maximize I/O Flexibility
Offer outstanding configuration flexibility to cater to a wide variety of requirements.
1
CAN Bus Interface
Has CAN bus interface which can read CAN dataof various vehicle models.
screen
Driving Behavior Analysis
Detect driver behaviors, such as the driver fatigue, idling, harsh acceleration/ braking and etc.

APPLICATIONS

T633-app

SPECIFICATIONS

Dimension 106 mm x 24.5 mm x 70 mm
Weight 190g
Power supply DC 11.4–36 V/1.5 A
Backup battery 400 mAh/3.7V
Power consumption Current in standby mode: 11mA
Operating temperature -20°C to 55°C (normal-temperature battery)
-5°C to 75°C (high-temperature battery)
Operating humidity 5% to 95%
Working hour 45 hours in power-saving mode
4 hours in normal mode
LED indicator Green indicator showing the GSM signal
Blue indicator showing the GPS signal
Sensor 3-axis accelerometer (used to wake the device up by vibraon and detect towing alerts)
Memory 8 MB buffer
Button/Switch 1 SOS button (for sending SMSs or dialing), 1 power button
I/O port 3 x Din, 3 x Dout, 2 x AD, 1 x 1-wire, 2 x RS232, 4 x RS485, 1 x CAN
Frequency band T633L-ER:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28,
LTE-TDD: B38/B40/B41, GSM: B2/B3/B5/B8
T633L-AUR:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66, LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8
T633L-E:
LTE-FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM: B3/B8
T633L-A:
LTE-FDD: B2/B4/B12, WCDMA: B2/B4/B5
T633L-AU:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE-TDD: B40,
WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8
T633L-J:
LTE-FDD: B1/B3/B8/B18/B19/B26
T633G-E:
WCDMA: 900/2100 MHz, GSM: 900/1800 MHz
T633G-A:
WCDMA: 850/1900 MHz, GSM: 850/900/1800/1900 MHz
Positioning accuracy 1m
GNSS GPS/GLONASS/Galileo/BDS/QZSS/SBA

ACCESSORIES

T633 Series tracker External 3G/4G antenna External GPS antenna
CANBUS convertor cable I/O cable with an SOS button (2 meter) CD download card

OPTIONAL ACCESSORIES

Camera iButton RFID reader
Speaker and microphone Buzzer Relay (12 V/24 V)
USB cable Ultrasonic fuel level sensor A52 digital temperature sensor
A53 fuel level sensor (voltage sensor) A81 LED Nixie Tube Display

CERTIFICATE

CE, saber, CITC, NBTC
