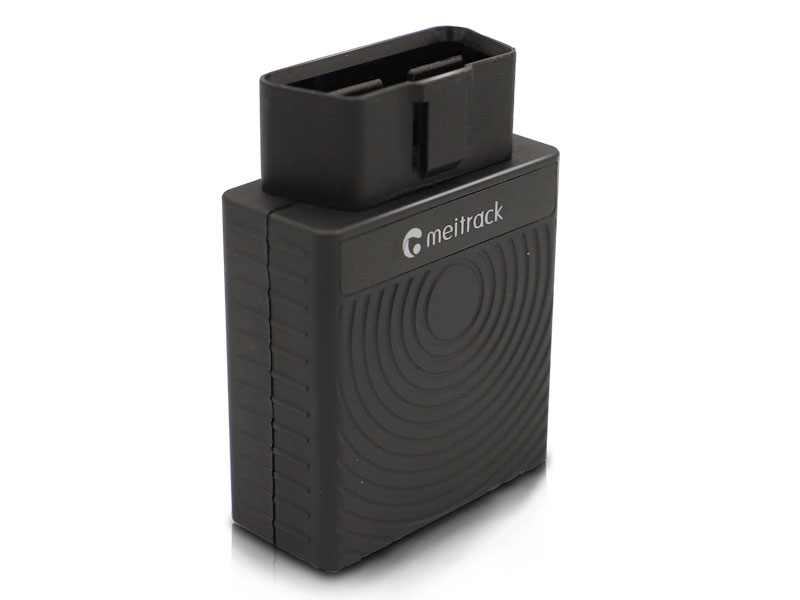

plug and play GPS tracker

FEATURES

OBD Data
Read a wide range of OBD data including driving behavior, fuel, mileage, speed, and temperature etc.
Smiley face
Built-in Bluetooth
Support multiple Bluetooth temperature and humidity sensors and beacons at one time.
1
2.4 GHz WiFi Hotspot
Act as an in-vehicle WiFi hotspot, up to 8 WiFi enabled devices.
screen
Disconnect Alert
An instant alert will be received when the device is removed.

APPLICATIONS

APP-EN

SPECIFICATIONS

Dimension 67 mm x 51 mm x 23.5 mm
Weight 60g
Power supply DC 11.5–36 V / 1 A
Backup battery 200 mAh/3.7 V
Battery life Power-saving mode: 20 hours; Normal working mode: 2 hour
Power consumption Current in standby mode: 100 mA
Operating temperature -20℃ to 55℃
Operating humidity 5% to 95%
LED indicator 2 LED indicators showing GSM and GPS status
Button/Switch 1 SOS button
Memory 8 MB buffer
Sensor 3-axis accelerometer
Positioning accuracy 2.5m
I/O port 1 USB port
WiFi function (optional) 2.4 GHz WiFi hotspot
Bluetooth (optional) Support Bluetooth 4.2 and Bluetooth 5.0
OBD (optional) Support ISO15031, J1939 (FMS), J1979, ISO14230, KWP2000-FAST, KWP2000-5BPS protocol
Frequency band No WiFi version band:
TC68E:
Cat M1/NB2: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85
GSM: B2/B3/B5/B8
TC68L:
FDD: B1/B3/B5/B7/B8/B20/B28, TDD: B38/B40/B41,
WCDMA: B1/B5/B8, GSM: B3/B8
TC68L-E:
FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM: B3/B8
TC68L-A:
FDD: B2/B4/B12, WCDMA: B2/B4/B5
TC68L-AU:
FDD: B1/B2/B3/B4/B5/B7/B8/B28, TDD: B40
WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8
TC68L-J:
FDD: B1/B3/B8/B18/B19/B26
WiFi version band:
TC68L-E:
FDD: B1/B3/B5/B7/B8/B20, WCDMA: B1/B5/B8, GSM: B3/B8
TC68L-A:
FDD: B2/B4/B12, WCDMA: B2/B4/B5
TC68L-AU:
FDD: B1/B2/B3/B4/B5/B7/B8/B28, TDD: B40
WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8
TC68L-J:
FDD: B1/B3/B8/B18/B19/B26, TDD: B41, WCDMA: B1/B6/B8/B19

ACCESSORIES

TC68 Series Tracker CD download card

OPTIONAL ACCESSORIES

OBD extension cord Standard USB data cable Velcro
200mAh battery

CERTIFICATE

CE, CITC
