Meitrack MD500S
Mini 4CH AI Mobile DVR

The MD500S is a 4-channel MDVR featuring high stability and supporting ADAS, DMS, video recording, and GNSS tracking. Adopting the high-performance processor and Android operating system, it is a core product of intelligent vehicle video surveillance solutions that uses H.264 video compression or decompression, GNSS positioning, and wireless data transmission technologies.

Download MD500S Flyer>>
Download MD500S CD>>

FEATURES

ALL-IN-ONE AI MDVR
Equipped with advanced algorithm, ADAS and DMS can be realized based on GNSS tracking and video surveillance.

HIGH STABILITY
Independent 4G communication. The tracker and peripherals can work properly no matter when the ACC is on or off.

VIDEO RECORDING
Up to 4-channel 720P live video recording, support OSD overlay for video recording.

MULTIFUNCTIONAL PLATFORM
The MS03 platform can manage the location data, remotely view the live videos, view the alert videos for specific events and read the reports.

CONFIGURATION VIA WIFI
The user can initial the device, calibrate the cameras and configure the parameters on the MTViewer Ai APP via WiFi.

COMMUNICATION
Support GPS/ GLONASS/ Beidou/ 3G/ 4G/ Bluetooth/ WiFi communication.

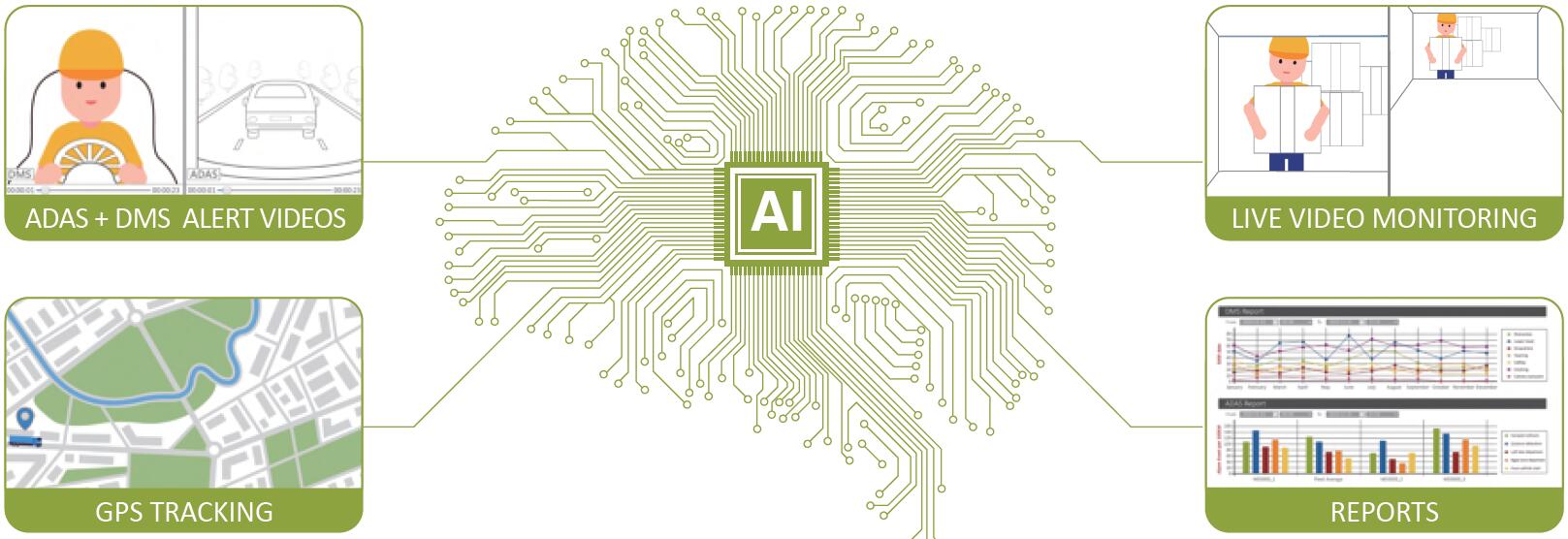

INTELLIGENT AHD MDVR INTEGRATED WITH ADAS AND DMS

AI MOBILE DVR-1

APPLICATIONS

SPECIFICATIONS

	Dimension		120 mm x 70 mm x 25 mm
	Weight		300g
	Power input		DC: 11–36V. Rated input: 12 V/2 A
	Power consumption		Static working mode: 65 mA Normal working mode: 600 mA (Maximum: 1100 mA) Sleep mode: 15 mA
	Operating temperature		-20°C to 70°C
	Sensor		Built-in 3-axis accelerometer
	I/O port		4 x AV-IN, 4 x Din, 2 x Dout, 2 x AD, 1 x 1-wire, 1 x RS232, 1 x CAN, 1 x AUDIO
	Storage medium		Up to 256 GB (a class 10 or above micro SD card)
	Operating system		Android
	Audio interface		3.5 mm audio interface, connected to the speaker or microphone.
	Video input		Support 1-channel DMS, 1-channel ADAS, and 2-channel 720p cameras Voltage output: 5 V/0.5 A
	Resolution		Storage stream: D1 (704576), WD1 (960576), and 720p (1280720) Live stream: CIF (352288) and D1 (704*576)
	Video compression		H.264 (Support RTMP and AVMSG video streams)
	Audio input		4-channel camera Mic input 1-channel 3.5 mm headphone jack input
	Audio output		1-channel 3.5 mm headphone jack output
	Audio compression		ACC
	Video search and playback		Based on the channel, recording type, bit rate type, or time
	Recording method		General recording/alert video
	WiFi		Internal WiFi module. Support WiFi 802.11a/802.11b/802.11g/802.11n/802.11ac. Frequency: 2.4 GHz or 5 GHz. Support AP/STA mode.
	Bluetooth		Internal Bluetooth module. Support BT2.1 + EDR/3.0/4.1 LE/4.2BLE
	GNSS		GPS/BeiDou/GLONASS
	2G/3G/4G		MD500S LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: B38/B40 WCDMA: B1/B8 GSM: 900/1800MHz MD500-E GSM: 900/1800 MHz WCDMA: B1/B2/B4/B5/B8 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B39/B40/B41 MD500S-A WCDMA: B2/B4/B5 LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE TDD: B41 MD500S-J WCDMA: B1/B6/B8/B19 LTE FDD: B1/B3/B5/B8/B11/B18/B19/B21/B26/B28 LTE TDD: B41 MD500S-W Only the GNSS, WiFi and Bluetooth functions are supported, and LTE is not supported.

ACCESSORIES

MD500S MDVR	I/O cable	A57 speaker
A58 microphone	Audio cable	GPS antenna
4G antenna	WiFi antenna	CD download card

OPTIONAL ACCESSORIES

Camera of the ADAS	Camera of the DMS	AHD 720P camera
A61 temperature sensor box	A52 digital temperature sensor	A53 fuel level sensor
USB cable	Relay	iButton reader
Bluetooth ultrasonic fuel level sensor
