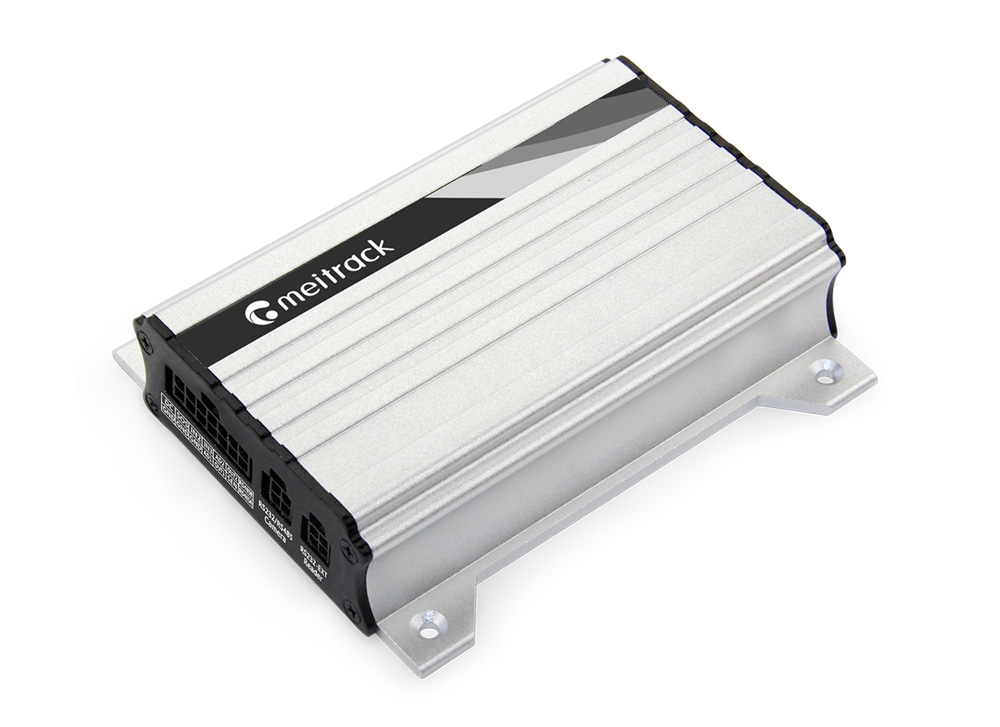

Meitrack T622 Series
Advanced Auto GPS Tracker
Advanced Auto GPS Tracker
The T622 Series has two versions running on WCDMA(Iridium optional) and LTE Cat M1/Cat NB2 networks respectively with precise positioning. In addition to real-time tracking, it supports various peripherals and can be installed into taxies, freight cars, and buses.
FEATURES
![Smiley face](http://www.meitrack.com/wp-content/uploads/2016/08/NETW.png)
3G/4G network
Has two versions running on WCDMA (Iridium optional) and LTE Cat M1/Cat NB2 networks respectively.
Has two versions running on WCDMA (Iridium optional) and LTE Cat M1/Cat NB2 networks respectively.
![Smiley face](http://www.meitrack.com/wp-content/uploads/2018/06/mobileye2.png)
Mobileye Fleet Safety
Compatible with Mobileye collision avoidance system to keep your drivers and assets safe.
Compatible with Mobileye collision avoidance system to keep your drivers and assets safe.
![1](http://www.meitrack.com/wp-content/uploads/2018/06/mobileye.png)
Garmin Fleet Tracking
Streamline dispatching with Garmin intergration to further improve business efficiencies.
Streamline dispatching with Garmin intergration to further improve business efficiencies.
![screen](http://www.meitrack.com/wp-content/uploads/2018/06/io.png)
Multi-functional
Support CAN bus, camera, LED display, fuel/temperature sensor, iButton.
Support CAN bus, camera, LED display, fuel/temperature sensor, iButton.
APPLICATIONS
SPECIFICATIONS
Dimension | 105 mm x 65 mm x 26 mm | ||
Weight | 190g | ||
Power supply | DC 11.4–36 V/1.5 A | ||
Backup battery | 400 mAh/3.7V | ||
Power consumption | Current in sleep mode: 11 mA | ||
Operating temperature | -10°C to 55°C | ||
Operating humidity | 5% to 95% | ||
Working hour | 45 hours in power-saving mode 4 hours in normal mode |
||
LED indicator | Green indicator showing the GSM signal Blue indicator showing the GPS signal |
||
Button/Switch | 1 power button | ||
Sensor | 3-axis accelerometer (used to wake the device up by vibration and detect towing alerts) | ||
Memory | 8 MB buffer | ||
GNSS | GPS | ||
Frequency band | T622G: UMTS/HSDPA: 800/850/900/1900/2100 MHz GSM/GPRS: 850/900/1800/1900 MHz T622G_F9: UMTS/HSDPA: 800/850/900/1900/2100 MHz GSM/GPRS: 850/900/1800/1900 MHz Iridium satellite: Frequency band: 1616–1626.5 MHz, Duplex mode: TDD, Multiplexing mode: TDMA/FDMA T622E: Cat M: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66//B71/B85 GSM: 850/900/1800/1900MHz |
||
Positioning accuracy | 2.5m |
ACCESSORIES
T622 Series tracker | External GPS antenna | External 3G/4G antenna | |||
External Iridium antenna(T622G_F9) | I/O cable(1 meter, without SOS button) | Micro serial USB cable | |||
CD download card |
OPTIONAL ACCESSORIES
SOS button | Relay (12 V/24 V) | RFID reader | |||
Garmin navigator | Camera | iButton (T622G & T622E) | |||
A76 ultrasonic fuel level sensor | Liquid level sensor (LLS) sensor | A53 fuel level sensor (T622G & T622E) | |||
A52 digital temperature sensor + A61 sensor box (T622G & T622E) |
CERTIFICATE
CE, TELEC
