FEATURES
Up to 22400 mAh Battery
Solar panels and high-capacity batteries ensure battery life.
Solar panels and high-capacity batteries ensure battery life.
WiFi/BLE Communication

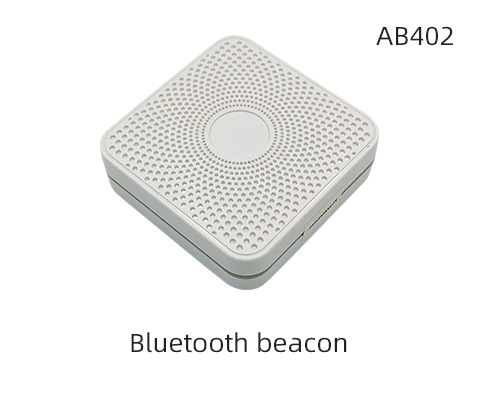

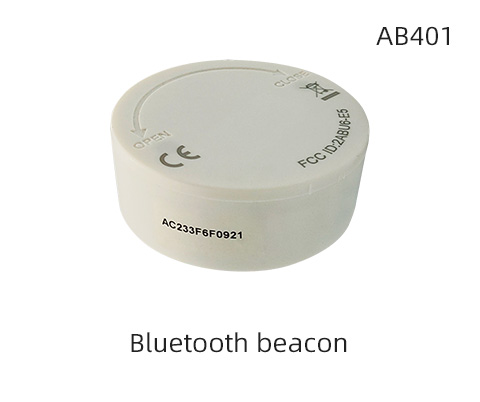

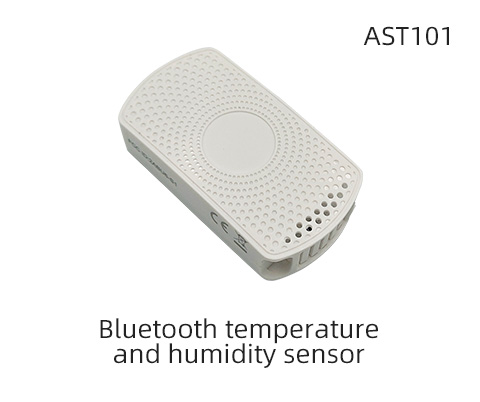

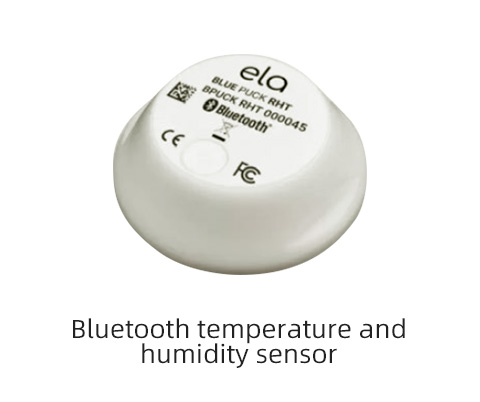

Support WiFi positioning, Bluetooth temperature and humidity sensor and beacons.
Support WiFi positioning, Bluetooth temperature and humidity sensor and beacons.

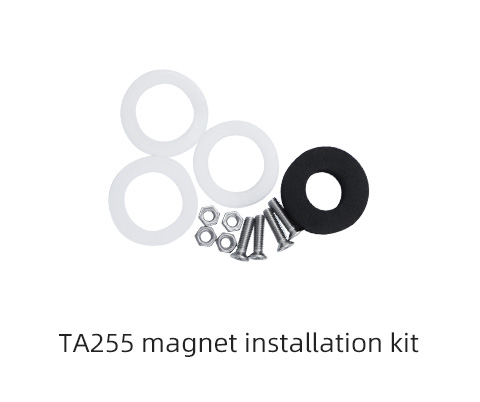

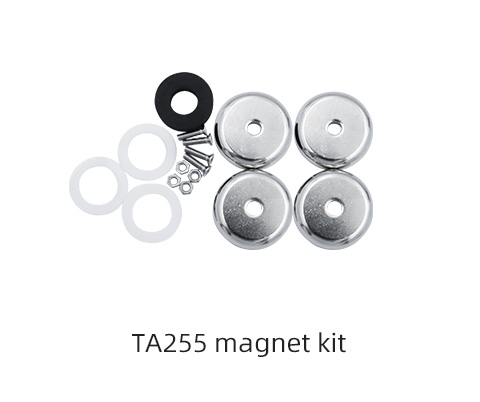

Magnetic Installation
Industrial magnets which facilitates it attach to flat metal surface.
Industrial magnets which facilitates it attach to flat metal surface.
IP67 Water Resistant
Specialized design guarantees a stable operating performance.
Specialized design guarantees a stable operating performance.
FOTA for Configuration
Automatic firmware and configuration update tool for Meitrack telematics device.
Automatic firmware and configuration update tool for Meitrack telematics device.
VIDEO
DOWNLOAD
SPECIFICATIONS

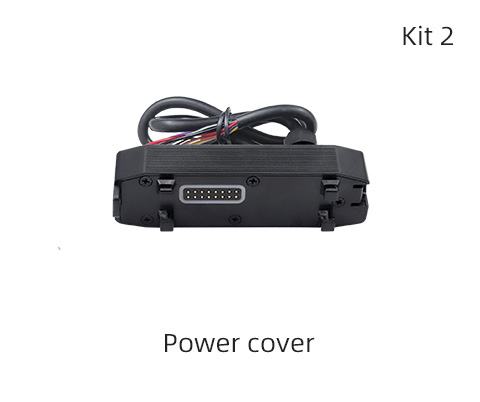

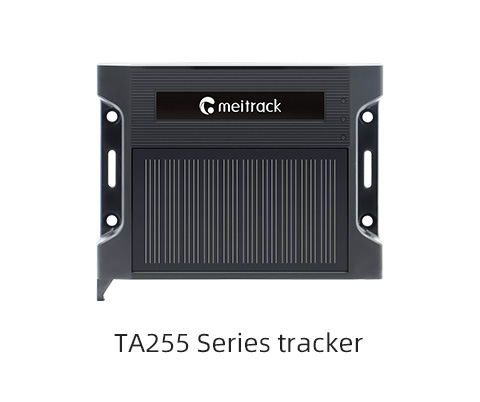

| Dimensions of the tracker (excluding the charging cover) |
71 mm × 95 mm × 27 mm (L × W × H) | ||
| Outer case material | ABS |
| Operating voltage | 3.7V | ||
| Minimum current in sleep mode | 0.29mA | ||

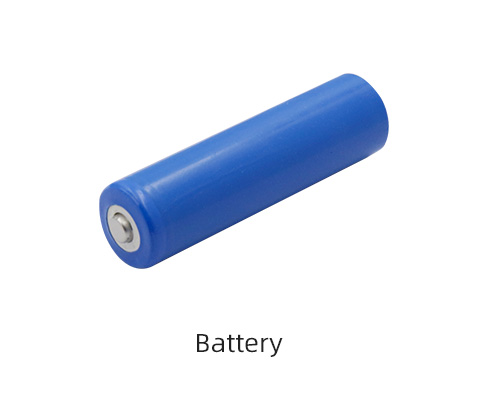

| Built-in battery (optional) | 3200 mAh/3.7V | ||

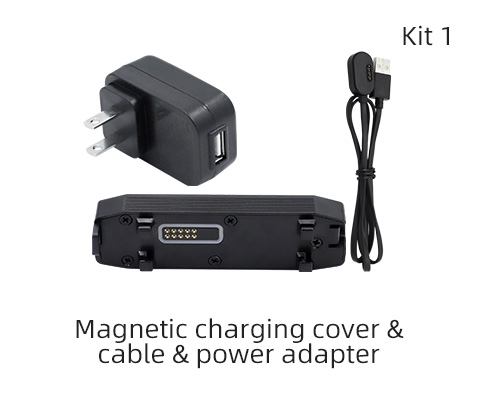

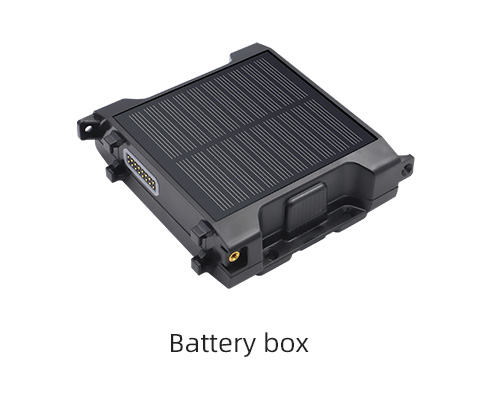

| Charging voltage | Magnetic charging: 5.5 V/2 A Charging by using a battery box (I/O cable): 11.4–60 V |
||
| Solar charging current | Charging the tracker by using a solar panel: MAX 70 mA Charging a battery box by using a solar panel: MAX 100 mA |
| TA255E | EGPRS: 850/900/1800/1900Mhz Cat M1/Cat NB2: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14 (Cat M1 only) / B18/B19/B20/B25/B26/B27 (Cat M1 only) / B28/B66/B71 (Cat NB2 only) /B85 |
||
| TA255L-E | GSM:850/900/1800/1900MHz LTE-FDD:B1/B3/B5/B7/B8/B20/ B28 |
||
| TA255L-AU | GSM:850/900/1800/1900MHz LTE-FDD:B2/B3/B4/B5/B7/B8/B28/ B66 |
| GPS mode | Support GPS, BD and Glonass; support dual-mode combination configuration Support LBS+WIFI assisted positioning |
||
| Positioning accuracy | 2.5M | ||
| Tracking sensitivity | -162dBm | ||
| GSM/GPS antenna | GSM (internal FPC antenna), GPS (internal ceramic antenna) |
Compliant with Bluetooth 5.0/4.2
802.11 b/g/n. Frequency: 2.4 GHz. STA mode supported
| LED indicator | Green LED indicator showing the GSM signal Blue LED indicator showing the GPS signal Red LED indicator showing the charging status |
||
| Dual sim card | Dual card single waiting, Nano-sim and E-sim (reserved) | ||
| USB | Micro-USB | ||
| Memory | 8 MB flash |
| Sensor | 3-axis accelerometer (used to determine whether the tracker vibrates, is moving, or stops moving) Drop detection sensor |
||
| Scenarios | Installation alert or drop alert Solar charger Attachable battery box Round or polygonal geo-fence alert Low power alert for a battery box Cornering report Speeding alert Heartbeat report Impact detection Harsh cornering detection Harsh acceleration and braking detection Real-time location query, tracking by time interval, or tracking by distance |
||
| .Time Synchronization | GNSS , NITZ | ||
| Firmware update | FOTA, USB upgraded | ||
| Configuration | Meitrack Manager (USB), MT Manager+ APP (Bluetooth), MS03 Platform, FOTA, SMS |
| Operating temperature（built-in battery） | -20℃~60℃ | ||
| Storage temperature (exclude battery) | -40℃-80℃ | ||
| Water resistance rating | IP67 |
CE, IP67
