MDVR

FEATURES

Smiley face
DUAL SYSTEMS: MDVR+TRACKER
Remain the advantages of GPS tracking, and add DVR functions to meet more demands of applications.
Smiley face
HIGH STABILITY
Independent 4G communication. The tracker and peripherals can work properly no matter when the ACC is on or off.
1
ALL-IN-ONE PLATFORM
The MS03 platform that integrates video surveillance with GPS tracking.
screen
VIDEO RECORDING
4-channel 720P live video recording, support OSD overlay for video recording.
1
VIDEO MANAGEMENT
Support video searching, playback and downloading via the platform.
screen
COMMUNICATION
Support GPS/ GLONASS/ BeiDou/ 3G/ 4G/ WiFi communication.

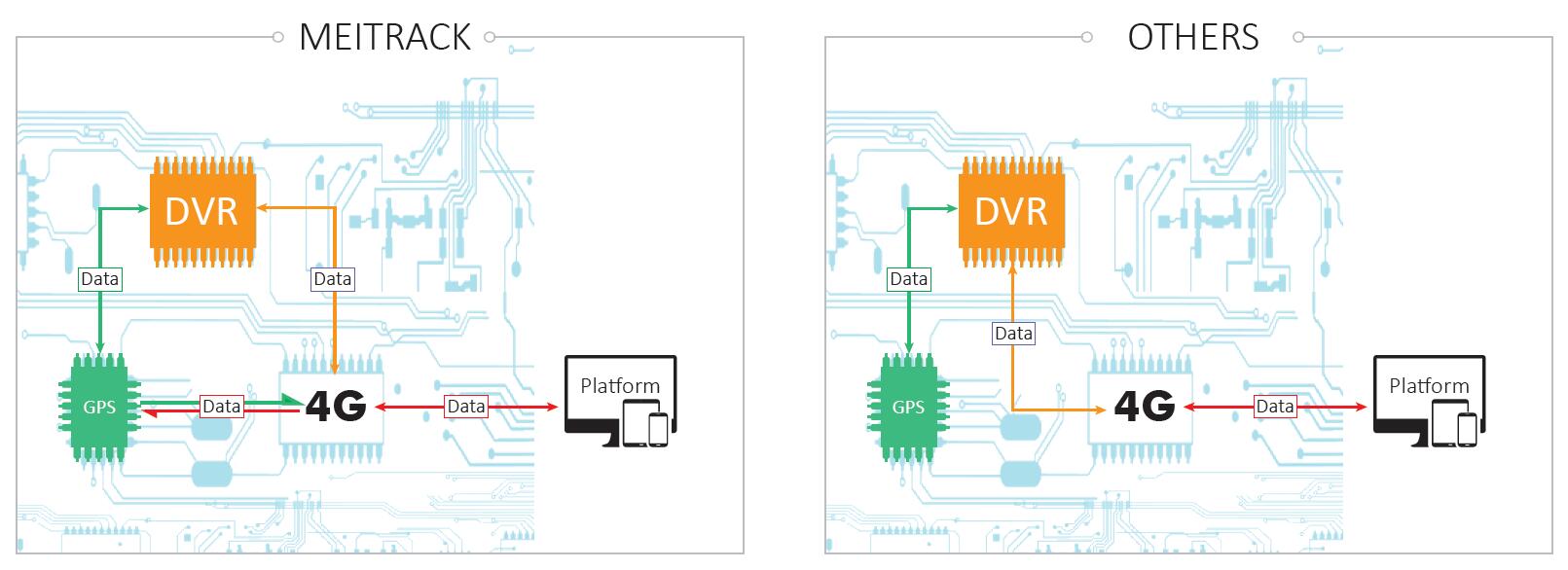

WORKING PRINCIPLES: MEITRACK VS OTHER MANUFACTURERS

APPLICATIONS

MDVR INSTALLATION AND FUNCTION TEST IN EXTREME ENVIRONMENTS

SPECIFICATIONS

Dimension 177 mm x 162 mm x 63mm
Weight 1750g (excluding the hard disk)
Power input DC: 8V–36V/A
Power consumption Start the host audio and video: about 6.6 W
Single MCU: 45mA
Connect a camera: 120–200 mA (day); 400–600 mA (night)
Operating temperature -20°C to 70°C
Video input 4-channel 720P@25FPS live video recording
Video output 1-channel CVBS
Compression standard H.264
Image display Support one-image and four-image display
Audio compression G.726
Audio input 5-channel audio input;
4-channel AV-IN interface;
1-channel voice intercom interface; 1-channel handle interface
Audio output 1-channel independent audio DC blocking output (CVBS aviation connector);
1-channel handle interface
Recording search and playback Search and play back videos based on the channel, recording type, or time.
Recording method Simultaneously record the ACC, alert, sound, and video.
 WiFi 802.11 b/g/n; frequency: 2.4 GHz
 GPS/GLONASS Detect the insertion, pull-out, and short circuit of the antenna.
 Storage medium 1 SD card and 1 SATA hard drive/SSD hard drive
 I/O port 4 x AV-IN, 1 x AV-OUT, 9 x Din, 3 x Dout, 2 x AD, 1 x 1-wire, 2 x RS232, 1 x RS485, 1 x CAN, 1 x ETH, 1 x MIC&SPK, 1 x AUDIO
 2G/3G/4G MD511H-E
GSM: B3/B8, WCDMA: B1/B8,
LTE FDD: B1/B3/B7/B8/B20/B28A
MD511H-A
WCDMA: B2/B4/B5, LTE FDD: B2/B4/B12
MD511H-AU
GSM: B2/B3/B5/B8, WCDMA: B1/B2/B4/B5/B8
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD: B40
MD511H-J
WCDMA: B1/B6/B8/B19,
LTE FDD: B1/B3/B8/B18/B19/B26, LTE TDD: B41
MD511H-G
GSM: B2/B3/B5/B8, WCDMA: B1/B2/B4/B5/B8/B19
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B25/B26/B18/B19/B20/B28
LTE TDD: B38/B39/B40/B41

ACCESSORIES

MD511H MDVR Power & ACC cable I/O cable
USB cable GPS antenna 3G/4G antenna
WiFi antenna Hard disk lock key CD download card

OPTIONAL ACCESSORIES

Cameras(different types) SD card SSD/HDD (2.5 inches)
Display Microphone & speaker Ultrasonic fuel level sensor
RFID reader LED display

CERTIFICATE

CE
