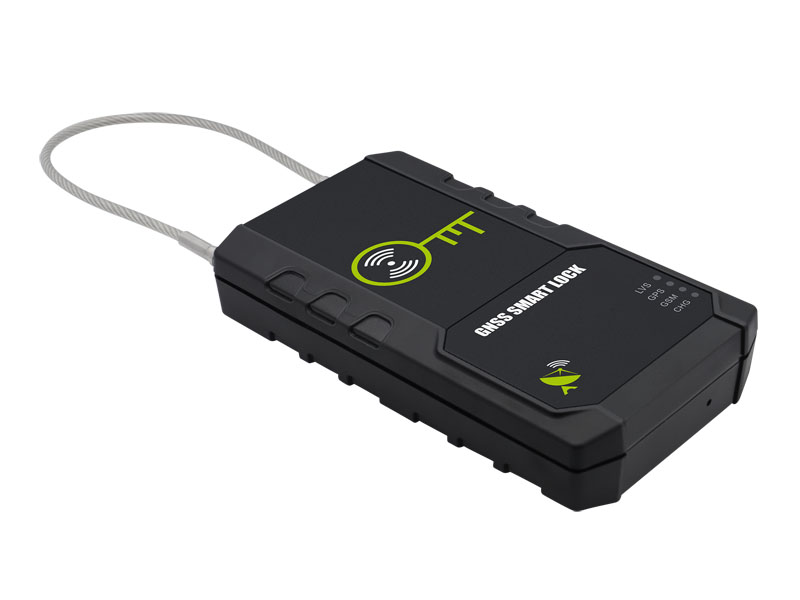

Meitrack K211 Series
4G/Lora GNSS Smart Lock
4G/Lora GNSS Smart Lock
The K211 Series is a smart lock that supports Long Range (LoRa) and GPRS communication. Its main functions include real-time lock status monitoring, anti-tamper alert, anti-cut alert, swiping an RFID card to lock or unlock the device, and super long standby time. There is no button on the outer case of the device, and the IP67 water resistance rating makes the device withstand harsh environments. It is specially designed for door lock management in various land and sea transportation such as box trucks, trailers and containers.
FEATURES
Built-in LoRa (optional)
Enable the K211 Series and T399L to communicate with each other, making the smart logistics network a reality.
Enable the K211 Series and T399L to communicate with each other, making the smart logistics network a reality.
IP67 water resistant
Hard and rugged enclosure guarantees it complete shockproof and durable.
Hard and rugged enclosure guarantees it complete shockproof and durable.
Locking or Unlocking by RFID
When you swipe the authorized RFID card, the K211 Series can be locked or unlocked.
When you swipe the authorized RFID card, the K211 Series can be locked or unlocked.
78 days of battery life
Internal 14000 mAh battery, support interactive working mode by LoRa.
Internal 14000 mAh battery, support interactive working mode by LoRa.
APPLICATIONS
SPECIFICATIONS
| Dimension | 112 mm x 195 mm x 37 mm | ||
| Weight | 800g | ||
| Lock rope length | 300 mm (The length can be customized as needed.) | ||
| Power supply | DC 9–14 V; 2 A | ||
| Material | The outer case of the device adopts PC materials | ||
| Backup battery | 14000 mAh/3.7 V | ||
| Power consumption | Current in standby (sleep) mode: 9 mA Current in normal working mode: 95 mA |
||
| Charging time | 7.5–8 hours | ||
| Operating temperature | -20°C to 55°C | ||
| Operating humidity | 5%–95 % | ||
| Working hour | Power-saving mode: 78 days Normal working mode: 150 hours |
||
| Charging | Magnetic charging (DC 9 V; 2 A; fast charging) | ||
| Water resistance rating | IP67 | ||
| Frequency band | K211L-ER: LTE-FDD: B1/B3/5/B7/B8/B20/B28 GSM: 850/900/1800/1900 MHz |
||
| K211L-AUR: LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 GSM: 850/900/1800/1900 |
|||
| K211E: LTE Cat M1/NB2: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85 GSM: 850/900/1800/1900 MHz |
|||
| GPS antenna | Built-in GPS antenna | ||
| GPS sensitivity | -161 dB | ||
| Positioning accuracy | 2.5 meters | ||
| LoRa communication distance (optional) | At most 20 meters (obtained from actual tests in trucks’ containers) | ||
| LoRa working frequency (optional) | 137–1020 MHz (433 MHz by default) | ||
| LoRa antenna (optional) | Built-in spring antenna | ||
| RFID module frequency | 125 KHz | ||
| Memory | 64 MB | ||
| SIM card installation | Flip the card slot cover to install Micro SIM cards; dual SIM cards |
ACCESSORIES
| GNSS smart lock with the battery | Lock rope (30 cm) | RFID card | |||
| Power adapter (9V) | Magnetic USB charging cable | USB cable (optional) | |||
| CD download card |
CERTIFICATE
CE
