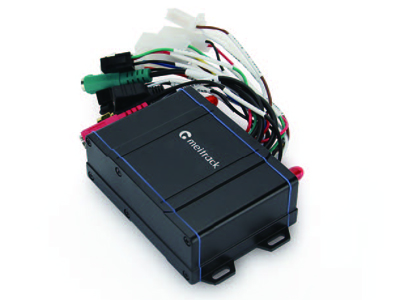

Meitrack MVT800
Vehicle GPS Tracker
The MVT800 is a brand new GPS tracker supporting both Meitrack and Meiligao protocols. It supports anti-theft of private cars and official cars.
Download MVT800 Flyer>>
Download MVT800 CD>>
FEATURES



Anti-theft
An alarm along with the remote fuel/power cut-off feature can protect your vehicle from theft.
mt90-ip65 IP65 Water resistant
The best well rounded water resistant trackers for large vehicles.
1-wire
Support the 1-Wire technology and can connect to the digital temperature sensor.
Multiple alarms & reports Multiple alarms & reports
Support speeding/SOS/towing/lower power alarms, mileage report etc.



APPLICATIONS

MVT800-1

SPECIFICATIONS



Dimension 90 mm x 65 mm x 32 mm Weight 220g
Input voltage DC 11 V to 36 V/1.5 A  Backup battery 400 mAh/3.7 V
Power consumption Current in standby mode: 85 mA Positioning accuracy 2.5m
Operating temperature -20°C to 55°C Operating humidity 5% to 95%
Working hour 80 hours in power-saving mode and 5.7 hours in normal mode LED indicator 2 indicators showing GSM and GPS status
Button/Switch 1 SOS button (for sending SMSs or dialing)
1 power button
Frequency band GSM 850/900/1800/1900 MHz
Microphone/Loudspeaker (optional) External Memory 8 MB buffer
Sensor 3-axis accelerometer (used to wake the device up by vibration and detect towing alarms) GPS sensitivity -161 dB
GSM/GPS antenna Connected to the SMA connector I/O port 4 inputs
(1 SOS button, 1 smart positive/negative input,1 door triggering, and 1 ACC detection)
1 speed sensor frequency detection
2 outputs
(1 buzzer and 1 remote fuel cut-off cable)
1 analog detection input
1 USB232 configuration port
1 wireless remote control (433 Mhz) port
1-Wire® temperature sensor



ACCESSORIES



Accessories MVT800 with a built-in battery GPS antenna GSM antenna Power extension cord
I/O cable SOS button USB cable CD download card
Optional Accessories Wireless remote control Buzzer Microphone Loudspeaker
Fuel level sensor RF antenna Temperature sensor
