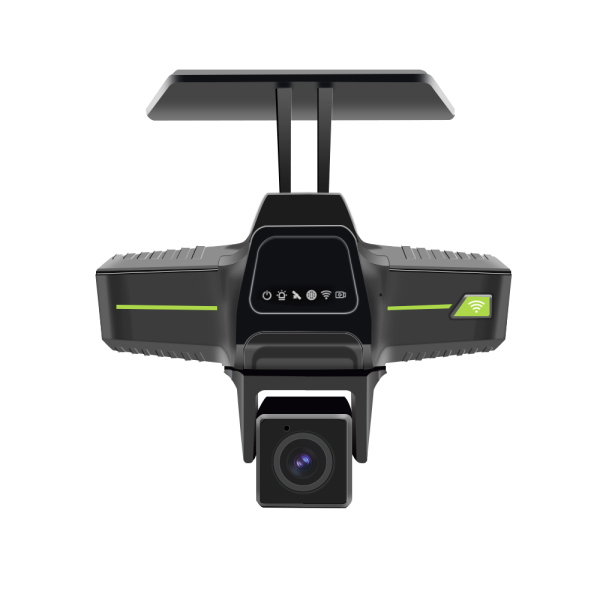

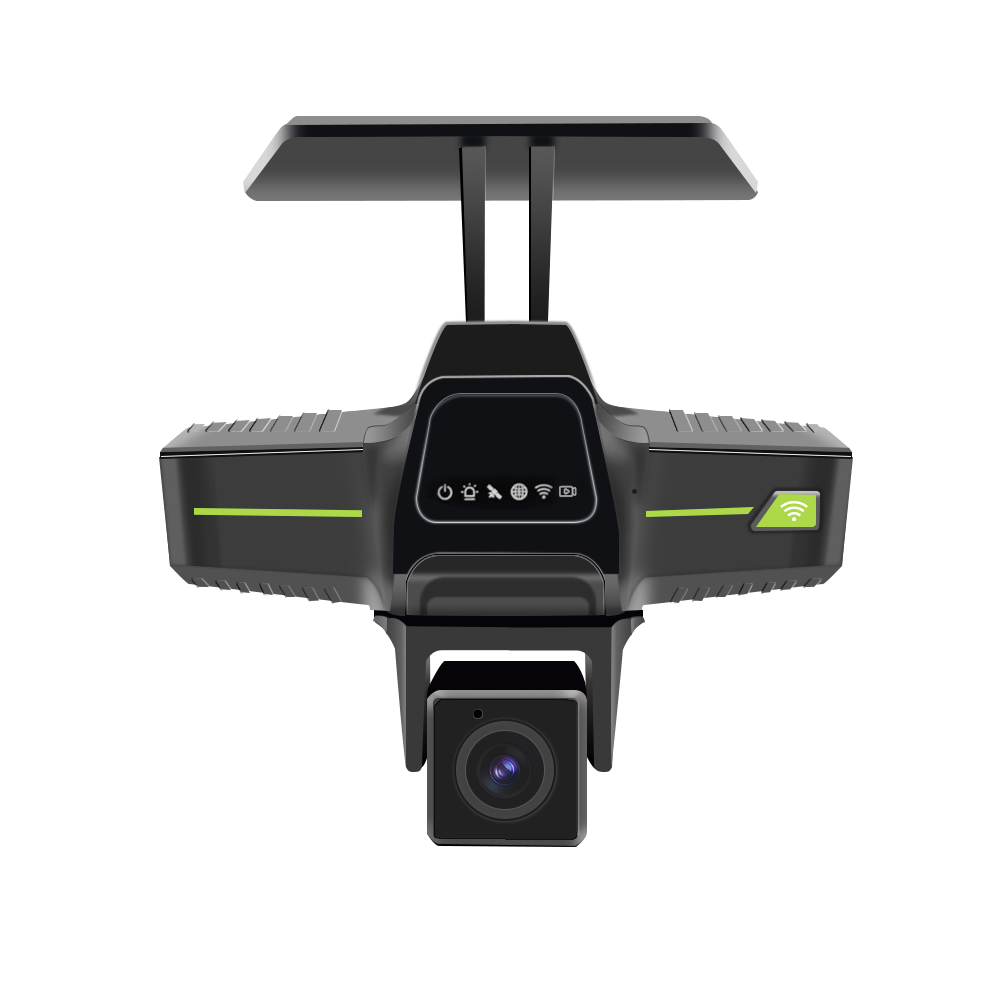

MD300

  • ADAS & DMS (optional)
  • High-quality Audio & Video
  • High-precision Location Information
  • Easy to Install and Integrate
  • 3/4CH (2 external cam)
Add to Wishlist
Category: 4G(LTE CAT 4) 3G 2G Wi-Fi Bluetooth GNSS ADAS DMS FOTA RS232 CAN Bus CE DLT 2K
Trust Badge Image

Features





Specifications

AI

AI Video

ADAS, DMS, Road Sign Recognition (customizable)

Audio and Video

Audio input

1st channel audio input: built-in MIC input (supports intercom, two-way calling, and recording
or listening for channels 1 and 2)
2nd channel audio input supported
3rd channel AHD camera audio input requires camera support (for recording or listening)

Audio output

1 channel built-in speaker output,
1 channel external display screen with built-in speaker output

Audio compression

G.726/G.711a/AAC

Recording method

Regular recording and AI alarm recording; synchronized audio and video recording

Video input

Option 1: MAX 4 channels, built-in 2K ADAS + built-in 1080P DMS + external 2 channels 720P AHD
cameras (optional)
Option 2: MAX 3 channels, built-in 2K ADAS + external 2 channels 720P AHD cameras (optional)

Video output

1 channel CVBS aviation plug output (level: 1.0Vp-p, impedance: 75Ω)

Video search & playback

Search and playback by channel, recording type, bitrate type, or time

Video compression

H.264/H.265 configurable, default H.265

Communication and Positioning

GSM

4G (LTE CAT 4), 3G, 2G

GNSS antenna

GPS/BeiDou/GLONASS

Wi-Fi

802.11b/g/n, frequency 2.4G, supports AP/STA mode, can connect to MM+ APP for parameter
configuration via button press

Bluetooth

Supports master-slave dual mode, can read Bluetooth accessories

Positioning mode

GPS/GPS_BEIDOU/GPS_GLONASS

Power Supply

Rated voltage

DC: 11.4-40V, rated 12V 2A, external power box, available in N1 and N2 versions

Power consumption

Main unit audio and video on with 2 built-in cameras: approx. 6W; with 2 external cameras, during
the day approx. 12.5W (13W with display), at night approx. 14W (14.5W with display).

Hardware

Operation system

Linux

Storage medium

2* Micro SD cards, single card supports up to 1TB, Class 10 and above

Built-in sensor

3-axis accelerometer, supports motion and stationary detection (hardware supports
6-axis sensor)

Operating temperature

-20°C to 70°C (without battery)

Dimensions

117*70*120mm (dual cameras with bracket), 117*70*80mm (single camera without bracket)

Weight

310g (dual cameras without accessories), 265g (single camera without accessories)

Frequency Band

Africa/Europe/Middle East

MD300-E
GSM: B3/B8
WCDMA: B1/B5/B8
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41

Americas

MD300-A
WCDMA: B2/B4/B5
LTE-FDD: B2/B4/B12

Australia

MD300-AU
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B8
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD: B40

Japan

MD300-J
WCDMA: B1/B6/B8/B19
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: B41

Others

Protocol

Meitrack protocol (CCE) + RTMP (audio & video transmission protocol,
also compatible with Meitrack's private audio & video transmission protocol)

Certification

CE, DLT

Interfaces

N1 version interfaces: SOS*1 + ACC*1 + IN/AD/OUT*2 (total 2 multiplexed) + RS232*1 +
CAN*1 + 5V_OUT*1 + DC_IN*1 + GND*1+ 1-Wire*1
N2 version interfaces: SOS*1 + ACC*1 + IN/AD/OUT*6 (total 6 multiplexed) + OUT*1
(independent) + RS232*1 + CAN*2 + 5V_OUT*1 + DC_IN*1 + GND*2 + 12V_OUT*1 +
RS485*1 + 1-Wire*1

Accessories

  • accessories

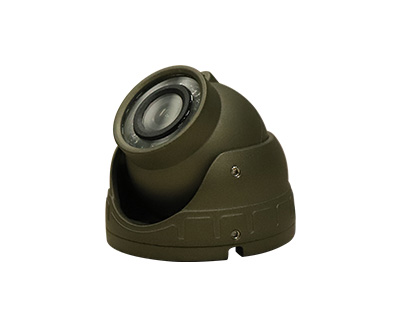

    ACA303 AHD 720P metal small conch Camera

  • accessories

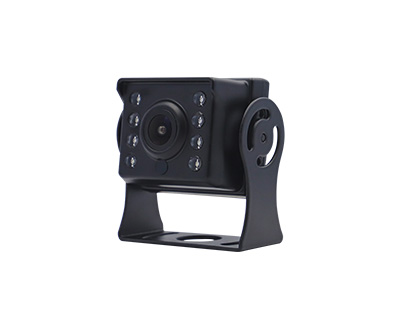

    ACA501 AHD 720P C2 Small Waterproof Camera

  • accessories

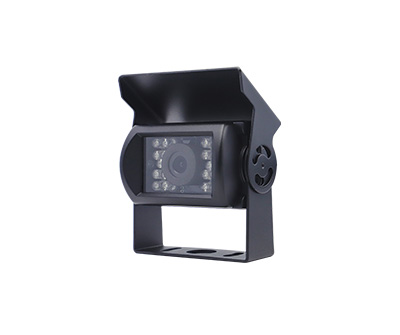

    ACA503 AHD 720P Small Waterproof Camera

  • accessories

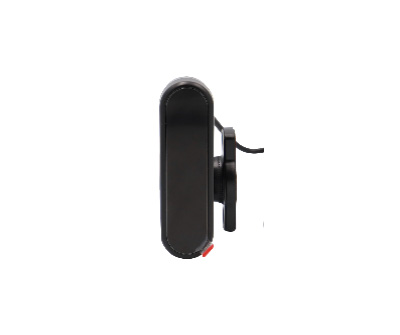

    ACP505 AHD 720P A-pillar DMS Camera

  • a53

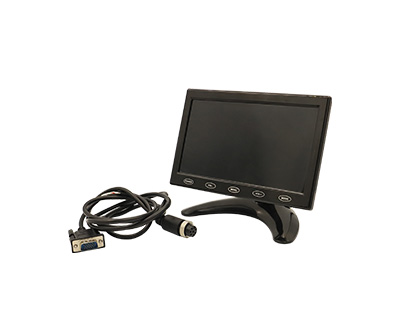

    In-vehicle CVBS Display

  • ultrasonic fuel sensor

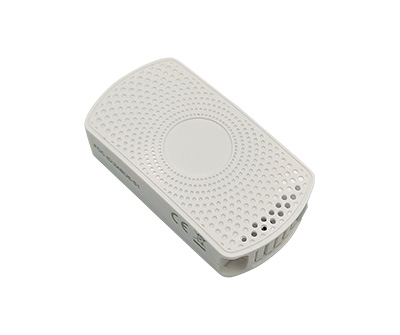

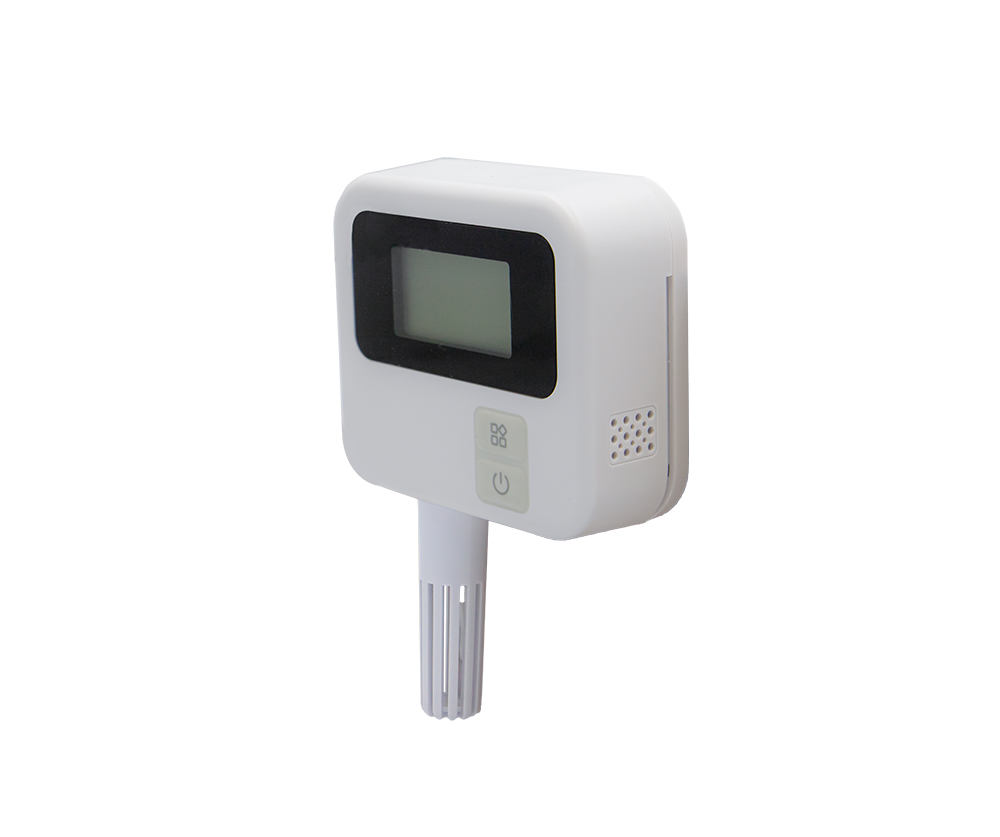

    AST101 Bluetooth Temperature & Humidity Sensor

  • accessories

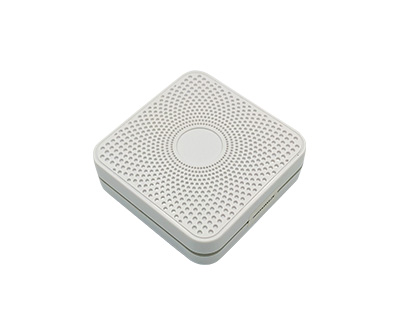

    AB402 Bluetooth Beacon

  • accessories

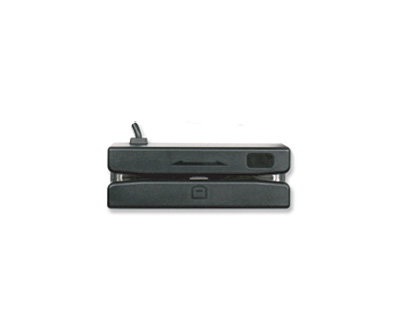

    Magnetic Card Reader (Thailand DLT)
