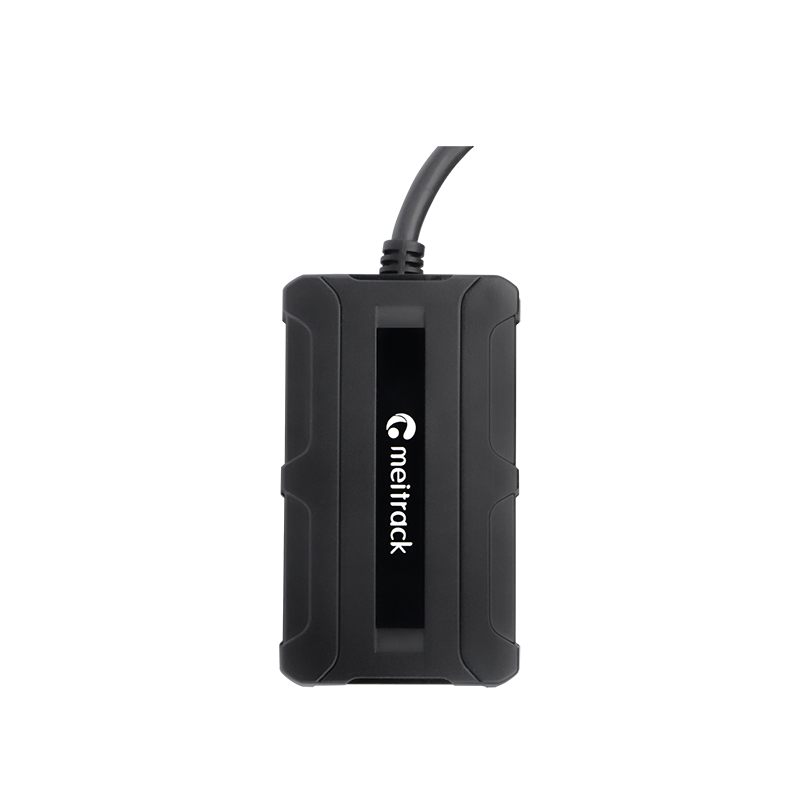

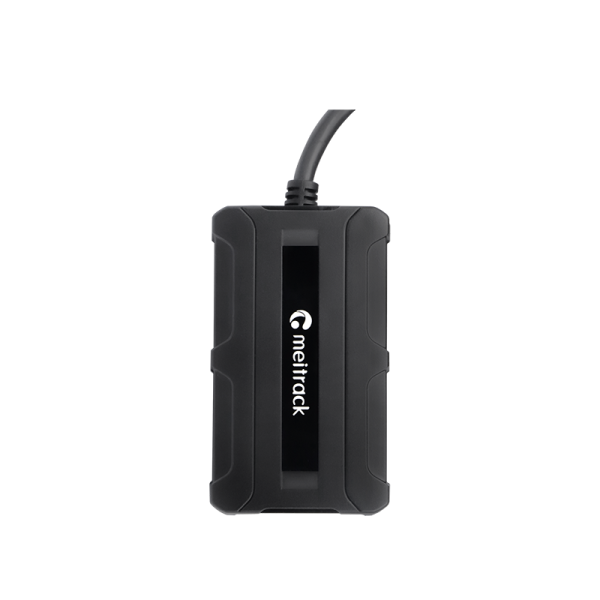

T711L

Affordable
Driver Identification
IP67 Water-Resistant Relay
Driving Behavior Analysis

Category: GNSS Trackers "4G (LTE Cat 1) 2G Bluetooth GNSS FOTA IP67 CE CITC ISO 7637"

Features

Affordable

Competitive price, diversified functions.

Driver Identification

You can easily enable driver identification by connecting an ibutton reader to the 1-wire port.

Full IP67 Immobilizer

This device not only boasts full IP67 protection itself but also includes an IP67-rated relay. Its water-resistant design makes it ideal for use with water vehicles, ensuring reliable protection in any environment.

Driving Behavior Analysis

This system detects various driver behaviors, including idling, harsh acceleration, harsh braking, harsh cornering, collisions, and more.

Specifications

Communication and Positioning
	GSM	4G (LTE Cat 1), 2G
	GNSS antenna	Dual-mode positioning (GPS/BeiDou/GLONASS)
	Wi-Fi positioning	√
	Bluetooth	√
	Positioning accuracy	2.5m
	Sensitivity	-165 dB
Power
	Power supply	DC 11.4–90 V/1.5 A
	Power consumption	Current in standby mode: 65 mA
Physical Specifications
	Dimensions	75 mm x 44 mm x 17 mm
	Weight	77g
Operating Environment
	Operating temperature	-35°C to 80°C (for the device without a battery)
	Operating humidity	5%–95%
	Ingress protection	IP67
Functions
	Memory	8 MB flash
Frequency Bands
	Global	T711L: LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE TDD: B38/B40/B41 GSM: 850/900/1800/1900
Others
	OTA/FOTA	FOTA
	Certification	CE, CITC
Supported Peripherals
	iButton	√
	Relay (12 V/24 V)	√
	Buzzer	√
	BLE temperature & humidity sensor	√
	Fuel level sensor	√
	Digital temperature sensor	√

Accessories

12V/24V relays
Digital temperature sensor
Fuel sensor (voltage AD)

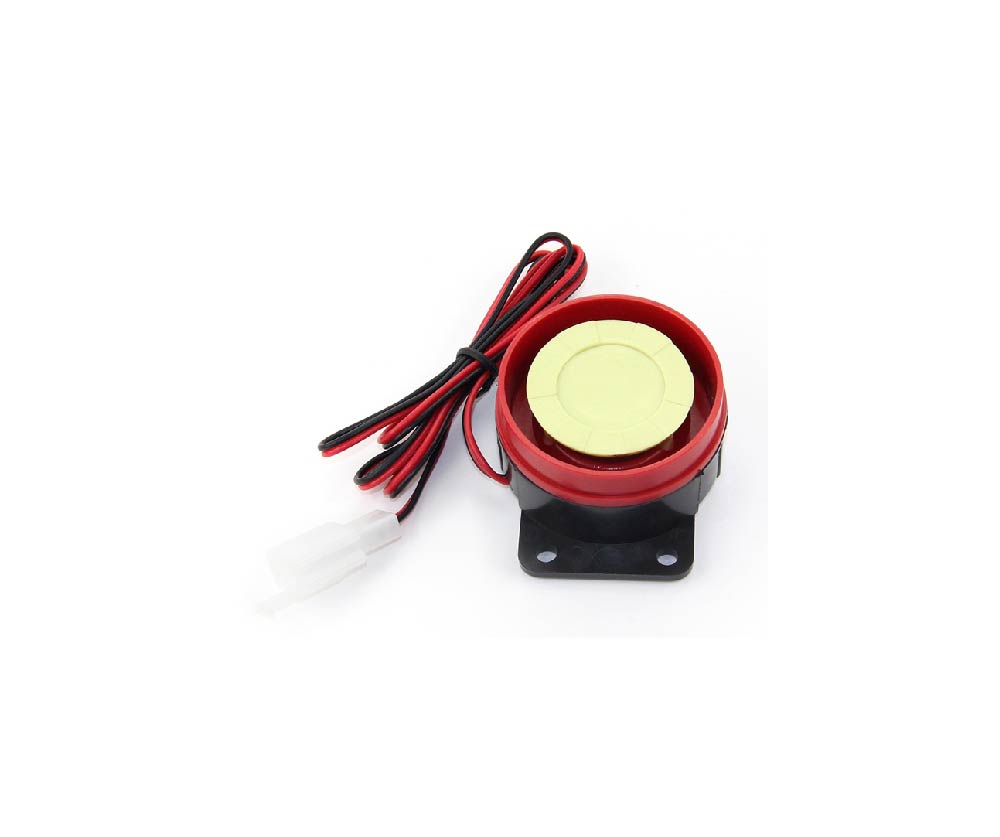

Buzzer

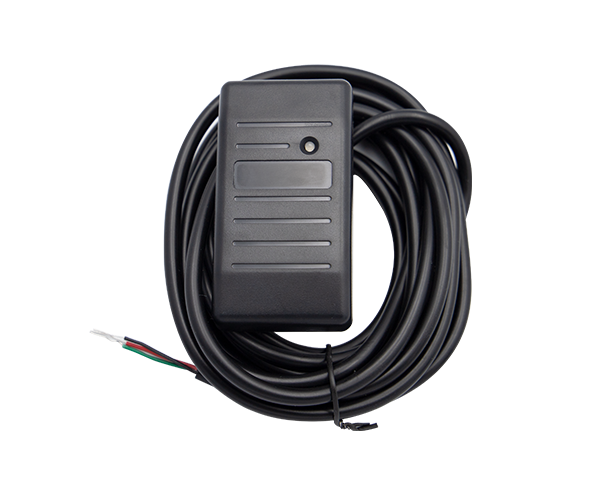

iButton reader
Bluetooth beacon 401
Bluetooth beacon 402
Bluetooth temperature and humidity sensor

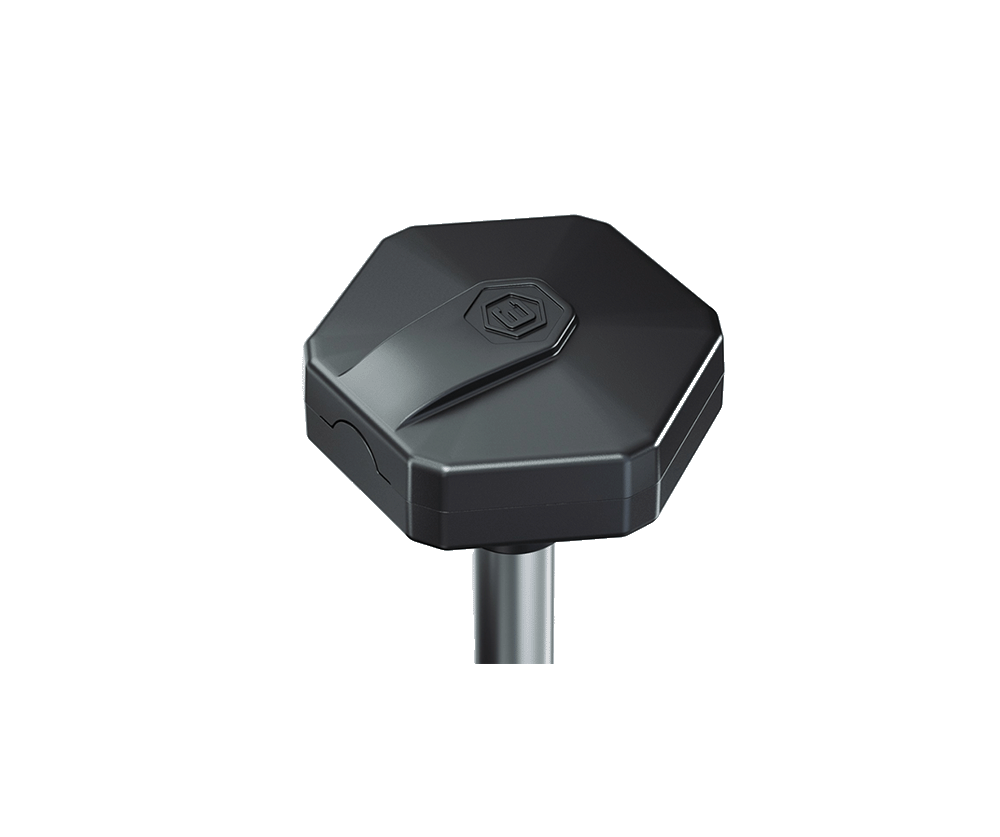

Escort wireless fuel monitoring

Download

Product User Guide
	T711L flyer
	Meitrack T711L User Guide	V1.3	2022-9-21


Meitrack GPRS Protocol for T711L	V1.2	2022-4-15
Meitrack SMS Protocol	V3.0	2022-7-13
Meitrack_GPRS(CCE ID)_Total protocol	V1.0	2025-3-30
Meitrack_GPRS_Total Command	V1.1	2025-5-7


Meitrack Manager (New Version)	V6.0	2024-03-26
Meitrack Manager User Guide (New Version)	V2.0	2023-10-23
FOTA Manager User Guide	V1.3	2021-12-29
OTA User Guide	V1.3	2021-12-29
STM32_USB_Driver		2021-12-29

Meitrack Family GPS Tracking System
	Meitrack MS06 User Guide	V1.0	2025-4-5


Meitrack ASUF103 & ASUF104 Bluetooth Ultrasonic Fuel Level Sensor User Guide	V1.4	2024-3-26
Meitrack iButton User Guide	V1.2	2024-02-04
Meitrack A53 Fuel Level Sensor User Guide	V1.6	2016-12-6
Meitrack A54 CLS Sensor User Guide	V1.5	2024-12-2
Meitrack Temperature Sensor User Guide	V1.4	2022-1-20
Meitrack AB401 & AB402 Bluetooth Beacon User Guide	V1.0	2021-5-14
Meitrack AST101 Bluetooth Temperature and Humidity Sensor User Guide	V1.2	2022-7-22
