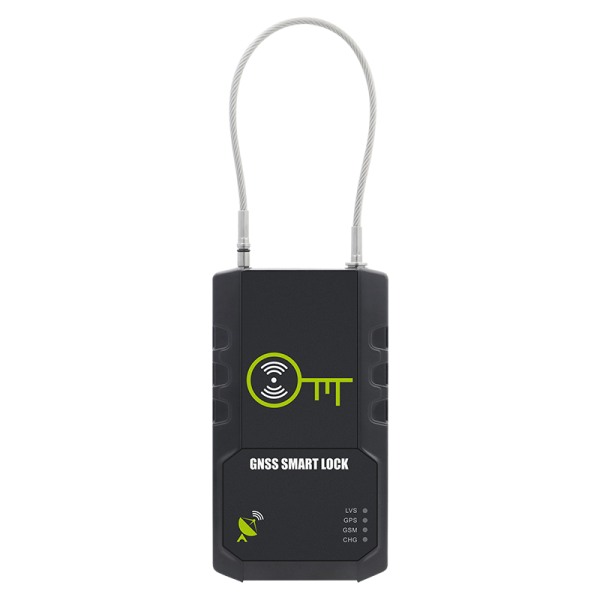

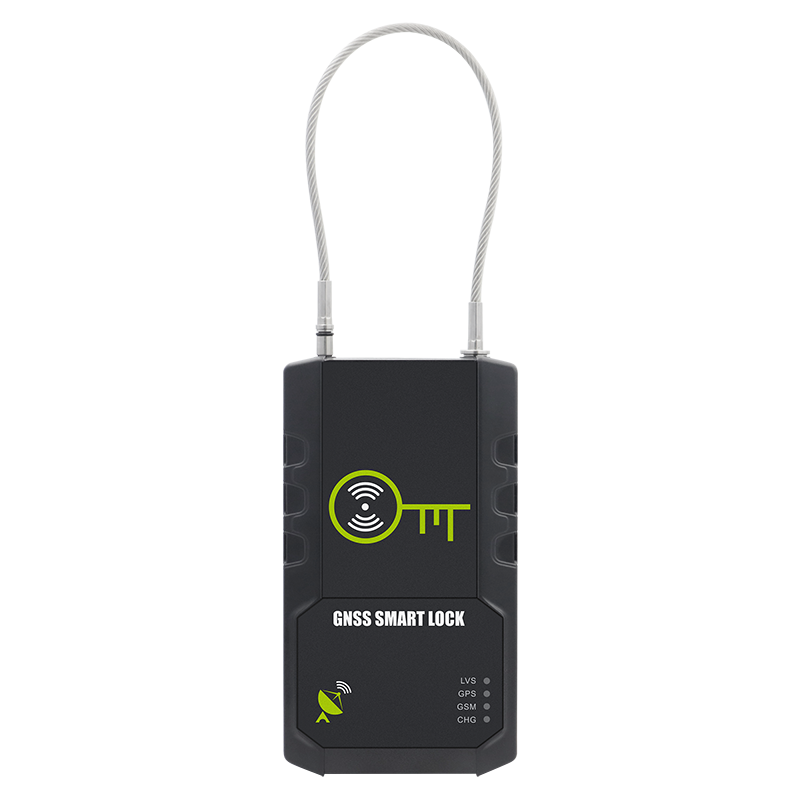

K211L

  • RFID Smart Lock
  • Built-in LoRa (Optional)
  • 78-Day Battery Life
  • Harsh Environment
Add to Wishlist
Trust Badge Image

Features





Specifications

GSM

4G (LTE Cat 1/M1/NB2),2G

GNSS antenna

Built-in GPS antenna

LoRa

LoRa communication distance (optional): At most 20 meters (obtained from actual tests in trucks' containers)
LoRa working frequency (optional): 137–1020 MHz (433 MHz by default)
LoRa antenna (optional): Built-in spring antenna

Positioning accuracy

2.5M

Sensitivity

-161 dB

Power consumption

Current in standby (sleep) mode: 9 mA
Current in normal working mode: 95 mA

Charging

Magnetic charging: 5.5 V/2 A
Charging by using a battery box (I/O cable): 11.4–60 V
Solar charging current: Charging the tracker by using a solar panel: MAX 70 mA
Charging a battery box by using a solar panel: MAX 100 mA

Working hour

Power-saving mode: 78 days
Normal working mode: 150 hours

Dimensions

112 mm x 195 mm x 37 mm

Weight

800g

Operating temperature

-20°C to 55°C

Operating humidity

5%–95 %

Ingress protection

IP67

Memory

64 MB

Europe

K211E:
LTE Cat M1/NB2: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/
B26/B27/B28/B66/B71/B85
GSM: 850/900/1800/1900 MHz

K211L-ER:
LTE-FDD: B1/B3/5/B7/B8/B20/B28
GSM: 850/900/1800/1900 MHz

Australia

K211L-AUR:
LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
GSM: 850/900/1800/1900

OTA/FOTA

×

Certification

CE

RFID

×

iButton

×

Relay (12 V/24 V)

×

Buzzer

×

Microphone & speaker

×

Intercom handle

×

BLE temperature & humidity sensor

×

Ultrasonic fuel level sensor

×

Fuel level sensor

×

Capacitive oil sensor

×

Digital temperature sensor

×

Tire pressure sensor

×

Camera

×

Display

×

Battery

×

Remote control

×

Accessories

  • accessories

    Power & ACC cable

  • accessories

    Power & ACC cable

  • accessories

    Power & ACC cable

  • accessories

    Power & ACC cable

  • accessories

    Power & ACC cable

  • accessories

    Power & ACC cable

Download

Product User Guide

K211 flyer

MEITRACK K211 GPS Smart Lock

V2.5.1.202006011626

2022-11-28

Protocol

Meitrack T366 & T366G & T366L GPRS Protocol

V1.5

2019-7-3

Meitrack SMS Protocol

V3.0

2022-7-18

Aided Software

Meitrack Manager (New Version)

V6.0

2024-03-26

Meitrack Manager User Guide (New Version)

V2.0

2023-10-23

OTA User Guide

V1.3

2021-12-29

USB232_Driver

WIN11 RS232 USB_Driver

Meitrack Family GPS Tracking System

Meitrack MS03 User Guide

V1.0

2022-1-20

Meitrack MS03 for iOS

V3.1

2022-1-20

Meitrack MS03 for Android

V2.5

2022-1-20
