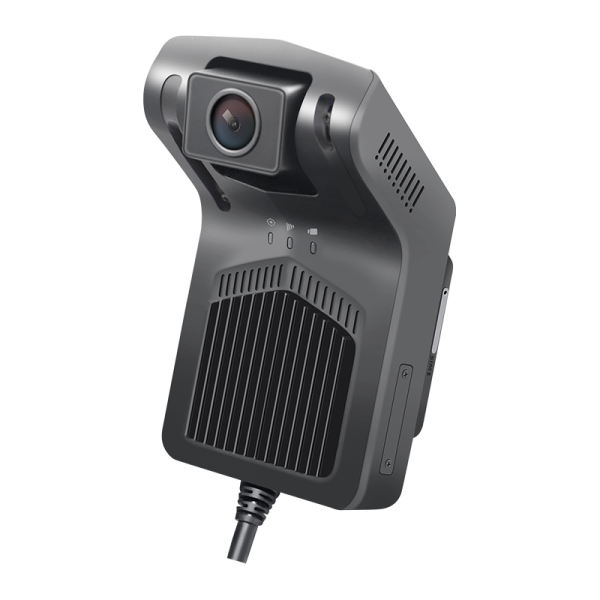

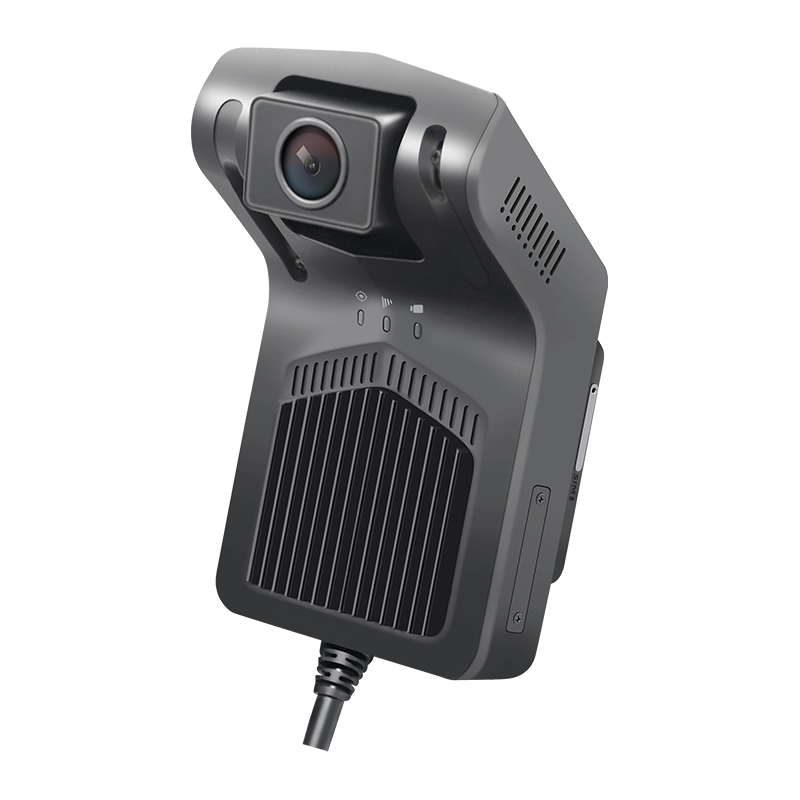

MD101

  • Simple to Install, Easy to Maintain
  • Remote Video & Audio Surveillance
  • Auto Calibration
  • Stable Performance Under High/Low Temperatures
  • 2/3CH(1 external cam)
Add to Wishlist
Category: 4G (LTE Cat 4) 2G Wi-FiGNSS ADAS DMS OTA 1080P
Trust Badge Image

Features

Specifications

AI

AI Video

ADAS, DMS

Audio and Video

Audio input

Built-in MIC, mono

Audio output

Built-in speaker, mono

Audio compression

PCM, WAV

Recording method

Normal recording and alarm recording; audio and video recorded simultaneously

Video input

Built-in ADAS front camera and DMS rear camera

Video output

Resolution default: (supports modification)
Two-channel device:CH1 1080P, CH2 1080P sub-stream 360P
Three-channel device:CH1 720P, CH2 & CH3 720P sub-stream 360P

Video search & playback

Retrievable playback by channel, video type and time

Video compression

H.264/H.265

Communication and Positioning

GSM

4G (LTE Cat 4), 3G, 2G

GNSS antenna

External GPS antenna

WiFi

Internal WiFi module. Only for connecting to APP

Positioning mode

GPS & BD

Positional accuracy

<2.5 m

Sensitivity

-163 dBm

Power Supply

Rated voltage

DC: 9-36V

Power consumption

400-430mA

Hardware

Operation system

Linux

Storage medium

Micro SD Card: Up to 512 GB, class 10 and above, FAT32 format

Built-in sensor

Built-in 3-axis accelerometer

Operating temperature/humidity

-20°C to 70°C (without battery)

Dimensions

116 mm x 66 mm x 38 mm

Weight

198g

Frequency Band

Africa/Europe/Middle East

MD101-E
WCDMA: B1/B5/B8
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B38/B40/B41

Americas

MD101-A
WCDMA: B2/B4/B5
LTE-FDD: B2/B4/B12

Australia

MD101-AU
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE-TDD: B40

Japan

MD101-J
WCDMA: B1/B6/B8/B19
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: B41

Thailand

MD101
WCDMA: B1/B8
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B38/B40

Others

Protocol

JT/T 1078-2016, JT/T808-2019

Certification

CE

Interfaces

4 x Din (ACC/SOS/left-turn signal/right-turn signal)

Download

Product User Guide

MD101 flyer

Meitrack MD101 Product User Guide

V3.3

2024-10-17

Protocol

Meitrack MDVR GPRS Protocol

V1.1

2024-02-20

Meitrack Family GPS Tracking System

Meitrack MS03 for iOS

V3.1

2021-12-29

Meitrack MS03 for Android

V2.5

2021-12-29

Accessories User Guide

ACA105 mini Waterproof Camera (BMW Connector)

V1.0

2024-08-09

ACA701 720P Camera (BMW Connector)

V1.0

2024-08-09

VIDEOS

  • Meitrack AI Dashcam MD101

  • Meitrack AI Dashcam MD101 Quick Start Guide
