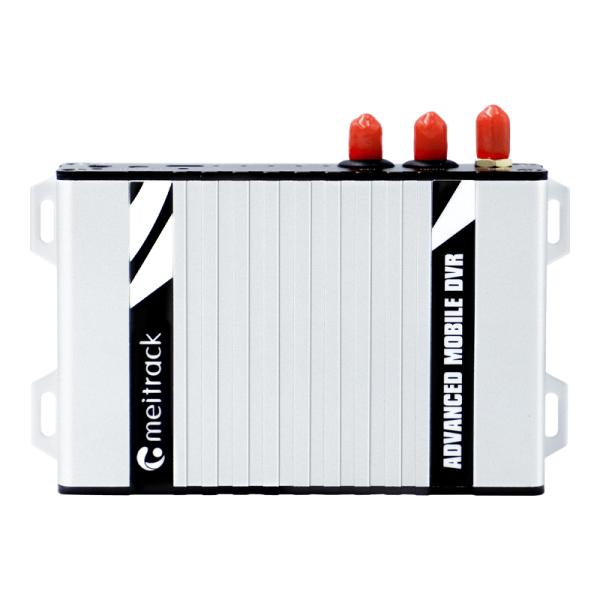

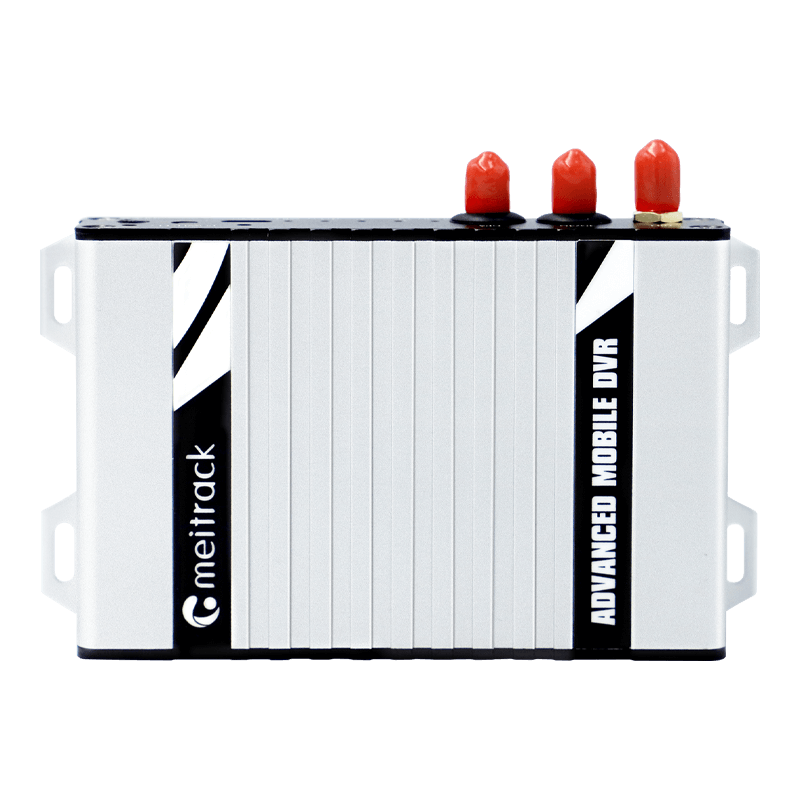

MD500S

  • ADAS & DMS
  • Passenger Flow Monitoring
  • Vehicle Tracking
  • RS232 & CAN Bus
Add to Wishlist
Category: 4G (LTE Cat 6) 2G Wi-Fi Bluetooth GNSS ADAS DMS FOTA RS232 CAN Bus 720P CE ISO 7637
Trust Badge Image

Features





Specifications

AI

AI Video

ADAS, DMS, BSD

Audio and Video

Audio input

4-channel camera Mic input
1-channel 3.5 mm headphone jack input

Audio output

1-channel 3.5 mm headphone jack output

Audio compression

ACC

Recording method

General recording/alert video

Video input

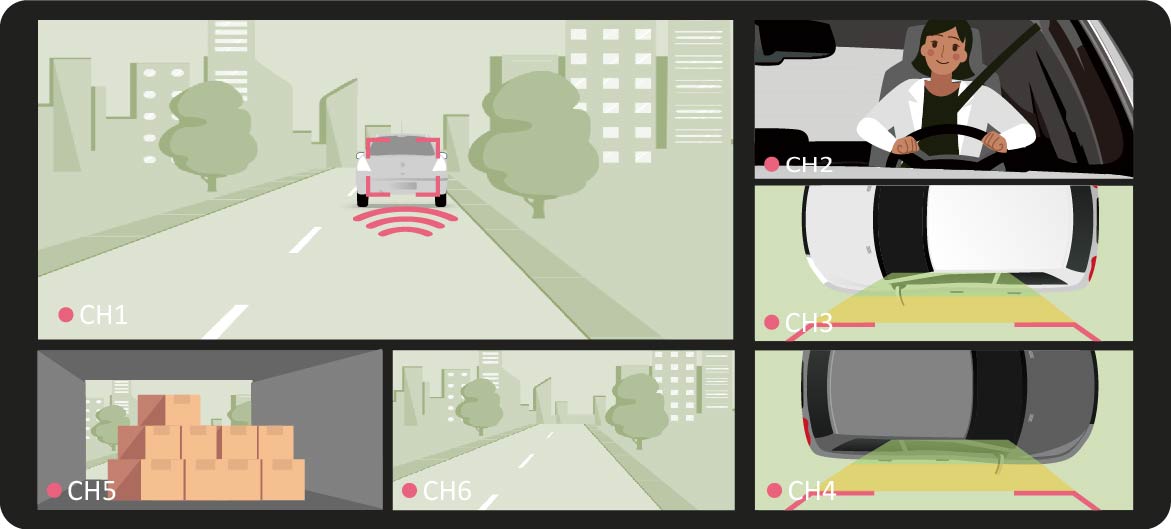

Support 1-channel DMS, 1-channel ADAS, and 2-channel 720p cameras
Voltage output: 5 V/0.5 A

Video output

Storage stream: D1 (704*576), WD1 (960*576), and 720p (1280*720)
Live stream: CIF (352*288) and D1 (704*576)

Video search & playback

Based on the channel, recording type, bit rate type, or time

Video compression

H.264 (Support RTMP and AVMSG video streams)

Communication and Positioning

GSM

4G (LTE Cat 6), 3G, 2G

GNSS antenna

GPS/BeiDou/GLONASS

WiFi

Internal WiFi module. Support WiFi 802.11a/802.11b/802.11g/802.11n/802.11ac.
Frequency: 2.4 GHz or 5 GHz. Support AP/STA mode.

Bluetooth

Internal Bluetooth module. Support BT2.1 + EDR/3.0/4.1 LE/4.2BLE

Positioning mode

GPS/GPS_BEIDOU/GPS_GLONASS

Power Supply

Rated voltage

DC: 11–36 V. Rated input: 12 V/2 A

Power consumption

Static working: 65 mA
Normal working: 600 mA (Maximum: 1100 mA)
Sleep mode: 15 mA

Hardware

Operation system

Android

Storage medium

Micro SD card: Up to 256 GB (a class 10 or above micro SD card)

Built-in sensor

Built-in 3-axis accelerometer

Operating temperature/humidity

-20°C to 70°C (without battery)

Dimensions

120 mm x 70 mm x 25 mm

Weight

300g

Frequency Band

Africa/Europe/Middle East

MD500S-E
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B8
GSM: 850/900/1800/1900MHz

Americas

MD500S-A
LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE TDD: B41 , WCDMA: B2/B4/B5

Japan

MD500S-J
LTE FDD: 1/B3/B5/B8/B11/B18/B19/B21/B26/B28
LTE TDD: B41
WCDMA: B1/B6/B8/B19

Thailand

MD500S
LTE FDD: B1/B3/B7/B8/B20/B28
LTE TDD: B38/B40
WCDMA: B1/B8
GSM: 900/1800MHz

Others

Certification

CE

Interfaces

Audio interface: 3.5 mm audio interface, connected to the speaker or microphone.
I/O port: 4 x AV-IN, 4 x Din, 2 x Dout, 2 x AD, 1 x 1-wire, 1 x RS232, 1 x CAN, 1 x AUDIO

Supported Peripherals

RFID

iButton

Relay (12V/24V)

Ultrasonic fuel level sensor

Fuel level sensor

Digital temperature sensor

Camera

Accessories

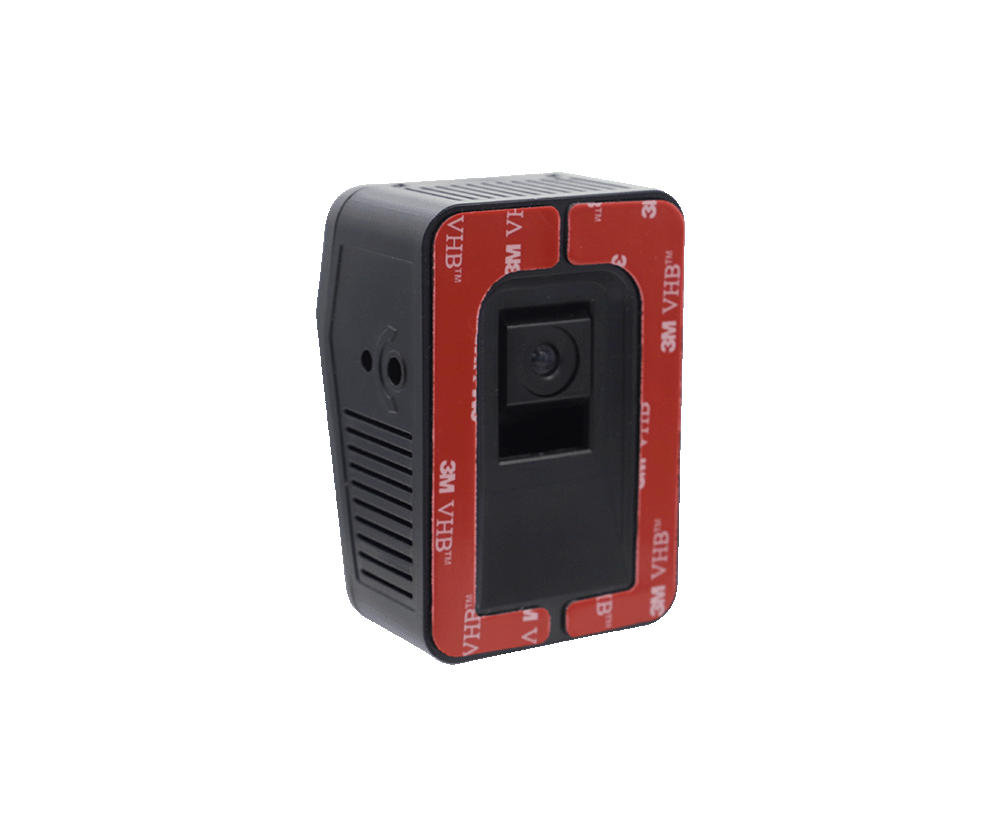

  • adas camera 601

    ACP601 ADAS Camera

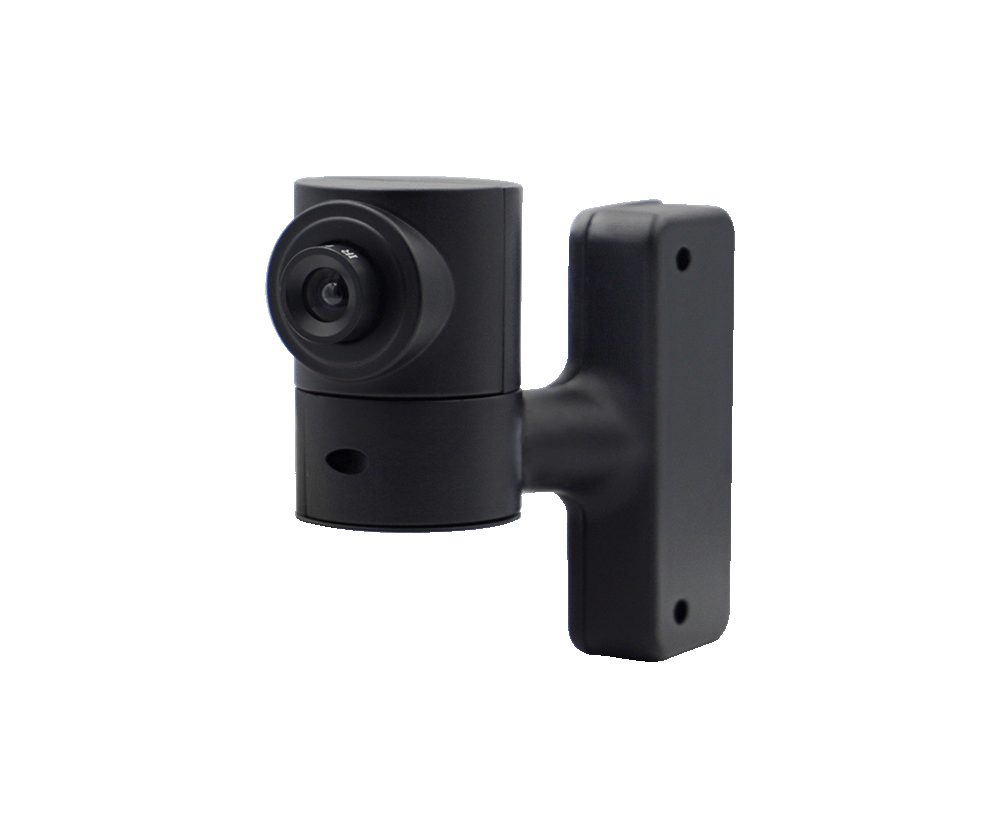

  • adas camera 602

    ACP602 ADAS Camera

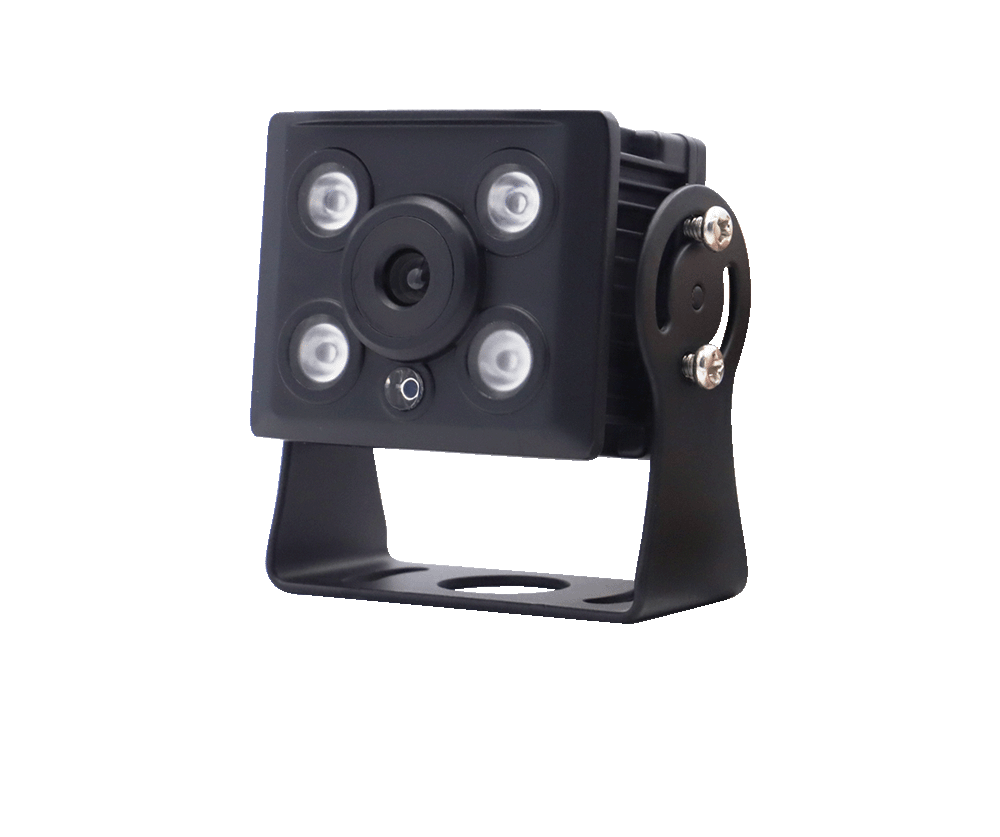

  • dms camera 501

    ACP501 DMS Camera

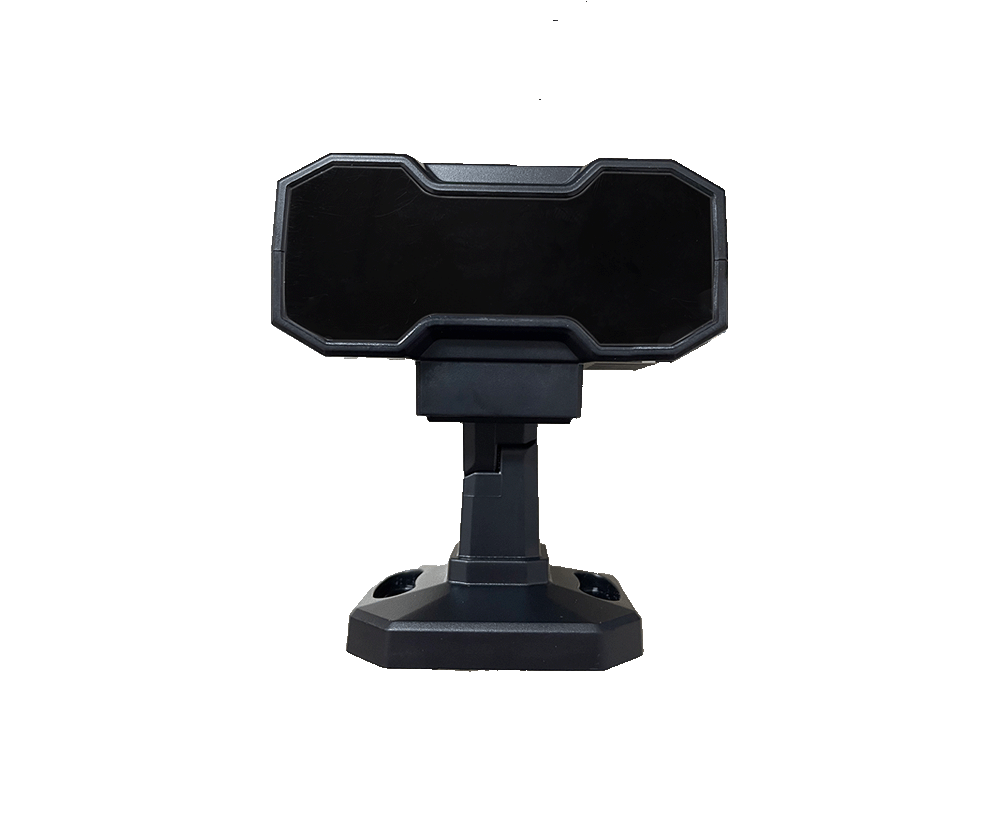

  • dms camera 502

    ACP502 DMS Camera

  • aca333

    ACA303 small metal conch camera

  • a53 fuel level sensor

    Fuel sensor (voltage AD)

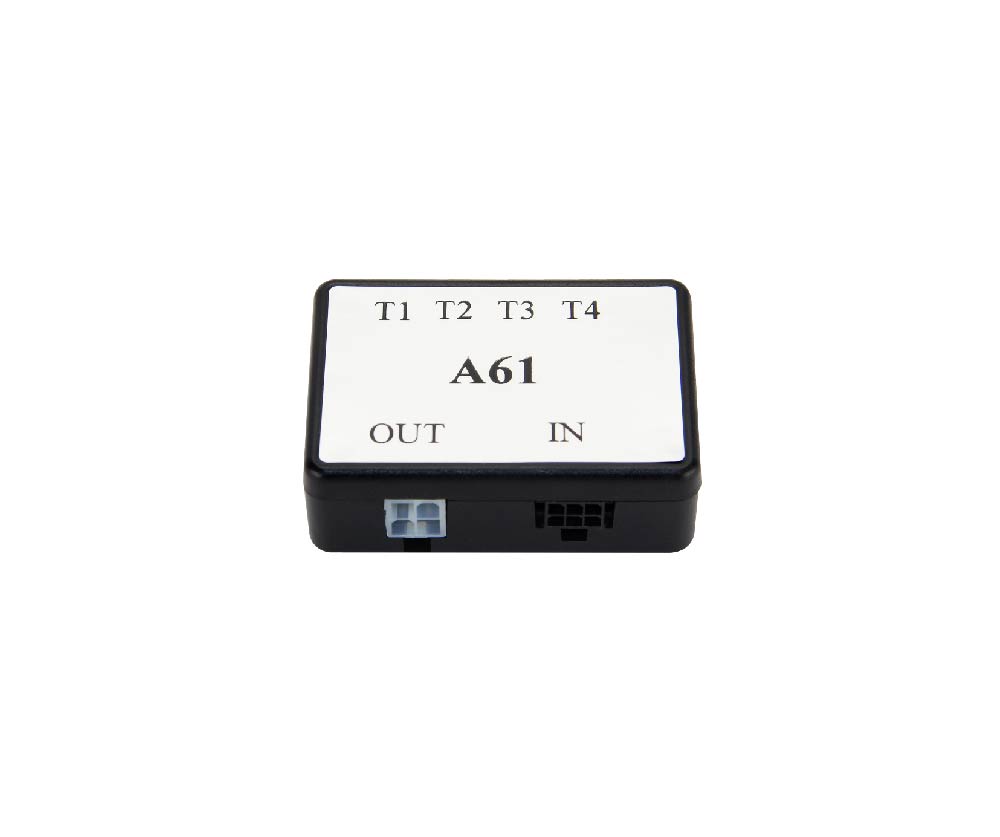

  • A61 temperature sensor box

    A61 temperature sensor box

  • digital temperature sensor

    Digital temperature sensor

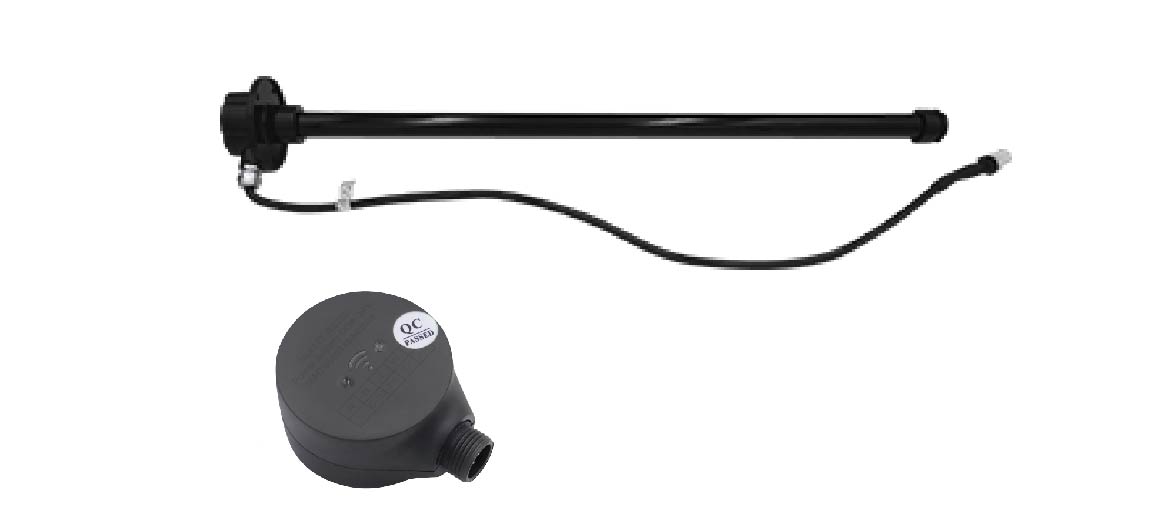

  • fuel sensor 103 104

    Ultrasonic Fuel Sensor (Range 250/400cm)

  • ultrasonic wifi serial port debugging tool

    Ultrasonic WIFI serial port debugging tool

  • relay

    12V/24V relays

  • ibutton reader

    iButton reader

Download

Product User Guide

MD500S flyer

2022-12-30

Meitrack MD500S Product User Guide

V2.1

2022-12-20

Meitrack MDVR Operation and Function Manual

V1.1

2022-1-20

Protocol

Meitrack MDVR GPRS Protocol

V1.4

2020-12-25

Meitrack SMS Protocol

V3.0

2022-7-18

Aided Software

MT manager+ App

V1.2

2024-06-27

Meitrack Manager (New Version)

V6.0

2022-11-28

Meitrack Manager User Guide (New Version)

V2.0

2023-10-23

MTPlayerSetup

V1.0

2023-9-21

MTRecord

2.3

2022-1-20

STM32_USB_Driver

2023-5-23

Meitrack Family GPS Tracking System

Meitrack MS03 User Guide

V1.0

2022-1-20

Meitrack MS03 for iOS

V3.1

2021-12-29

Meitrack MS03 for Android

V2.5

2021-12-29

Accessories User Guide

Meitrack ASUF103 & ASUF104 Bluetooth Ultrasonic Fuel Level Sensor User Guide

V1.3

2023-6-21

Meitrack Ultrasonic Fuel Level Sensor User Guide

V2.1

2022-9-17

Meitrack Fuel Sensor User Guide

V1.6

2022-1-20

Meitrack Temperature Sensor User Guide

V1.4

2022-1-20

Meitrack iButton User Guide

V1.2

2024-02-04

Accessories App

A76 configuration tool

ASUF400 configuration tool

FuelGuard

Accessories App

A76 configuration tool

ASUF400 configuration tool

FuelGuard

VIDEOS

  • Meitrack MD500S, World's Smallest AI Mobile DVR

  • Meitrack MD500S Quick Start Guide
