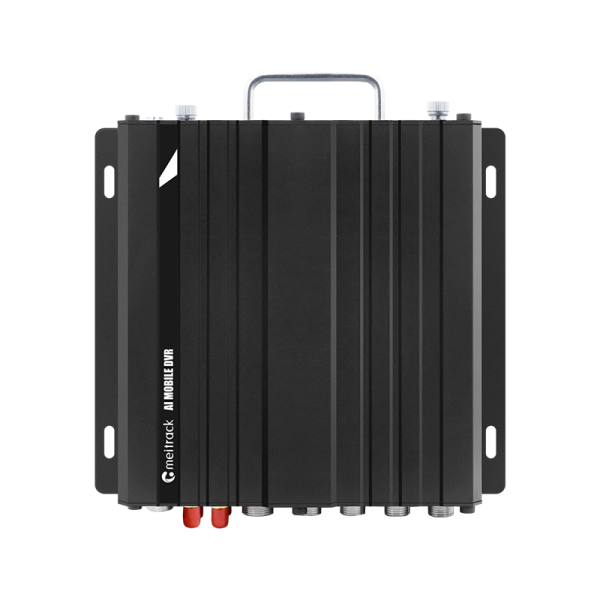

MD833H

  • ADAS & DMS

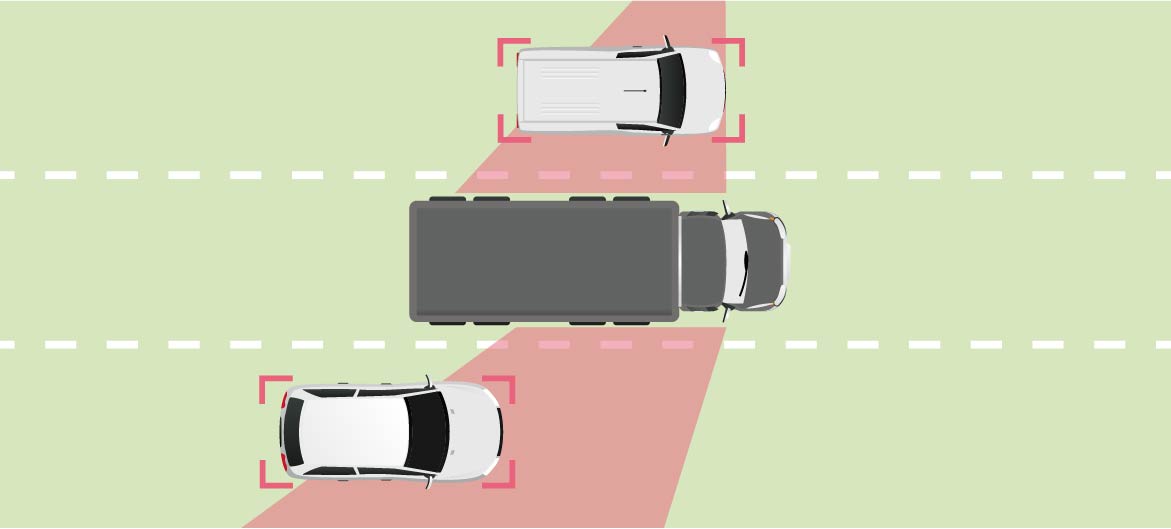

  • Blind Spot Detection (Optional)
  • High Capacity Storage

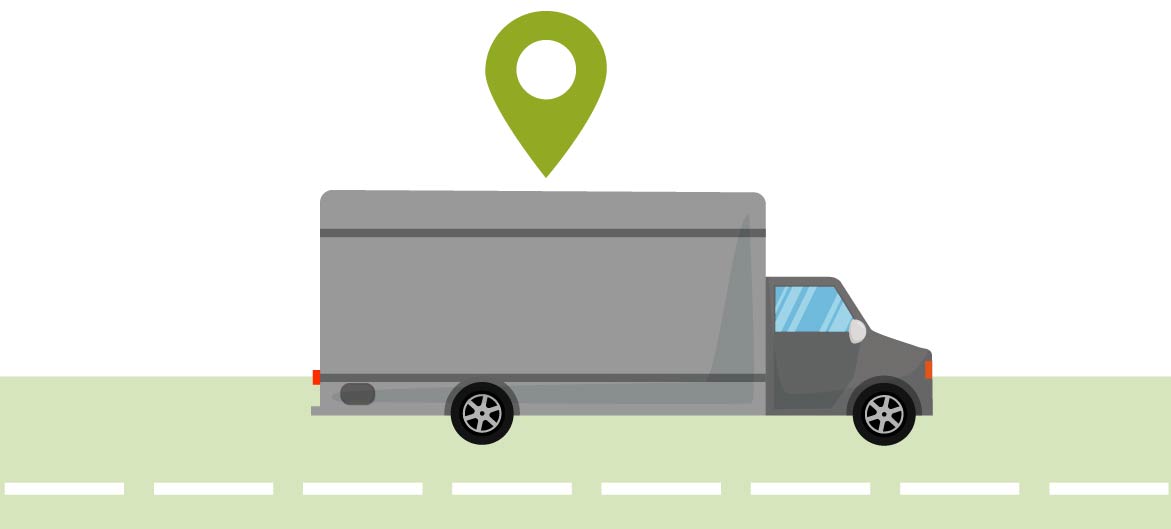

  • Vehicle Tracking
  • 8CH
Add to Wishlist
Category: 4G (LTE Cat 4) 2G Wi-Fi Bluetooth GNSS ADAS DMS FOTA RS232 RS485 CAN Bus 1080P 720P CE
Trust Badge Image

Features


The alarms on the display screen and the audible alerts not only keep the driver from crashes but also make driving less stressful.




Specifications

AI

AI Video

ADAS, DMS, BSD

Audio and Video

Audio input

8 channels for camera Mic input, requires camera to support audio;
1 x intercom handle input;
1 x 3.5MM headset input (GSM communication port);

Audio output

1 independent audio isolated output (connected to AV-OUT connector,
VGA airhead connector and intercom handle connector)
1 x 3.5MM headphone port output (GSM communication port)

Audio compression

G.726

Recording method

Simultaneously record the ACC, alert, sound, and video

Video input

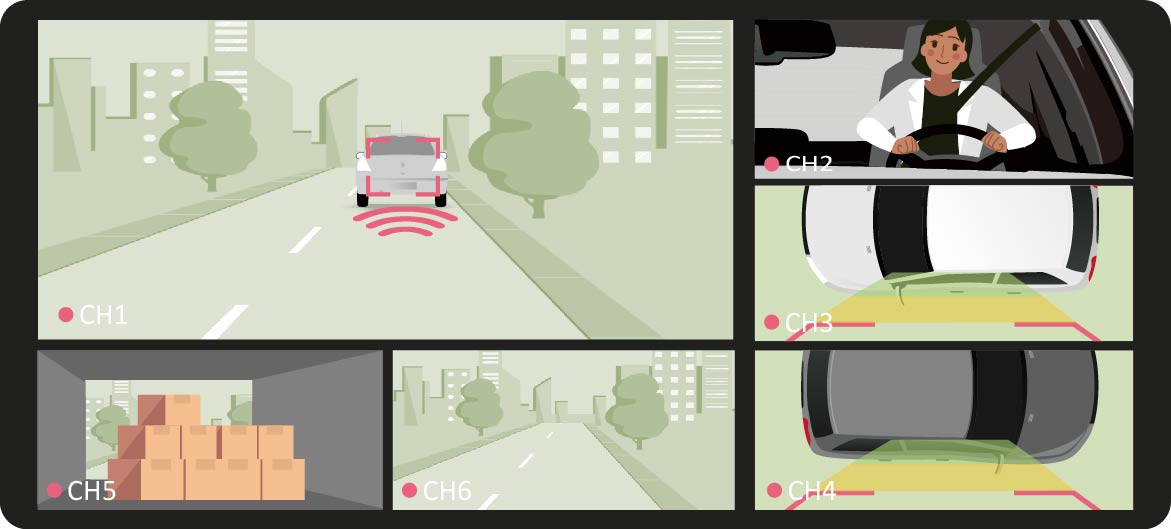

8 AHD Cameras with D1/720P/1080P arbitrary mixing;
Adaptive camera resolution and standard (PAL and NTSC);
Up to 8x1080P@15fps live recording;

Video output

1 VGA video output (8Pin aviation plug), default resolution 1280*720.
1 x CVBS aviation plug (level: 1.0Vp-p, impedance: 75Ω);
Resolution: PAL 704*576, NTSC 704*480.

Video search & playback

Retrievable playback by channel, video type, stream type and time

Video compression

H.264/H.265

Image display

Support 1,4,8,9 image display

Communication and Positioning

GSM

4G (LTE Cat 4), 3G, 2G

GNSS antenna

Supports antenna insertion/extraction/short circuit detection

WiFi

802.11 b/g/n, 2.4GHz, Supports STA, AP mode

Bluetooth

Support protocol BLE5.1 Downward compatible

ETH

Positioning mode

Supports GPS,BD,Glonass dual mode positioning configuration

Positional accuracy

2.5 m

Sensitivity

-162 dBm

Power Supply

Rated voltage

DC: 11.4V ~ 36V,Rated 12V/4A

Power consumption

Start host video function about 8W
Daytime: approx. 24W connected to 8-way camera, with display approx. 29W;
At night: about 32W for the 8-way camera, with display approx. 37W;
Connect a single camera (normal range is 50mA~100mA during the day,
200mA~250mA at night)

Hardware

Operation system

Dual system operation, dual communication channels (prevent data loss)

Storage medium

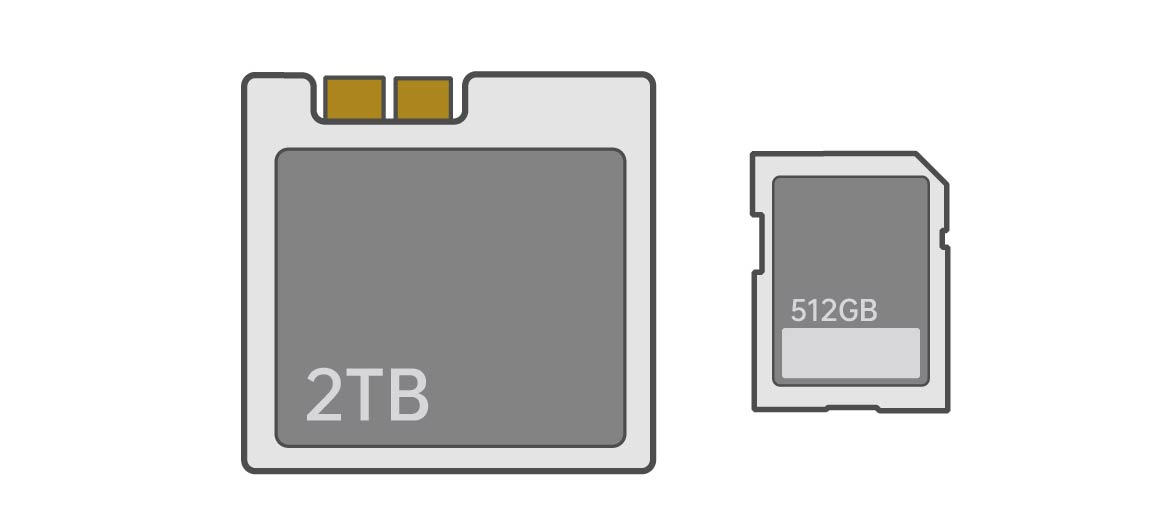

SD Cards & SSD Hard Drives: 1 x SATA HDD/SSD and 1 x SD card; capacity: 2TB + 512GB
(Note: SD card is not available in TF card with card holder)

SPI memory

Built-in 64Mbit for GPRS/SMS/GPS LOG data

Built-in sensor

3-axis acceleration sensor (for detecting vibrations and assisting in determining
movement stationary state)

Operating temperature/humidity

Without battery: -20°C to 70°C

Dimensions

177 x 162 x 63mm

Weight

1900g (excluding hard drives)

Frequency Band

Global

MD833H-G
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B8/B6/B19
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B25/B26/B18/B19/B20/B28
LTE-TDD: B38/B39/B40/B41

Africa/Europe/Middle East

MD833H-E
GSM: B3/B8
WCDMA: B1/B8
LTE-FDD: B1/B3/B7/B8/B20/ B28A

Americas

MD833H-A
WCDMA: B2/B4/B5
LTE-FDD: B2/4/5/12/13/14/66/71

Australia

MD833H-AU
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B8
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD: B40

Japan

MD833H-J
WCDMA: B1/B6/B8/B19
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: B41

Others

Certification

CE

Interfaces

8 x AV-IN, 8 x Din (Max 8), 2 x Dout (Max 8), 2 x AD (Max 6), 1 x Speed_IN, 1 x 1-wire,
2 x RS232, 2 x RS485, 1 x CAN, 1 x DC_5V, 1 x DC_12V

Supported Peripherals

RFID

iButton

Relay (12V/24V)

Microphone & speaker

Intercom handle

BLE beacons

BLE temperature & humidity sensor

Ultrasonic fuel level sensor

Fuel level sensor

Digital temperature sensor

Camera

Display

Battery

Accessories

  • accessories

    ADAS camera

  • accessories

    DMS camera

  • accessories

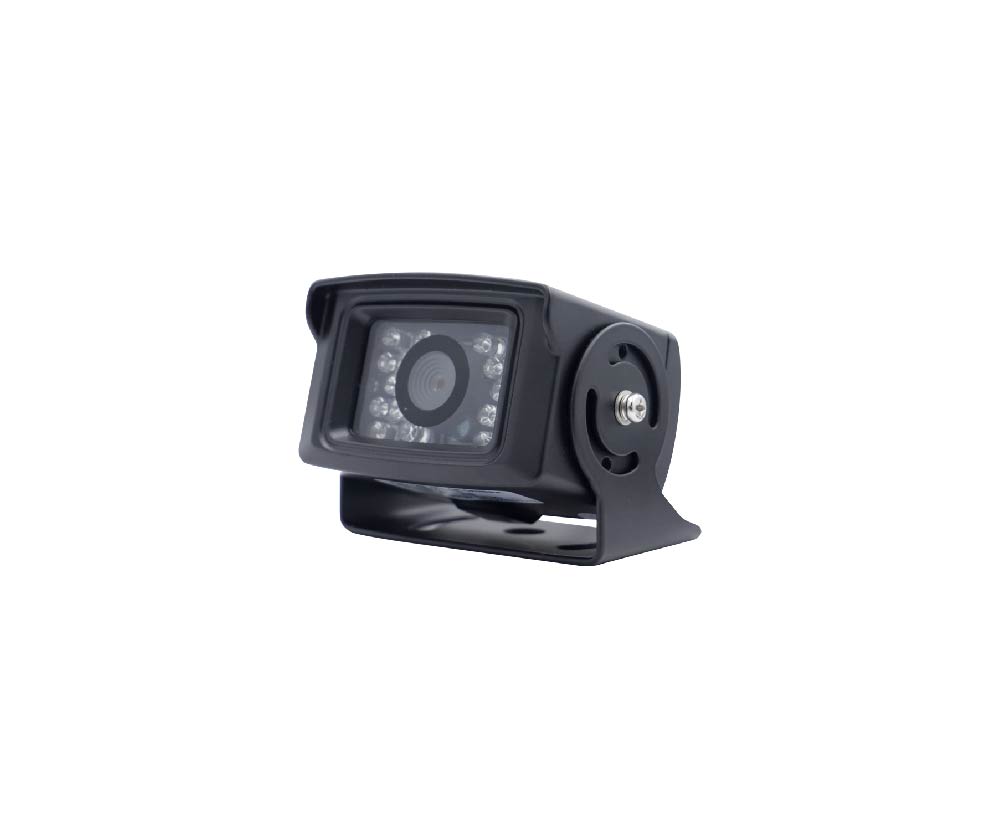

    BSD Camera

  • accessories

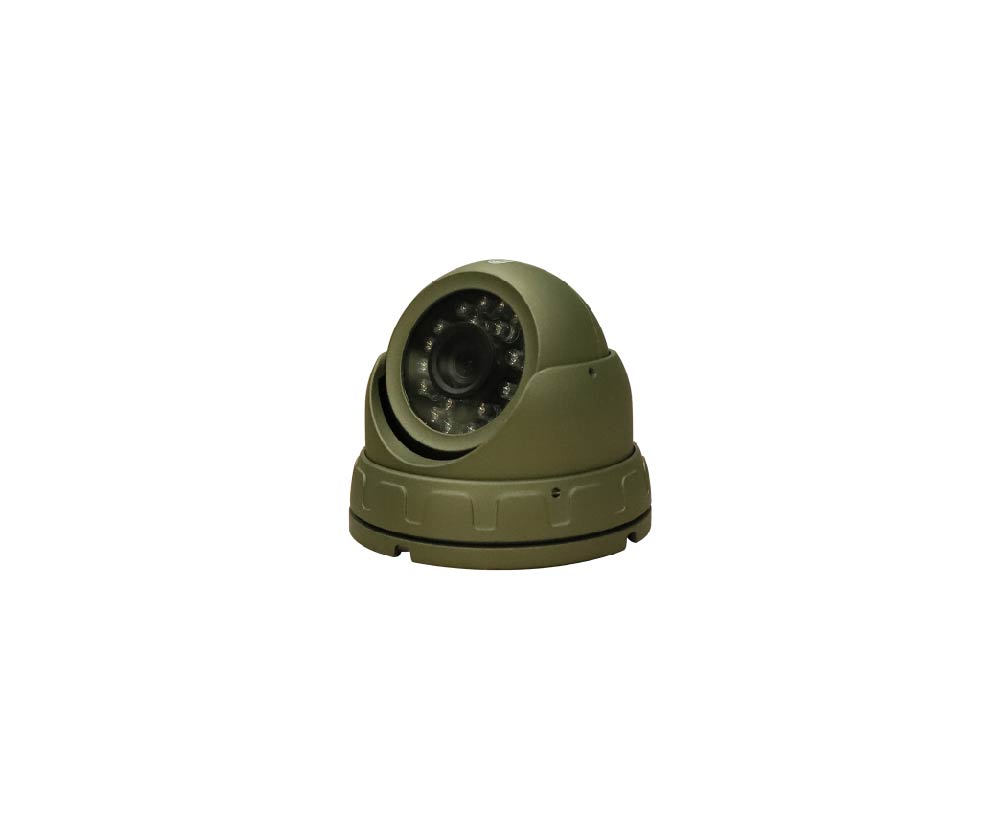

    ACA302 large metal conch camera

  • accessories

    ACA303 small metal conch camera

  • accessories

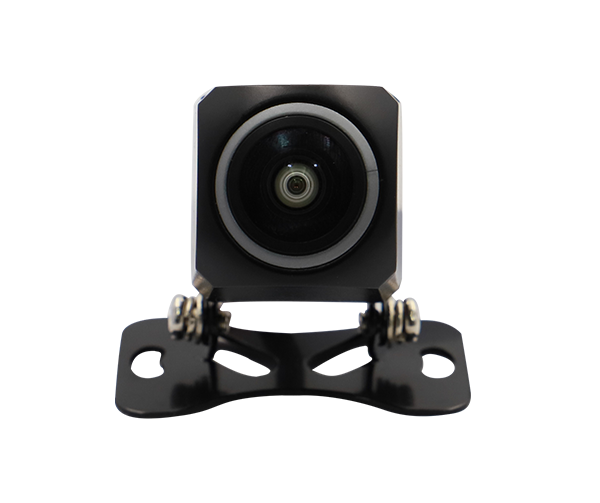

    Waterproof square camera 720/1080P

  • accessories

    Waterproof square camera 1080P

  • accessories

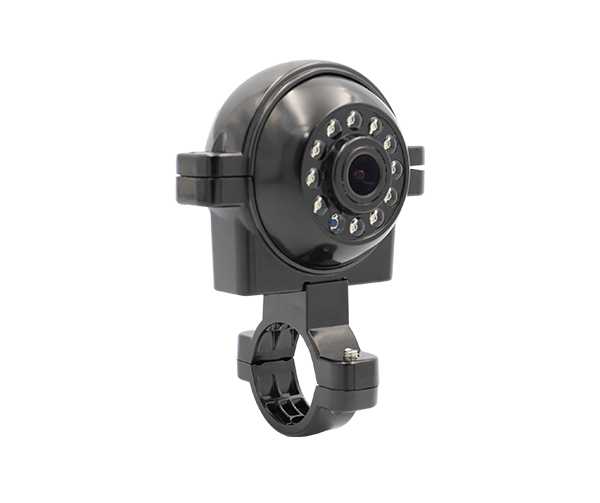

    Side mounted waterproof camera 720/1080P

  • temperature and humidity sensor

    Bluetooth temperature and humidity sensor

  • A95

    Bluetooth beacon 401

  • A95

    Bluetooth beacon 402

  • a53

    Fuel sensor (voltage AD)

  • ultrasonic fuel sensor

    Ultrasonic Fuel Sensor (Range 100/250/400cm)

  • accessories

    12V/24V relays

  • accessories

    iButton reader

  • accessories

    RFID reader +ID card

  • accessories

    High temperature battery

  • a95

    Intercom handle

  • accessories

    7-inch VGA display

  • accessories

    7-inch CVBS display

  • accessories

    Microphone + speaker + connector cable
