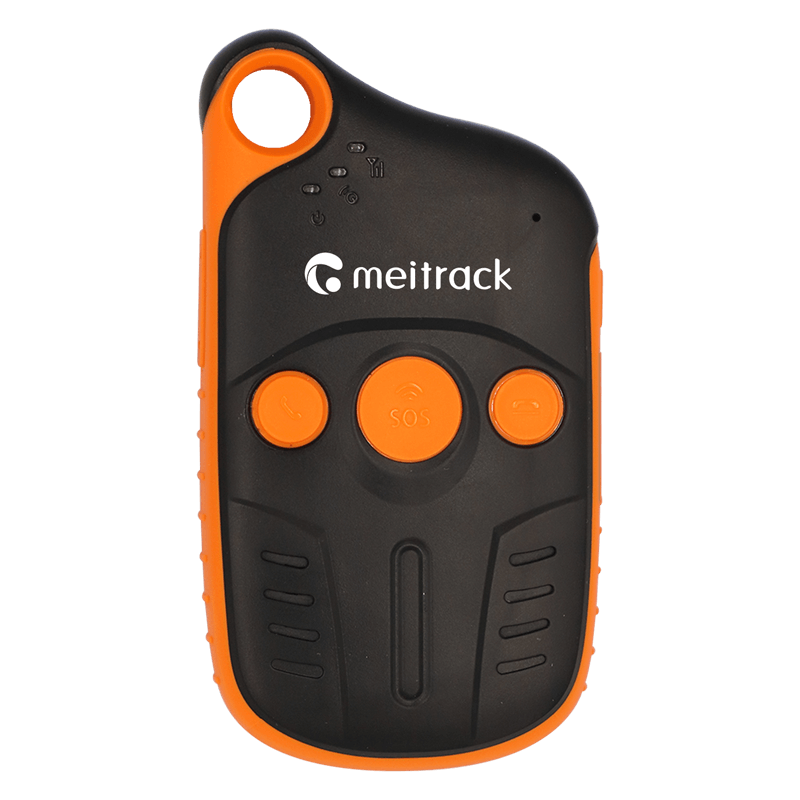

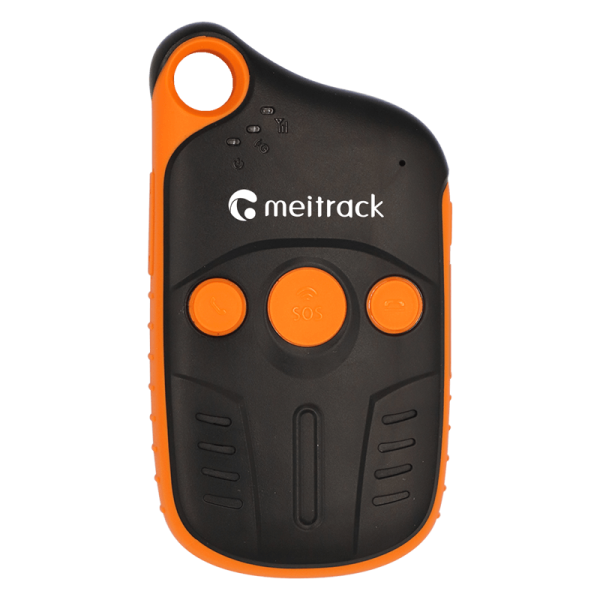

P99L

  • Portable Design, Water Resistant, Shock Resistant
  • LBS/GNSS/Wi-Fi Positioning
  • 400 Hours Standby Time
  • Versatile Use
Add to Wishlist
Trust Badge Image

Features





Specifications

GSM

4G (LTE Cat 1)

GNSS antenna

Internal

Iridium SBD

Wi-Fi positioning

WiFi 2.4 GHz, 802.11 b/g/n

Wi-Fi

Wi-Fi hotspot

Bluetooth

LoRa

Positioning mode

Positioning accuracy

2.5m

Sensitivity

Power supply

Backup battery

2000 mAh/3.7 V

Power consumption

40 mA(3.8V, GPS & WiFi On)

Charging

(a)Magnetic (b)Wireless

Working hour

Up to 400 hours stand-by; 50 hours normal working

Dimensions

108 x 52 x 18 mm

Weight

106g

Operating temperature

-20°C~55°C

Operating humidity

Ingress protection

IP67

Memory

8 MB

Europe

P99L-E:
LTE-FDD B1/B3/B7/B8/B20
UMTS/PSPA+ B1/B8
GSM/GPRS/EDGE 900/1800MHZ

America

P99L-A:
LTE-FDD B2/B4/B12
UMTS/PSPA+ B2/B5

Thailand

Australia

P99L-SA:
LTE-FDD B1/B3/B5/B7/B8/B28
UMTS/PSPA+ B1/B5

Japan

Global

OTA/FOTA

×

Certification

CE, FCC

RFID

×

iButton

×

Relay (12 V/24 V)

×

Buzzer

×

Microphone & speaker

×

Intercom handle

×

BLE temperature & humidity sensor

×

Ultrasonic fuel level sensor

×

Fuel level sensor

×

Capacitive oil sensor

×

Digital temperature sensor

×

Tire pressure sensor

×

Camera

×

Display

×

Battery

×

Remote control

×

Download

Product User Guide

P99L flyer

Meitrack P99G & P99L Product User Guide

V1.1

2020-10-28

Protocol

Meitrack P99G & P99L GPRS Protocol

V1.0

2019-4-16

Meitrack SMS Protocol

V3.0

2022-7-18

Aided Software

Meitrack Manager (New Version)

V6.0

2024-03-26

Meitrack Manager User Guide (New Version)

V2.0

2023-10-23

OTA User Guide

V1.3

2021-12-29

MyCOM

STM32_USB_Driver

2021-12-29

Meitrack Family GPS Tracking System

Meitrack MS03 User Guide

V1.0

2021-12-29

Meitrack MS03 for iOS

V3.1

2022-1-20

Meitrack MS03 for Android

V2.5

2022-1-20
