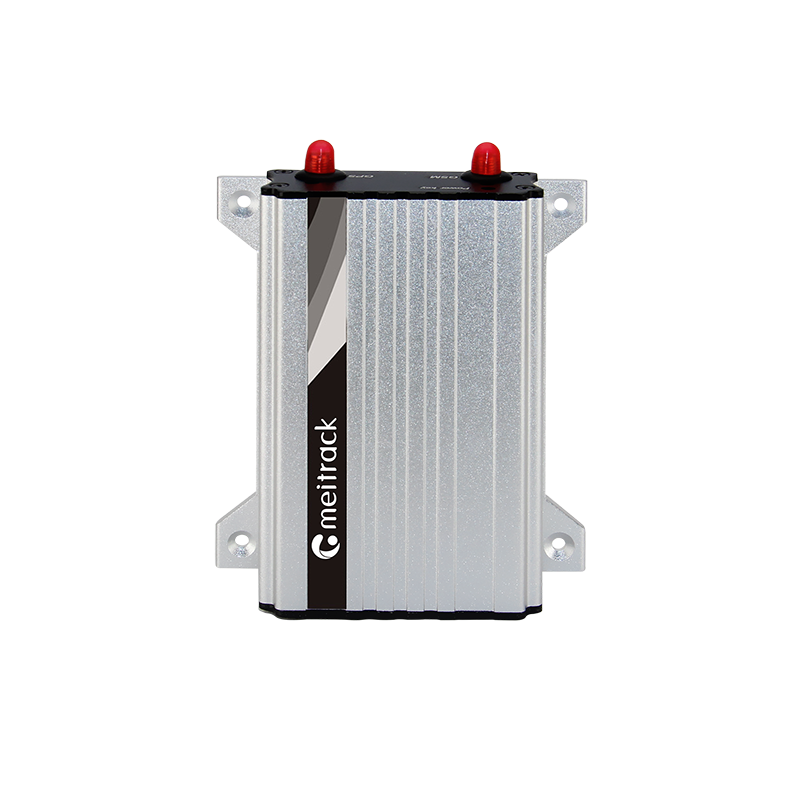

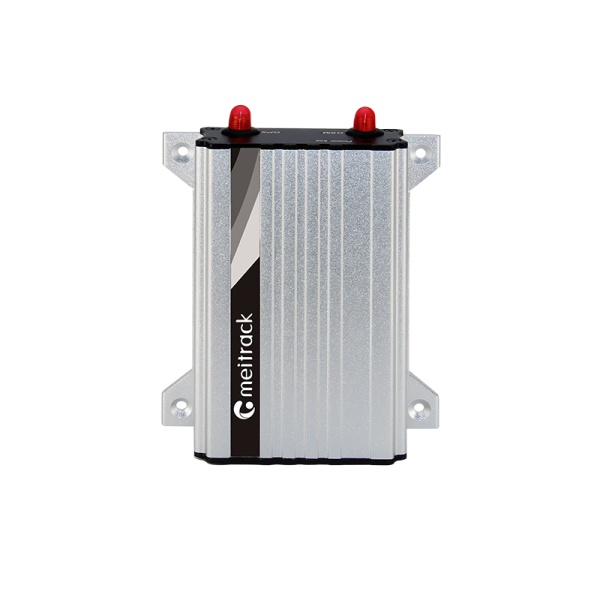

T333L

  • Tire Pressure Monitoring
  • Driving Behavior Analysis
  • Two-Way Communication
  • RS232 Port
Add to Wishlist
Category: Tags: , , , ,
Trust Badge Image

Features


Tire Pressure Monitoring

Our T333L is fully integrated with tire pressure monitoring capabilities, enhancing the safety of your fleet.

Driving Behavior Analysis

Detect driver behaviors, such as the driver fatigue, idling, harsh acceleration, harsh braking, harsh cornering, collision, etc.



Two-Way Communication

External speaker and microphone for two-way calling and remote listen-in functions.

RS232 Port

Support camera, fuel sensor, temperature sensor, tire pressure sensor, LED display, RFID, iButton and etc.


Specifications

GSM

4G (LTE Cat 1)
GNSS antenna

External 4G antenna
External GPS antenna
Iridium SBD

–
Wi-Fi positioning

–
Wi-Fi

–
Wi-Fi hotspot

–
Bluetooth

–
LoRa

–
Positioning mode

–
Positioning accuracy

2.5m
Sensitivity

-161 dB
Power supply

DC 11–36 V/1.5 A
Backup battery

400 mAh/3.7 V
Power consumption

Standby mode: 5mA
Normal mode: 65mA
Charging

–
Working hour

47 hours in power-saving mode, 4.7 hours in normal mode
Dimensions

105 mm x 65 mm x 26 mm
Weight

190g
Operating temperature

-20°C to 55°C (normal-temperature battery)
-5°C to 75°C (high-temperature battery)
Operating humidity

5% to 95%
Ingress protection

–
Memory

8 MB buffer
Europe

–
America

–
Thailand

T333L:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8
Australia

–
Japan

–
Global

–
OTA/FOTA

OTA
Certification

CE, FCC
RFID

√
iButton

√
Relay (12 V/24 V)

×
Buzzer

×
Microphone & speaker

√
Intercom handle

×
BLE temperature & humidity sensor

×
Ultrasonic fuel level sensor

√
Fuel level sensor

√
Capacitive oil sensor

×
Digital temperature sensor

√
Tire pressure sensor

×
Camera

√
Display

√
Battery

×
Remote control

×

Accessories

  • accessories

    RS232 camera

  • accessories

    Microphone + speaker + connector cable

  • accessories

    RFID reader +ID card

  • accessories

    iButton reader

  • a53

    Fuel sensor (voltage AD)

  • ultrasonic fuel sensor

    Ultrasonic Fuel Sensor

  • accessories

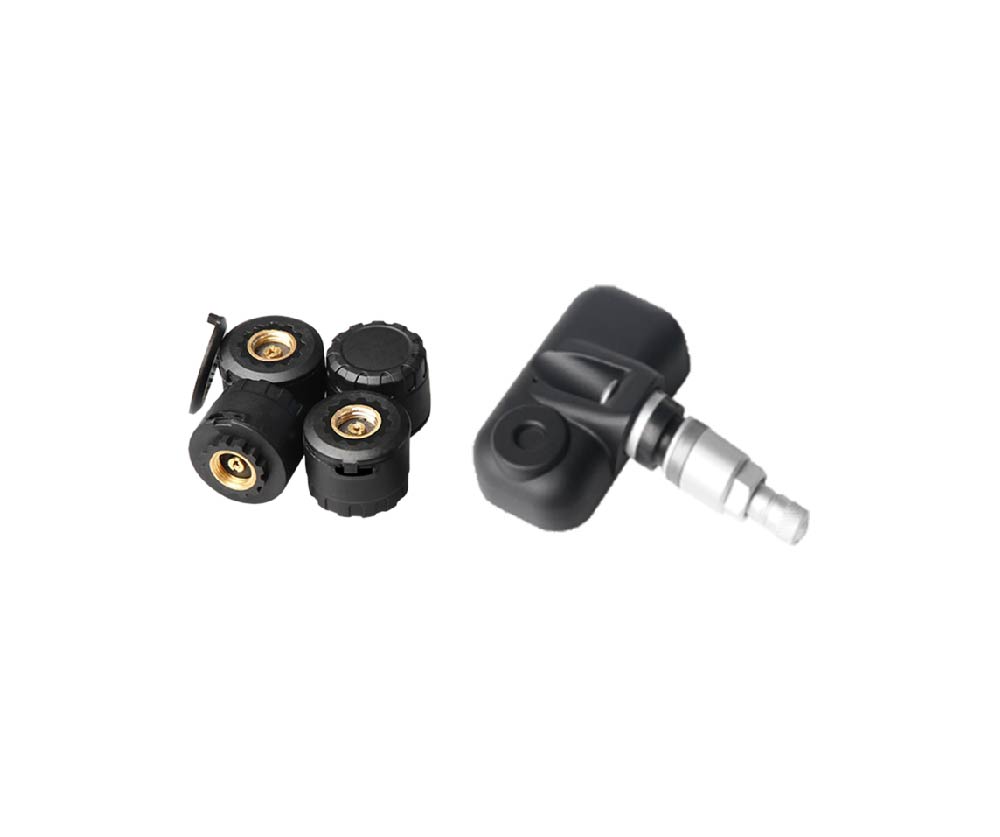

    Tire pressure sensor

  • accessories

    Digital temperature sensor

  • accessories

    A61 temperature sensor box

  • accessories

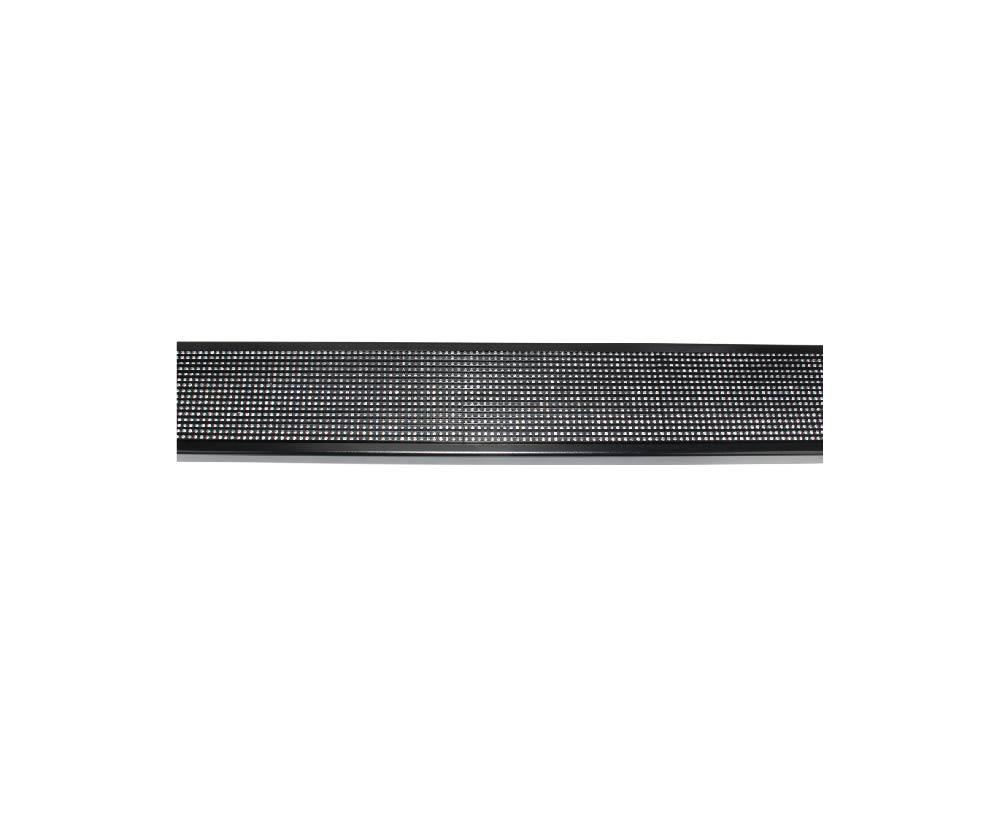

    LED display

Download

Product User Guide

T333L flyer

Meitrack T333L Product User Guide

V1.1

2023-12-06

Protocol

Meitrack GPRS Protocol for T333

V1.1

2023-10-07

Meitrack SMS Protocol

V3.0

2022-7-18

Meitrack Tire Pressure Sensor GPRS Protocol

V1.1

2022-8-29

Aided Software

Meitrack Manager (New Version)

V6.0

2024-03-26

Meitrack Manager User Guide (New Version)

V2.0

2023-10-23

OTA User Guide

V1.3

2021-12-29

MyCOM

USB232_Driver

WIN11 RS232 USB_Driver

Meitrack Family GPS Tracking System

Meitrack MS03 User Guide

V1.0

2022-1-20

Meitrack MS03 for iOS

V3.1

2022-1-20

Meitrack MS03 for Android

V2.5

2022-1-20

Accessories User Guide

Meitrack ASUF103 & ASUF104 Bluetooth Ultrasonic Fuel Level Sensor User Guide

V1.3

2023-6-21

Meitrack Camera User Guide

V1.5

2022-8-29

Meitrack Handset User Guide

V1.3

2022-8-29

Meitrack LED Display User Guide

V1.3

2022-8-29

Meitrack RFID User Guide

V2.0

2022-9-22

Meitrack Ultrasonic Fuel Level Sensor User Guide

V2.1

2022-9-17

Meitrack iButton User Guide

V1.2

2024-02-04

Meitrack Fuel Level Sensor User Guide

V1.6

2022-1-20

Meitrack CLS Sensor User Guide

V1.4

2022-8-29

Meitrack Temperature Sensor User Guide

V1.4

2022-1-20

Meitrack Tire Pressure Sensor User Guide

V1.6

2022-8-29

Meitrack A78 Serial Port Extender User Guide

V1.1

2022-8-29

Accessories App

A76 configuration tool

ASUF400 configuration tool

FuelGuard

Download Password

* You can contact your regional sales representative to obtain!
