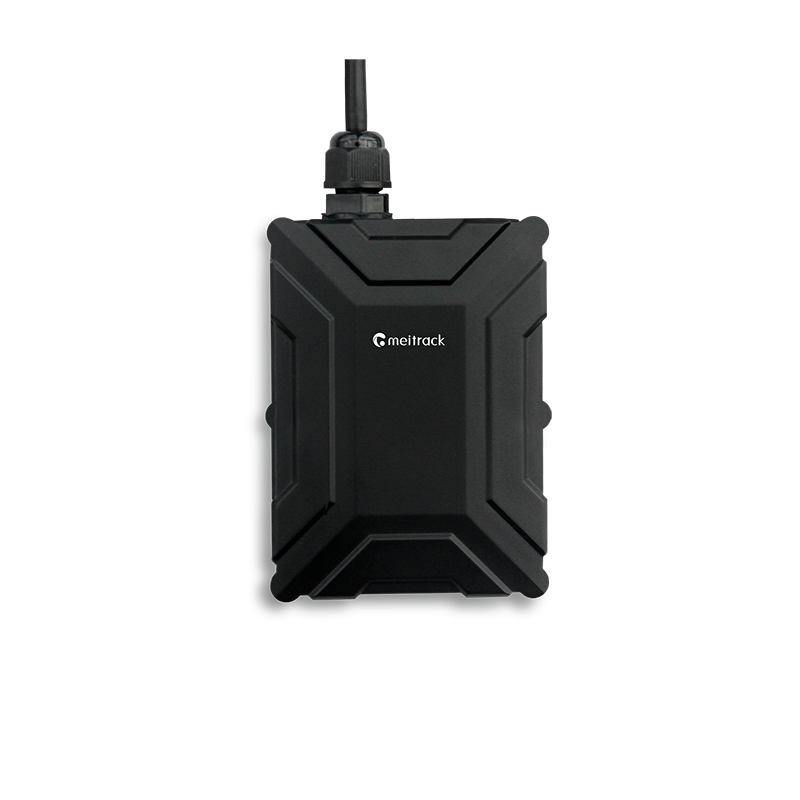

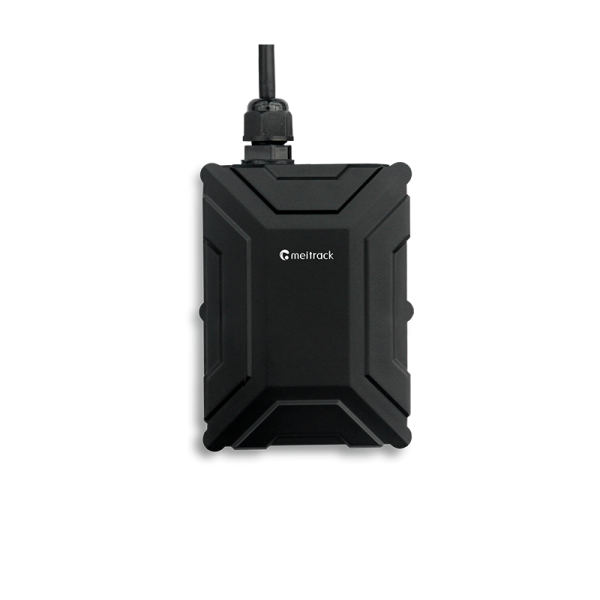

T366

  • IP67 Water-Resistant
  • Full IP67 Immobilizer
  • RS232 Port
  • Driving Behavior Analysis
Add to Wishlist
Category: 2G GNSS RRS232/CAN Bus OTA IP67 CE RoHS
Trust Badge Image

Features





Specifications

Communication and Positioning

GSM

2G

GNSS antenna

External GPS antenna

Positioning accuracy

2.5m

Power

Power supply

DC 11.4–90 V/1.5 A

Backup battery

400 mAh battery

Power consumption

Current in standby mode: 65 mA

Physical Specifications

Dimensions

80.5 mm x 60 mm x 23.5 mm

Weight

100g

Operating Environment

Operating temperature

-35°C to 80°C (available for the device without a battery)

Operating humidity

5% to 95%

Ingress protection

IP67

Functions

Memory

8 MB buffer

Frequency Bands

Africa/Europe/Middle East

T366L-E
LTE FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM/GPRS: B3/B8

Americas

T366L-A
LTE FDD: B2/B4/B12, WCDMA: B2/B4/B5

Australia

T366L-AU
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD:B40,
WCDMA: B1/B2/B5/B8, GSM/GPRS: B2/B3/B5/B8

T366L-AUT
LTE FDD:B1/B3/B5/B7/B28, WCDMA: B1/B5

Others

OTA/FOTA

OTA

Certification

CE, RoHS

Supported Peripherals

RFID

iButton

Relay (12 V/24 V)

Buzzer

Ultrasonic fuel level sensor

Fuel level sensor

Digital temperature sensor

Battery

Accessories

  • relays

    12V/24V relays

  • buzzer

    Buzzer

  • accessories

    Digital temperature sensor

  • accessories

    iButton reader

  • a53

    A53 fuel level sensor

  • a67

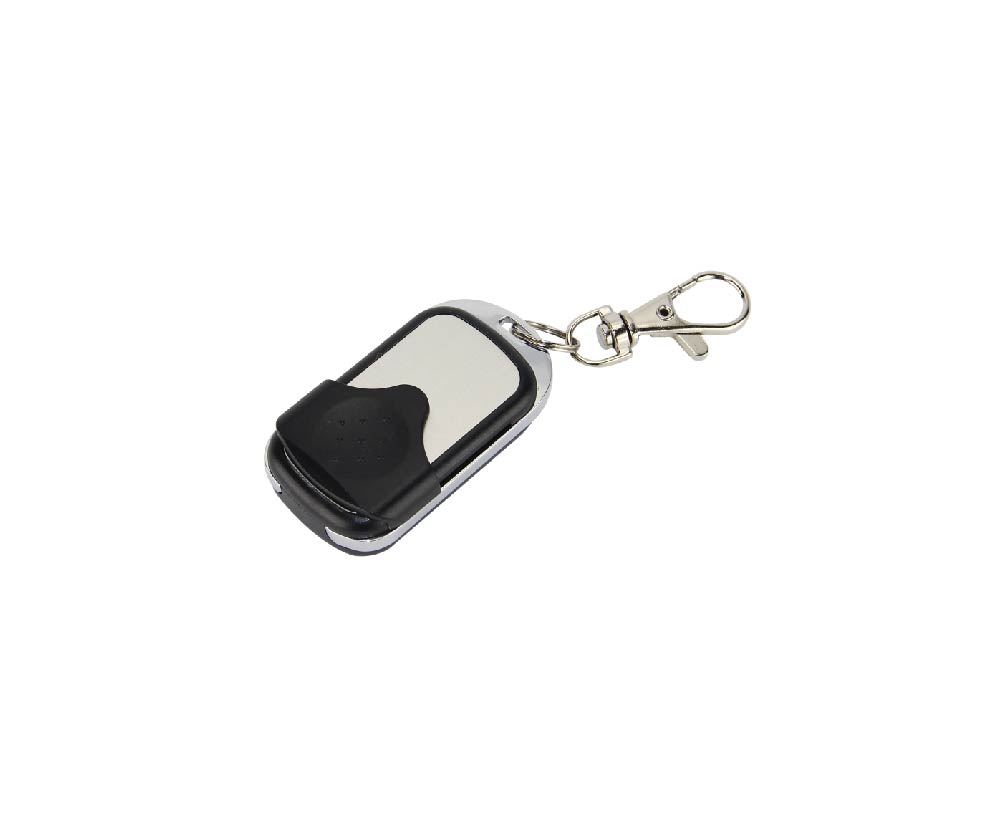

    A67 remote control

  • a64

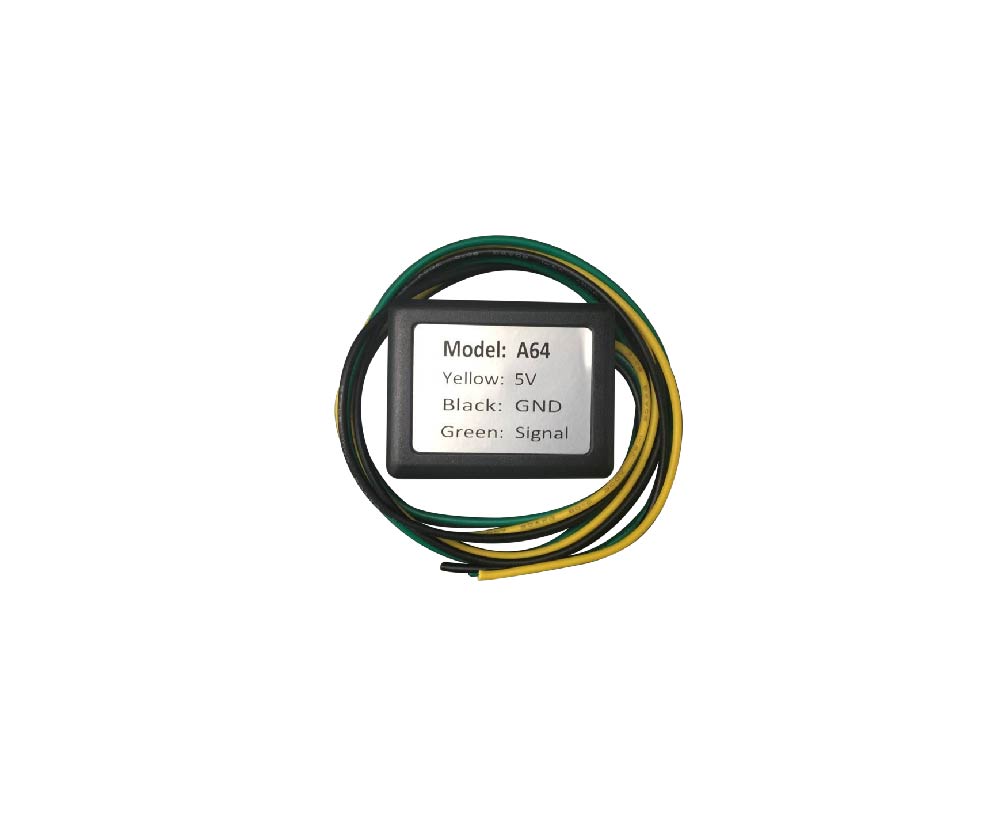

    A64 remote control receiver

  • batteries

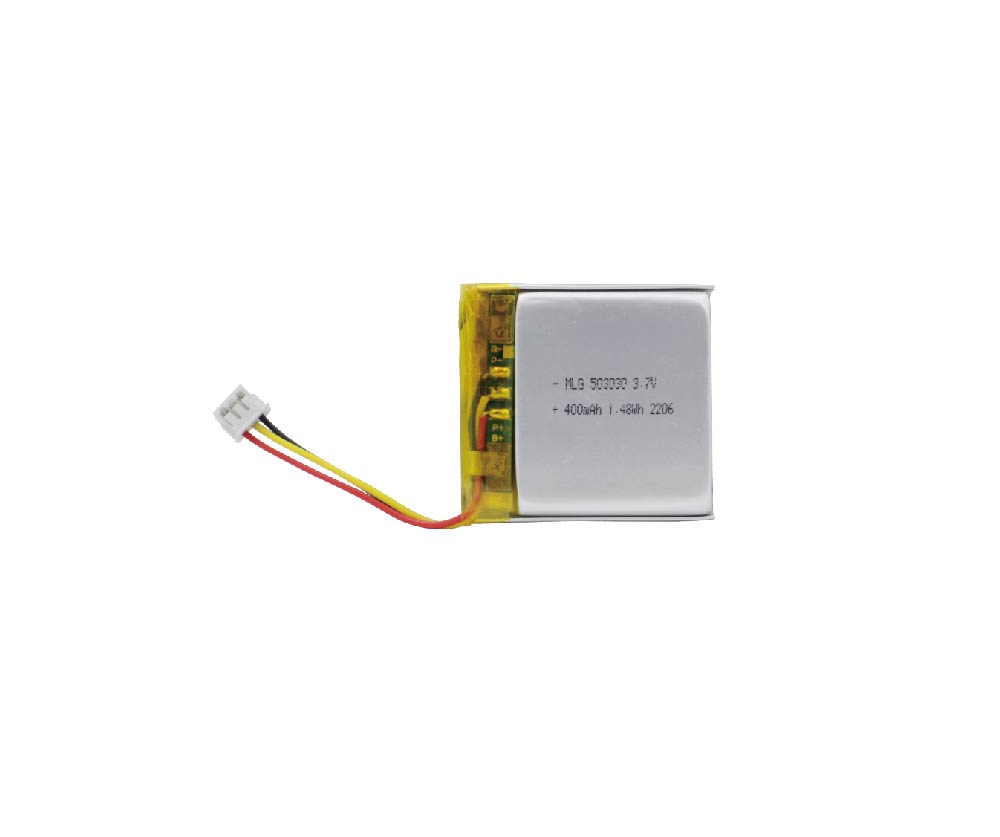

    High temperature batteries

  • antenna

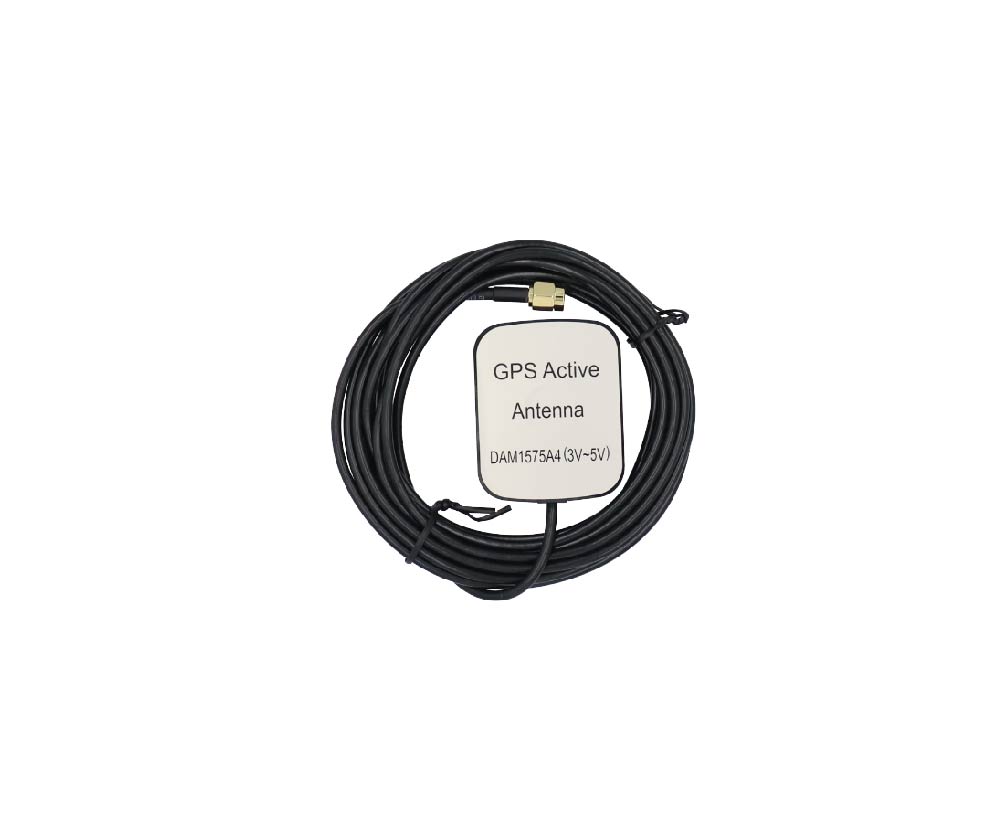

    External GPS antenna

  • ultrasonic fuel sensor

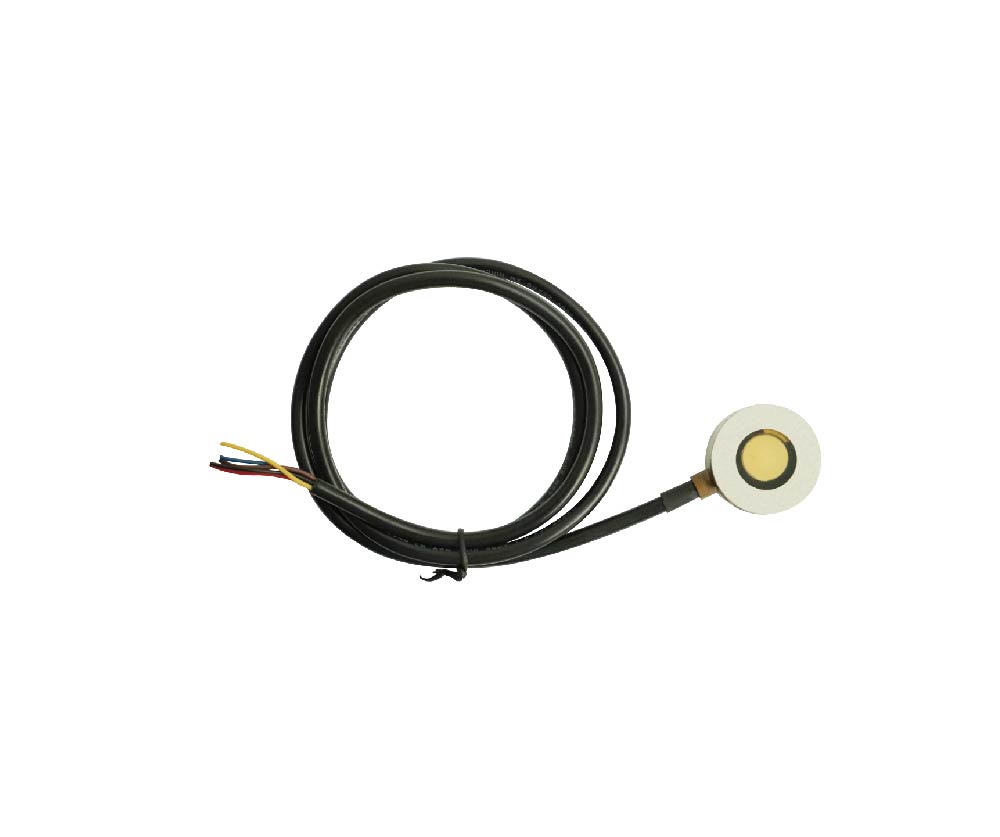

    Ultrasonic Fuel Sensor

  • accessories

    RFID reader +ID card

Download

Product User Guide

T366 Series flyer

Meitrack T366 Series User Guide

V2.0

2021-4-23

Protocol

Meitrack T366 & T366G & T366L GPRS Protocol

V1.5

2019-7-3

Meitrack SMS Protocol

V3.0

2022-7-18

Aided Software

Meitrack Manager (New Version)

V6.0

2024-03-26

Meitrack Manager User Guide (New Version)

V2.0

2023-10-23

OTA User Guide

V1.3

2021-12-29

MyCOM

STM32_USB_Driver

2021-12-29

Meitrack Family GPS Tracking System

Meitrack MS03 User Guide

V1.0

2022-1-20

Meitrack MS03 for iOS

V3.1

2022-1-20

Meitrack MS03 for Android

V2.5

2022-1-20

Accessories User Guide

Meitrack ASUF103 & ASUF104 Bluetooth Ultrasonic Fuel Level Sensor User Guide

V1.3

2023-6-21

Meitrack Ultrasonic Fuel Level Sensor User Guide

V2.1

2022-9-17

Meitrack RFID User Guide

V2.0

2022-9-22

Meitrack iButton User Guide

V1.2

2024-02-04

Meitrack Fuel Level Sensor User Guide

V1.6

2022-1-20

Meitrack Temperature Sensor User Guide

V1.4

2022-1-20

Meitrack A89 Driver Fatigue Monitor User Guide

V1.0

2019-3-15

Meitrack A91 Passenger Flow Sensor User Guide

V1.1

2019-12-17

Accessories App

A76 configuration tool

ASUF400 configuration tool

FuelGuard
