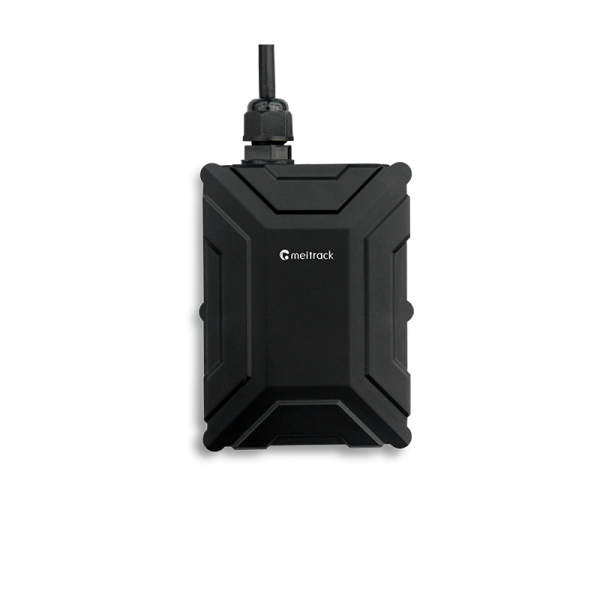

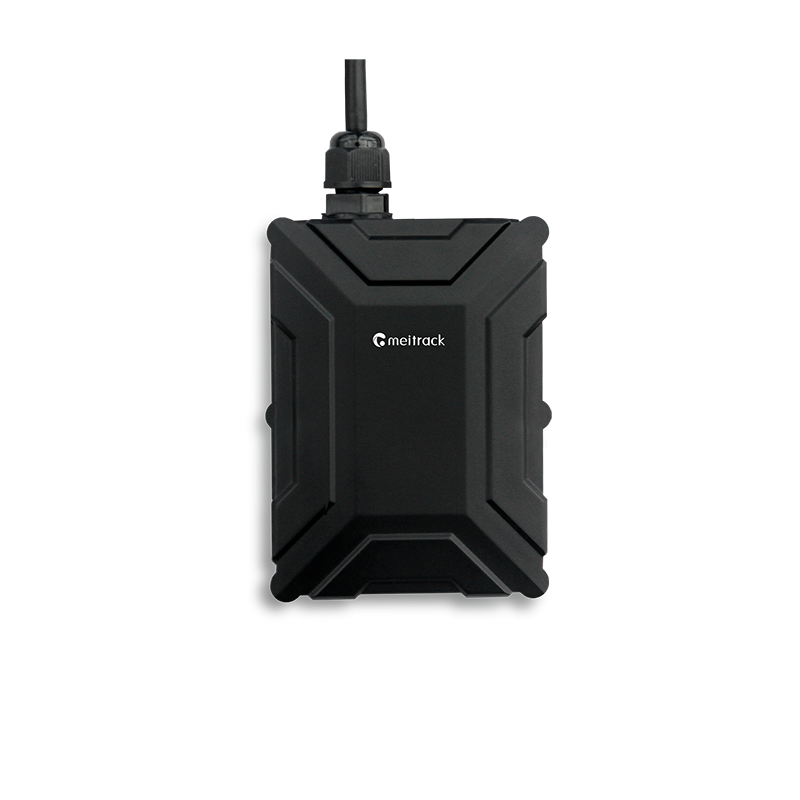

T399L/T399E

  • Bluetooth Communication
  • Driving Behavior Analysis
  • Flexible Configurable I/0
  • Ultrasonic Fuel Level Sensor
Add to Wishlist
Category: "4G (LTE Cat 1/4/M1/NB2) 2G Bluetooth GNSS RS232/RS485/CAN Bus FOTA IP67 CE"
Trust Badge Image

Features





Specifications

Communication and Positioning

GSM

4G (LTE Cat 1/4/M1/NB2), 3G, 2G

GNSS antenna

Built-in antenna

Bluetooth

Support Bluetooth 4.2 and Bluetooth 5.0

Positioning accuracy

2.5m

Power

Power supply

DC 11.4–90 V/1.5 A

Backup battery

Internal 400 mAh battery (normal temperature resistant: -20°C to 60°C)

Power consumption

Current in standby mode: 65 mA

Physical Specifications

Dimensions

80.5 mm x 60 mm x 23.5 mm

Weight

100g

Operating Environment

Operating temperature

-35°C to 80°C (available for the device without a battery)
-5°C to 75°C (available for the device with a high temperature resistant battery)

Operating humidity

5% to 95%

Ingress protection

IP67

Functions

Memory

8 MB buffer

Frequency Bands

Global

T399E-GFB5
LTE CAT M1/NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26(CAT
M1)/B27(CAT M1)/B28/B66/B71(NB)/B85
GSM:850/900/1800/1900MHz

T399L-GFB5:
LTE CAT1
FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
TDD:B38/B39/B40/B41
WCDMA:B1/B2/B4/B5/B6/B8/B19
GSM:850/900/1800/1900MHz

Africa/Europe/Middle East

T399L-EA: FDD: B1/B3/B7/B8/B20/B28, TDD: B38/B40,
WCDMA: B1/B8, GSM: 900/1800MHz

T399L-ER: FDD: B1/B3/B5/B7/B8/B20/B28, TDD: B38/B40/B41
GSM: B2/B3/B5/B8

Americas

T399L-AFB5:
LTE CAT1:B2/B4/B12
WCDMA:B2/B4/B5

Australia

T399L-AUFB5:
LTE CAT1
FDD:B1/B2/B3/B4/B5/B7/B8/B28
TDD:B40
WCDMA:B1/B2/B5/B8
GSM: 850/900/1800/1900MHz

T399L-AUR
GSM:B2/B3/B5/B8
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD:B38/B40/B41

Japan

T399L-JFB5:
LTE CAT1
FDD::B1/B3/ B8/B18/ B19/B26

Others

OTA/FOTA

FOTA (T399L)

Certification

CE, CITC

Supported Peripherals

RFID

iButton

Relay (12 V/24 V)

Buzzer

BLE temperature & humidity sensor

Ultrasonic fuel level sensor

Fuel level sensor

Digital temperature sensor

Battery

Accessories

  • relays

    12V/24V relays

  • asuf105

    Ultrasonic Fuel Sensor

  • accessories

    Digital temperature sensor

  • a53

    A53 fuel level sensor

  • accessories

    RFID reader

  • accessories

    iButton reader

  • batteries

    High temperature batteries

  • antenna

    External GPS antenna

  • buzzer

    Buzzer

  • bluetooth sensor

    Bluetooth temperature and humidity sensor

  • A95

    Bluetooth beacon 401

  • A95

    Bluetooth beacon 402

  • wireless fuel sensor

    Escort wireless fuel monitoring
