| GSM |
4G (LTE CAT M1/NB1), 3G, 2G
|
| GNSS antenna |
GPS
|
| Iridium SBD |
√
|
| Wi-Fi positioning |
x
|
| Wi-Fi |
√
|
| Wi-Fi hotspot |
x
|
| Bluetooth |
x
|
| LoRa |
x
|
| Positioning mode |
–
|
| Positioning accuracy |
2.5m
|
| Sensitivity |
-161 dB
|
| Power supply |
DC 11.4–36 V/1.5 A
|
| Backup battery |
400 mAh/3.7V
|
| Power consumption |
Current in sleep mode: 11 mA
|
| Charging |
–
|
| Working hour |
45 hours in power-saving mode; 4 hours in normal mode
|
| Dimensions |
105 x 65 x 26 mm
|
| Weight |
190g
|
| Operating temperature |
-10°C to 55°C
|
| Operating humidity |
5% to 95%
|
| Ingress protection |
–
|
| Memory |
8 MB
|
| Europe |
T622G-F9
GSM/GPRS: 850/900/1800/1900 MHz
UMTS/HSDPA: 800/850/900/1900/2100 MHz
T622E-F9
GSM/GPRS: 850/900/1800/1900 MHz
Cat M1/Cat NB2:
LTE‐FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14(Cat-M1only）
/B18/B19/B20/B25/B26/B27（Cat M1 only）/B28/ B66/B71（Cat NB2 only）/B85
Iridium satellite
Frequency band: 1616–1626.5 MHz
Duplex mode: TDD
Multiplexing mode: TDMA/FDMA
|
| America |
T622G-F9
GSM/GPRS: 850/900/1800/1900 MHz
UMTS/HSDPA: 800/850/900/1900/2100 MHz
T622E-F9
GSM/GPRS: 850/900/1800/1900 MHz
Cat M1/Cat NB2:
LTE‐FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14(Cat-M1only）
/B18/B19/B20/B25/B26/B27（Cat M1 only）/B28/ B66/B71（Cat NB2 only）/B85
Iridium satellite
Frequency band: 1616–1626.5 MHz
Duplex mode: TDD
Multiplexing mode: TDMA/FDMA
|
| Thailand |
T622G-F9
GSM/GPRS: 850/900/1800/1900 MHz
UMTS/HSDPA: 800/850/900/1900/2100 MHz
T622E-F9
GSM/GPRS: 850/900/1800/1900 MHz
Cat M1/Cat NB2:
LTE‐FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14(Cat-M1only）
/B18/B19/B20/B25/B26/B27（Cat M1 only）/B28/ B66/B71（Cat NB2 only）/B85
Iridium satellite
Frequency band: 1616–1626.5 MHz
Duplex mode: TDD
Multiplexing mode: TDMA/FDMA
|
| Australia |
T622G-F9
GSM/GPRS: 850/900/1800/1900 MHz
UMTS/HSDPA: 800/850/900/1900/2100 MHz
T622E-F9
GSM/GPRS: 850/900/1800/1900 MHz
Cat M1/Cat NB2:
LTE‐FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14(Cat-M1only）
/B18/B19/B20/B25/B26/B27（Cat M1 only）/B28/ B66/B71（Cat NB2 only）/B85
Iridium satellite
Frequency band: 1616–1626.5 MHz
Duplex mode: TDD
Multiplexing mode: TDMA/FDMA
|
| Japan |
T622G-F9
GSM/GPRS: 850/900/1800/1900 MHz
UMTS/HSDPA: 800/850/900/1900/2100 MHz
T622E-F9
GSM/GPRS: 850/900/1800/1900 MHz
Cat M1/Cat NB2:
LTE‐FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14(Cat-M1only）
/B18/B19/B20/B25/B26/B27（Cat M1 only）/B28/ B66/B71（Cat NB2 only）/B85
Iridium satellite
Frequency band: 1616–1626.5 MHz
Duplex mode: TDD
Multiplexing mode: TDMA/FDMA
|
| Global |
T622G-F9
GSM/GPRS: 850/900/1800/1900 MHz
UMTS/HSDPA: 800/850/900/1900/2100 MHz
T622E-F9
GSM/GPRS: 850/900/1800/1900 MHz
Cat M1/Cat NB2:
LTE‐FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14(Cat-M1only）
/B18/B19/B20/B25/B26/B27（Cat M1 only）/B28/ B66/B71（Cat NB2 only）/B85
Iridium satellite
Frequency band: 1616–1626.5 MHz
Duplex mode: TDD
Multiplexing mode: TDMA/FDMA
|
| OTA/FOTA |
OTA
|
| Certification |
CE (T622G-F9), TELEC (T622G-F9)
|

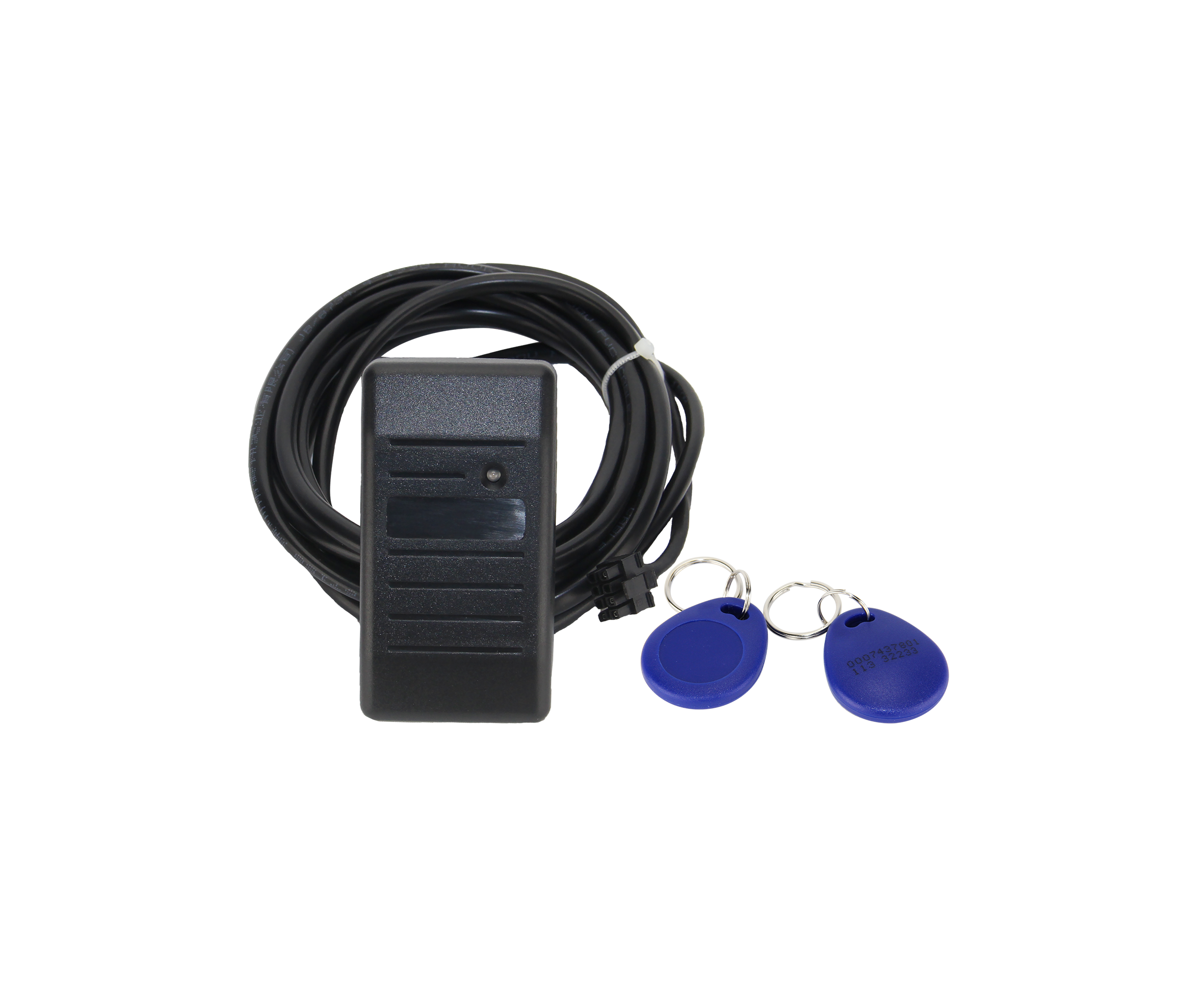

| RFID |
√
|

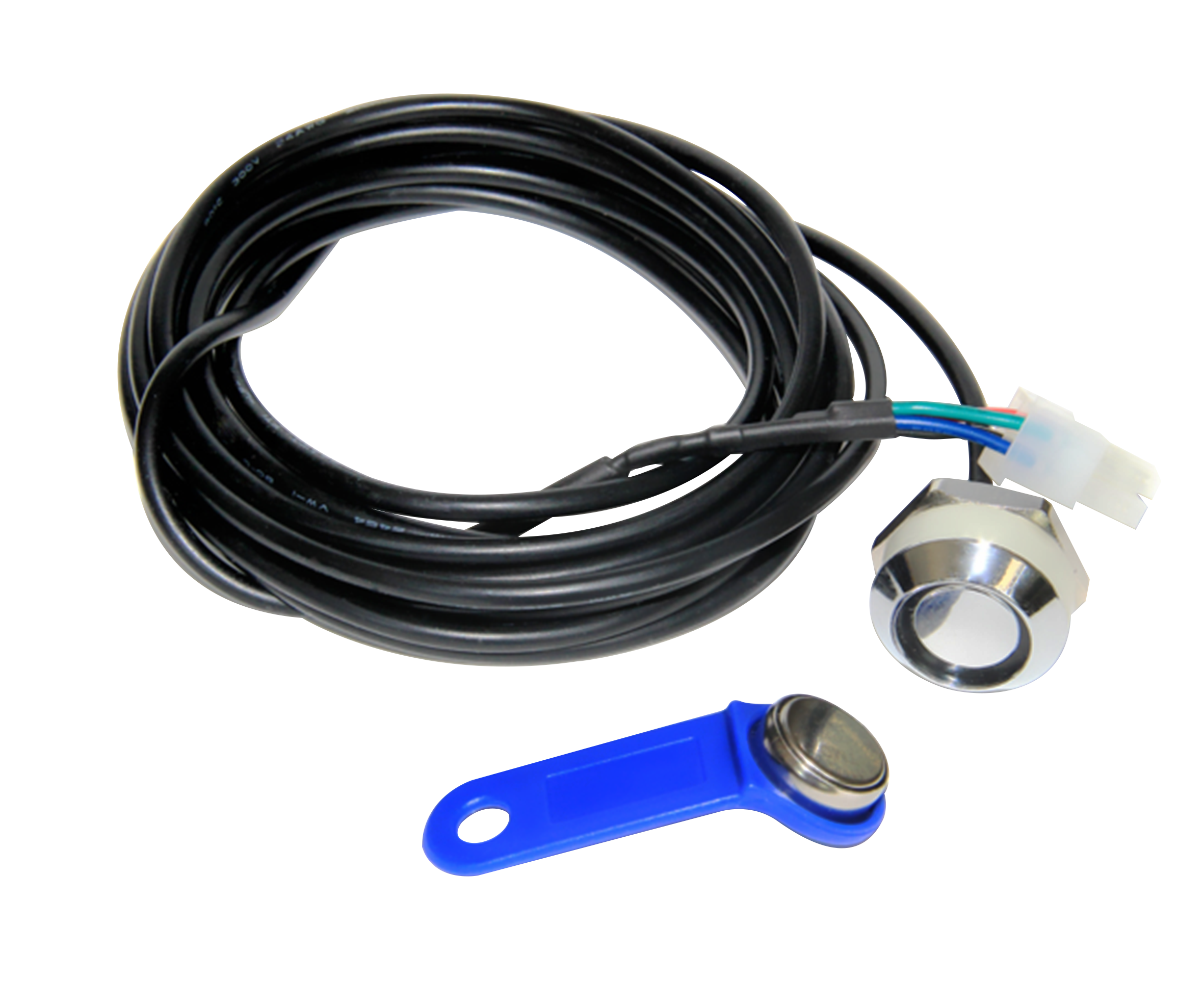

| iButton |
×
|

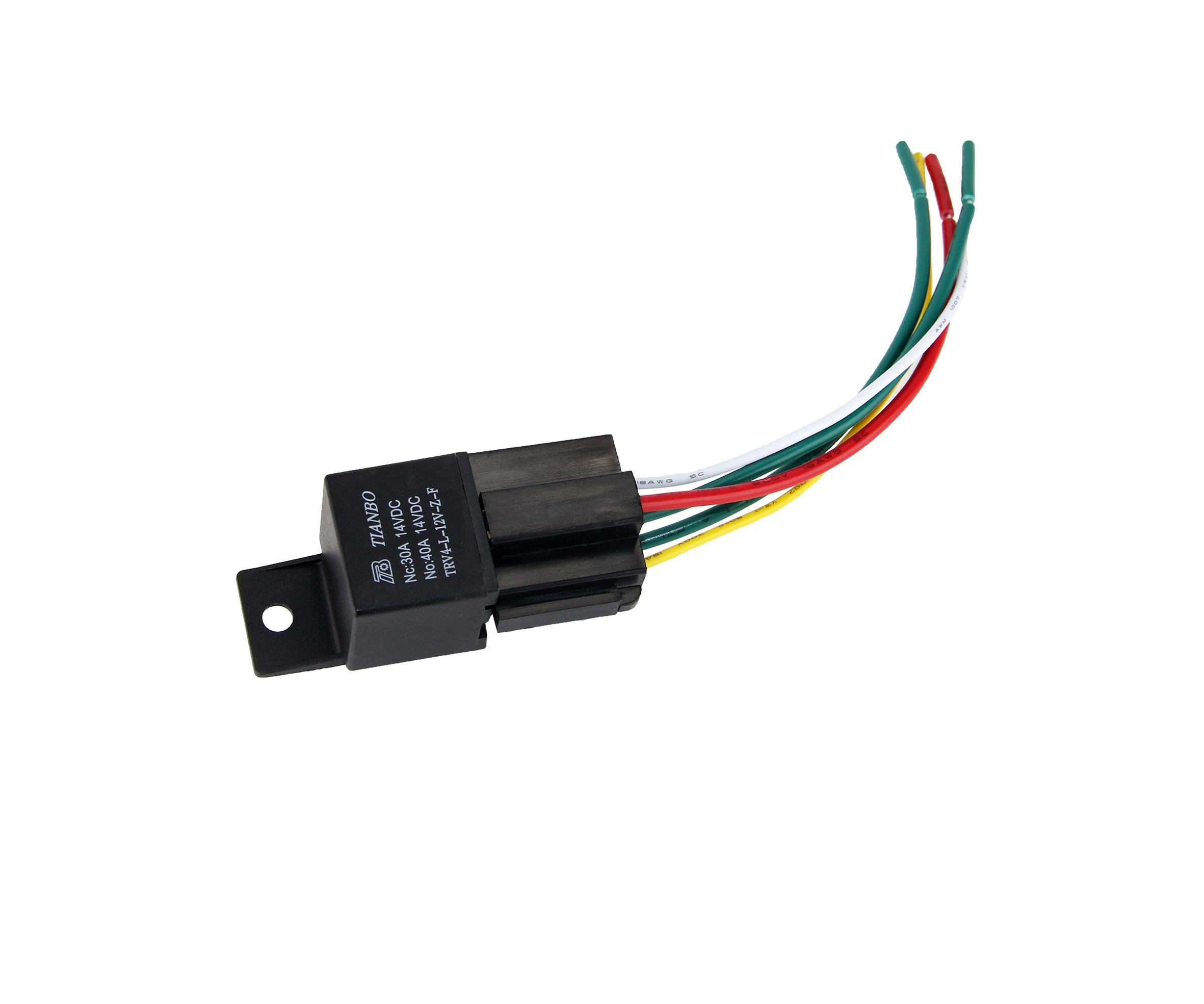

| Relay (12 V/24 V) |
√
|
| Buzzer |
×
|

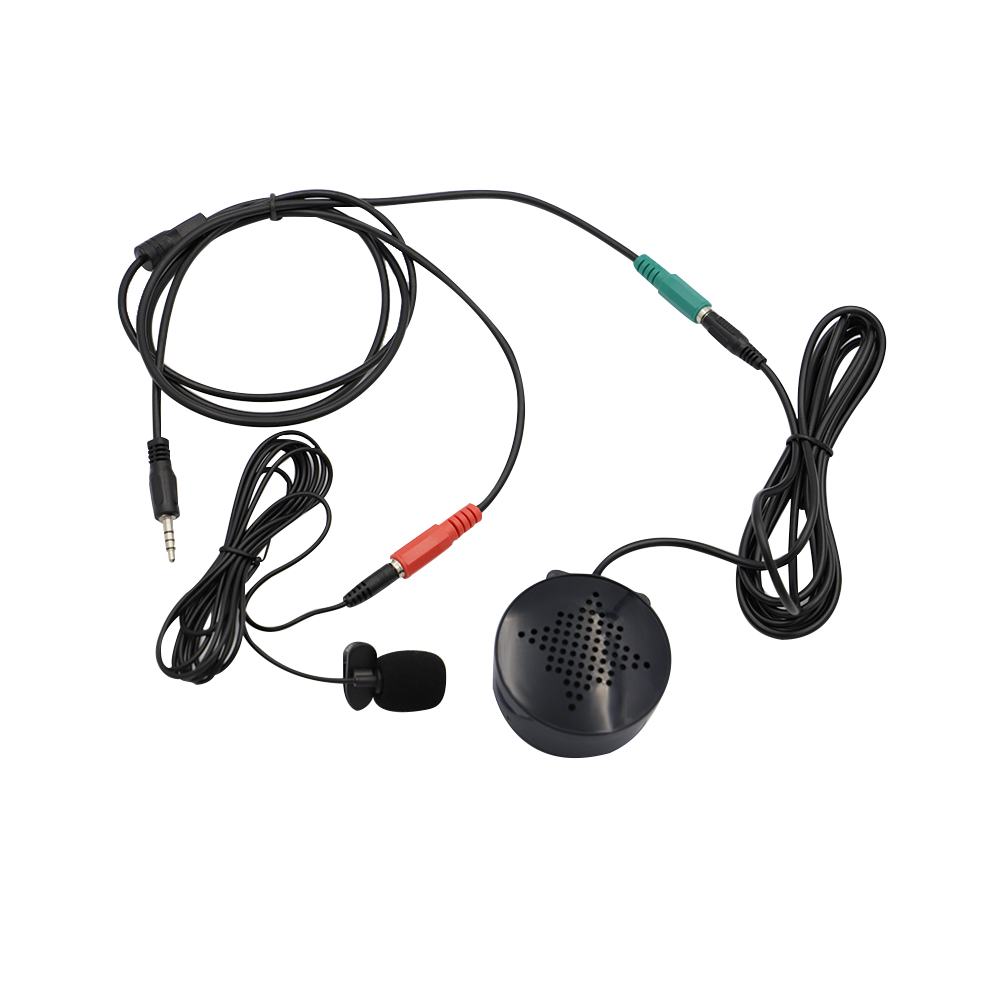

| Microphone & speaker |
×
|
| Intercom handle |
×
|
| BLE temperature & humidity sensor |
×
|

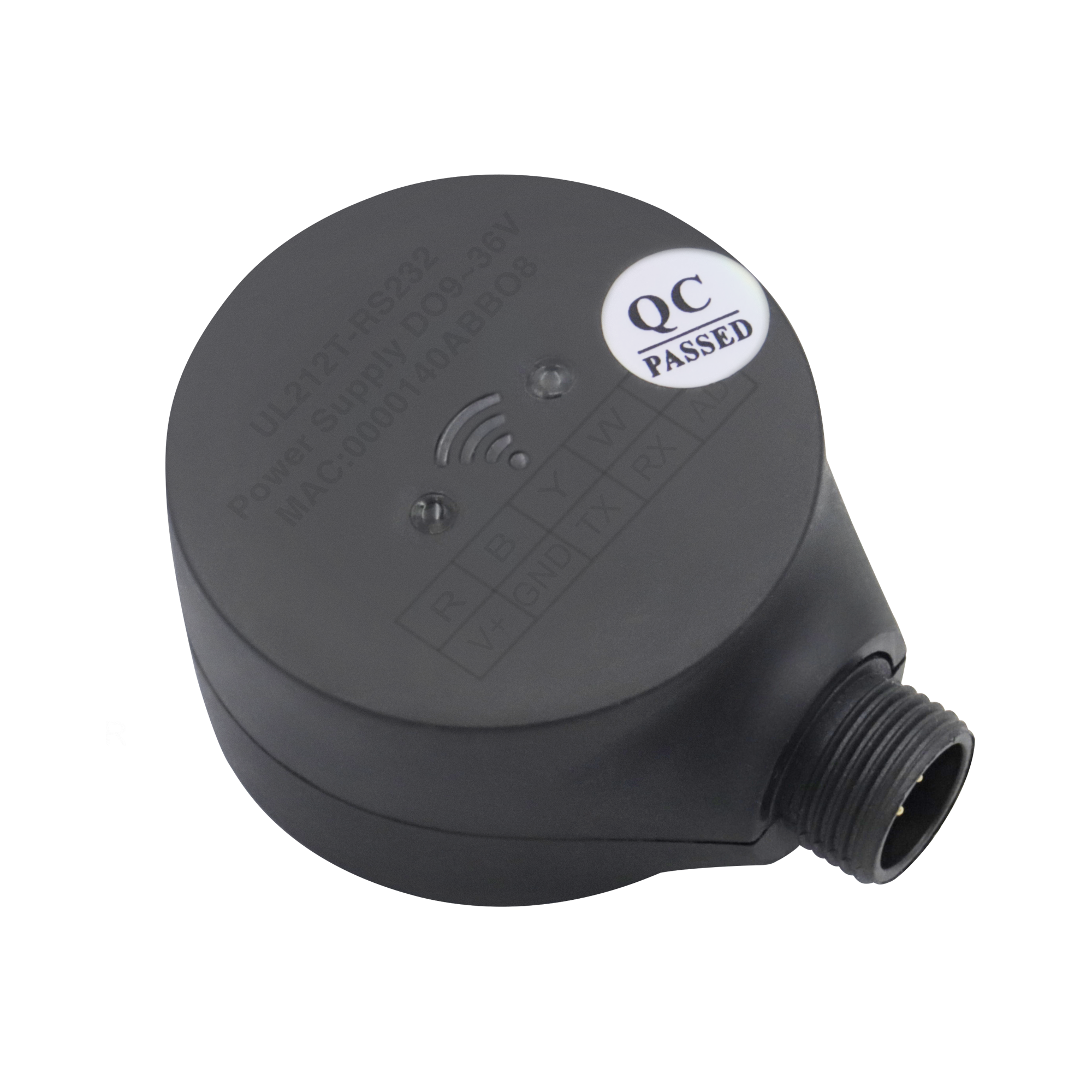

| Ultrasonic fuel level sensor |
√
|

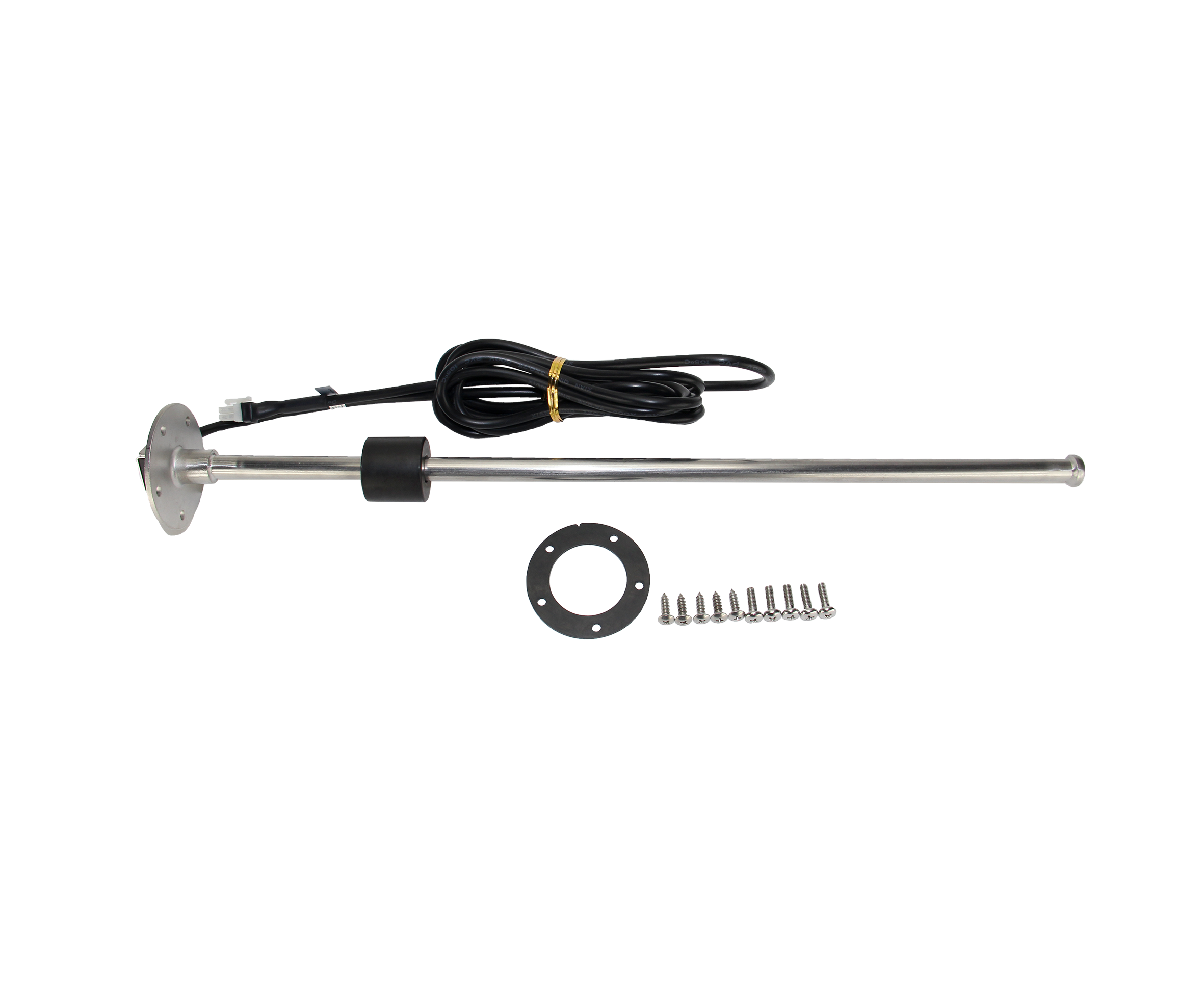

| Fuel level sensor |
×
|
| Capacitive oil sensor |
×
|

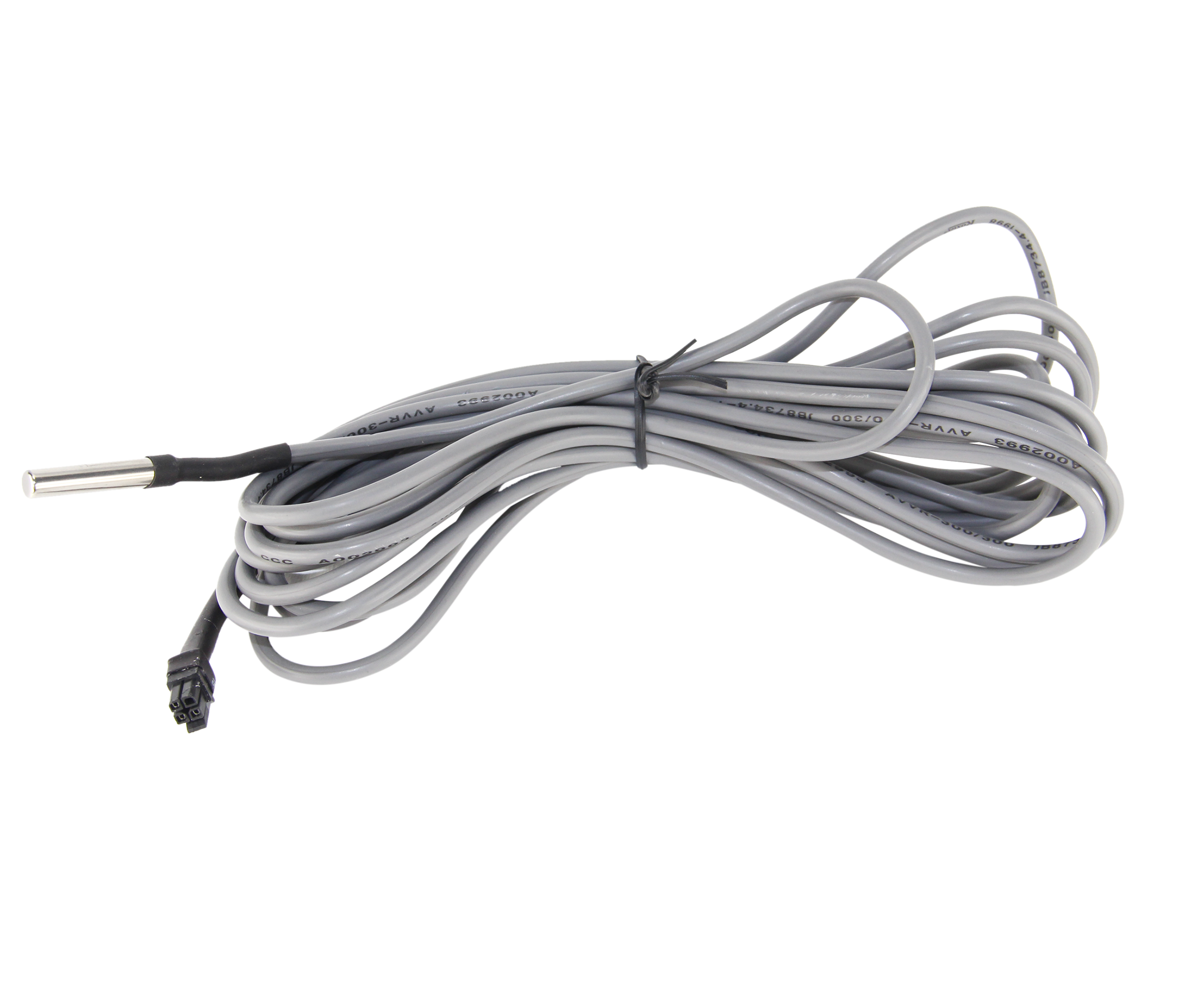

| Digital temperature sensor |
×
|
| Tire pressure sensor |
×
|

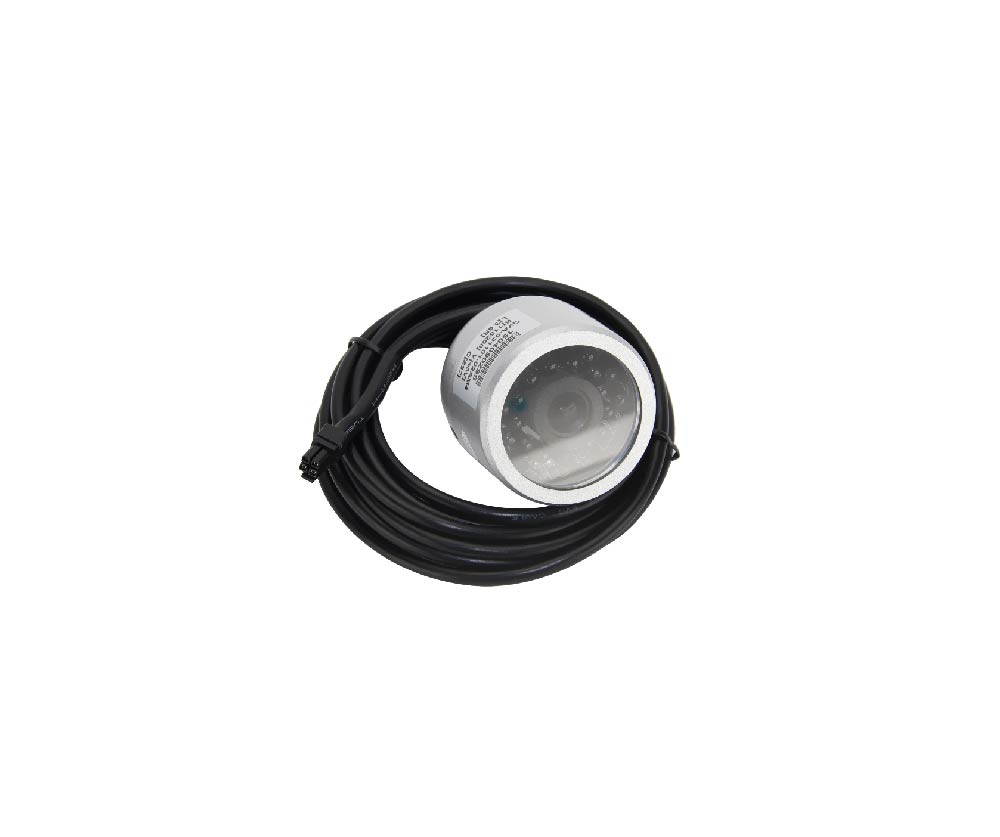

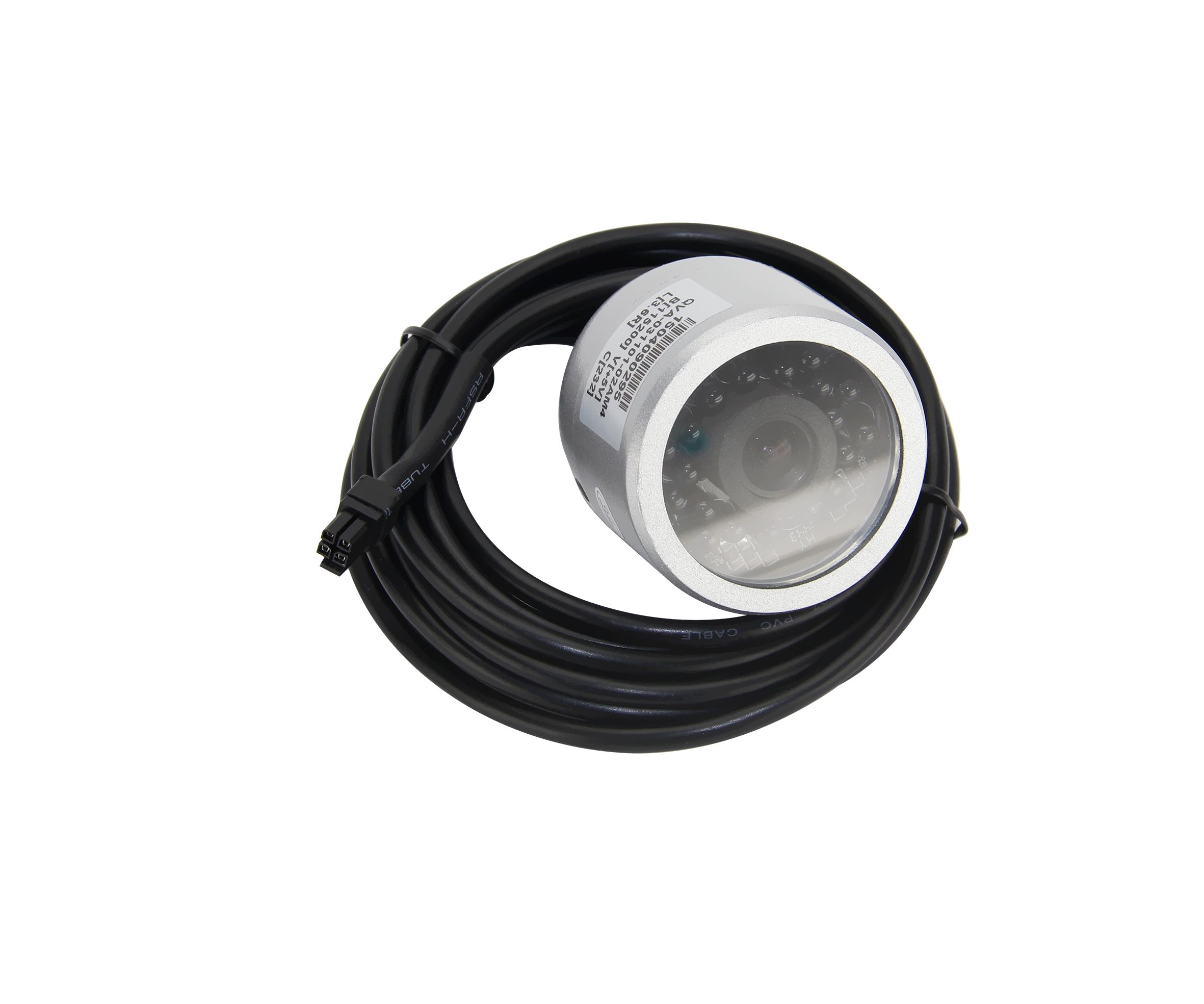

| Camera |
√
|

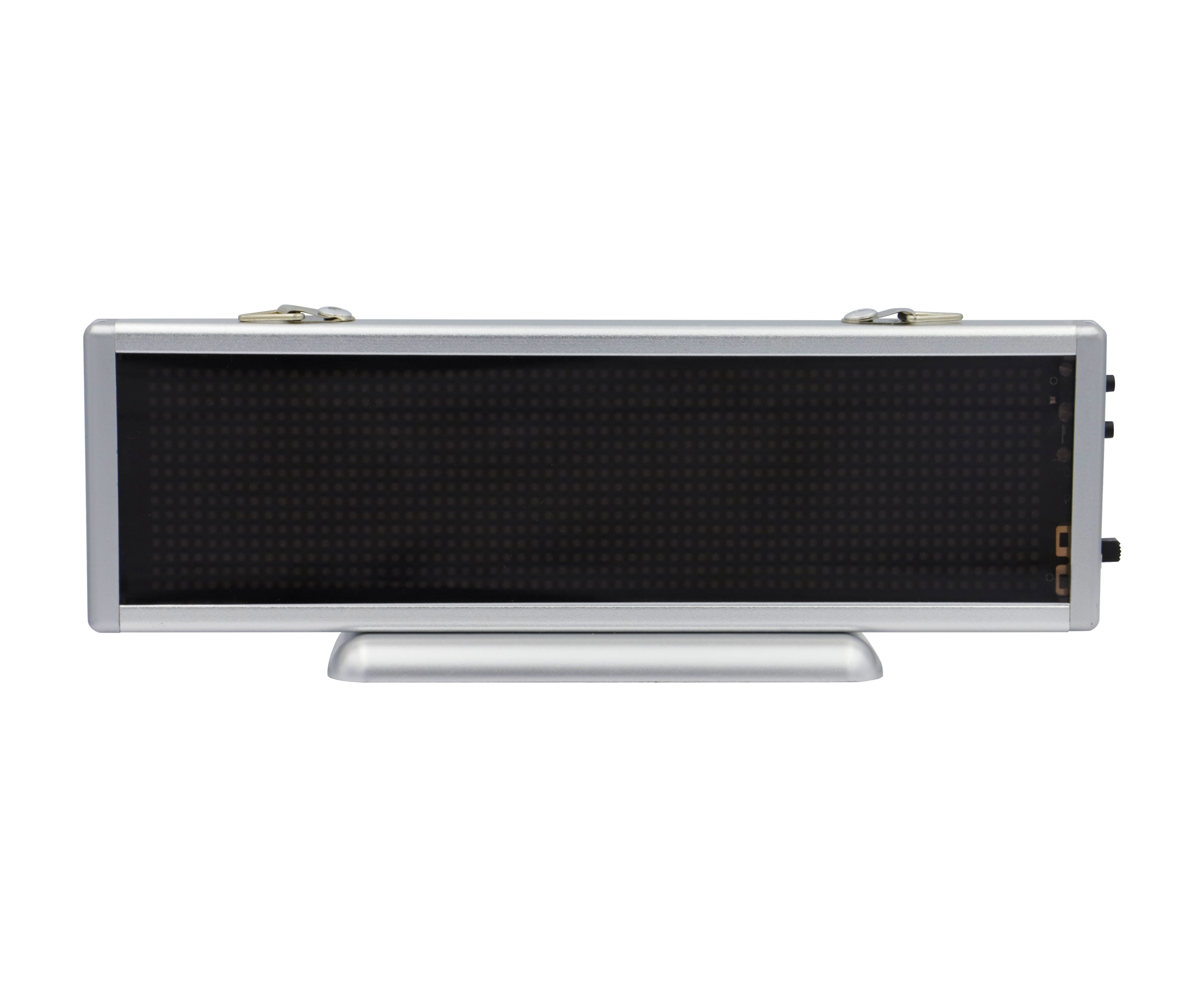

| Display |
×
|
| Battery |
×
|
| Remote control |
×
|
