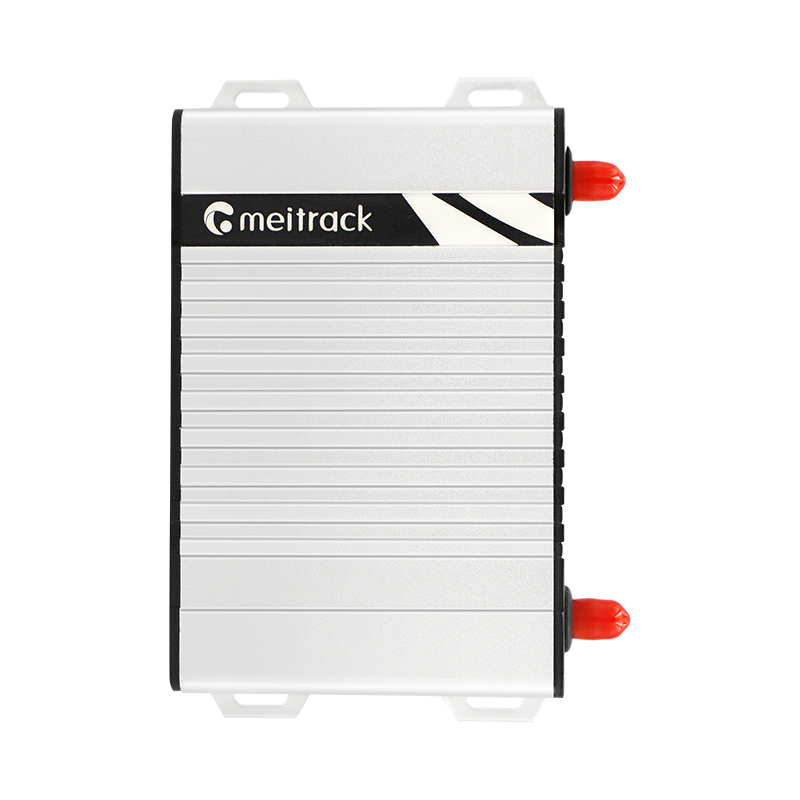

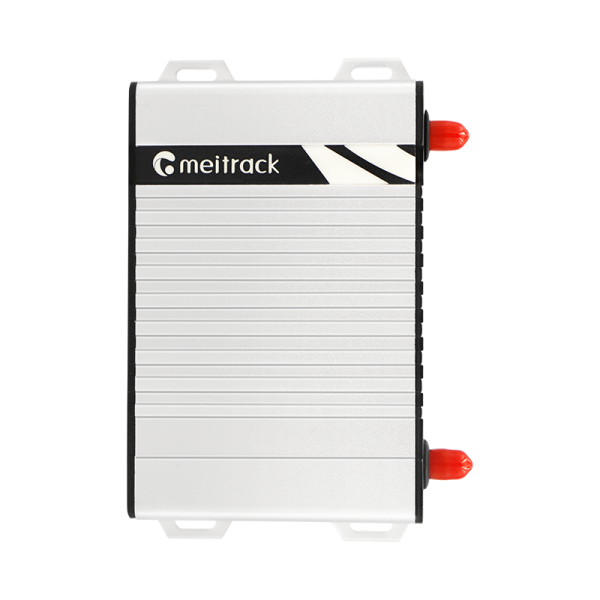

T633L

  • L1+L5+DR (optional)
  • High-Precision Impact/Rollover Detection
  • CAN Bus Interface
  • Flexible configurable I/0
Add to Wishlist
Category: 4G (LTE Cat 1/4) 2G GNSS FOTA L1 + L5 Dead Reckoning RS232 RS485 CAN Bus CE
Trust Badge Image

Features





Specifications

Communication and Positioning

GSM

4G (LTE Cat 1/4), 3G, 2G

GNSS antenna

GPS/GLONASS/BEIDOU/GALILEO

Bluetooth

Positioning accuracy

2.5m

Power

Power supply

DC 11.4–36 V/1.5 A

Backup battery

400 mAh/3.7 V

Power consumption

Current in sleep mode: 11 mA

Working hour

45 hours in power-saving mode; 4 hours in normal mode

Physical Specifications

Dimensions

106 x 24.5 x 70 mm

Weight

190g

Operating Environment

Operating temperature

-20°C to 55°C(normal-temperature battery); -5°C to 75°C(high-temperature battery)

Operating humidity

5% to 95%

Functions

Memory

8 MB

Frequency Bands

Global

T633L-G:
LTE CAT1:
FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
TDD:B38/B39/B40/B41
WCDMA:B1/B2/B4/B5/B6/B8/B19
GSM:850/900/1800/1900MHz

Africa/Europe/Middle East

T633L-E:
GSM:B3/B8
WCDMA:B1/B8
FDD:B1/B3/B7/B8/B20/B28A

T633L-ER
GSM:B2/B3/B5/B8
LTE-FDD:B1/B3/B5/B7/B8/B20/B28
LTE-TDD:B38/B40/B41

Americas

T633L-A: LTE-FDD: B2/B4/B12, WCDMA: B2/B4/B5

Australia

T633L-AUR: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66, LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8

T633L-AU: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE-TDD: B40,
WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8

Japan

T633L-J: LTE-FDD: B1/B3/B8/B18/B19/B26

Others

Certification

CE

Supported Peripherals

RFID

iButton

Relay (12 V/24 V)

Buzzer

Microphone & speaker

Ultrasonic fuel level sensor

Fuel level sensor

Digital temperature sensor

Camera

Display

Accessories

  • rs232 camera

    RS232 camera

  • accessories

    iButton reader

  • accessories

    RFID reader

  • accessories

    Microphone + speaker + connector cable

  • relays

    12V/24V relays

  • buzzer

    Buzzer

  • ultrasonicfuel sensor

    Ultrasonic Fuel Sensor (Range 100/250cm)

  • a52

    Digital temperature sensor

  • a53

    Fuel sensor (voltage AD)

  • a81

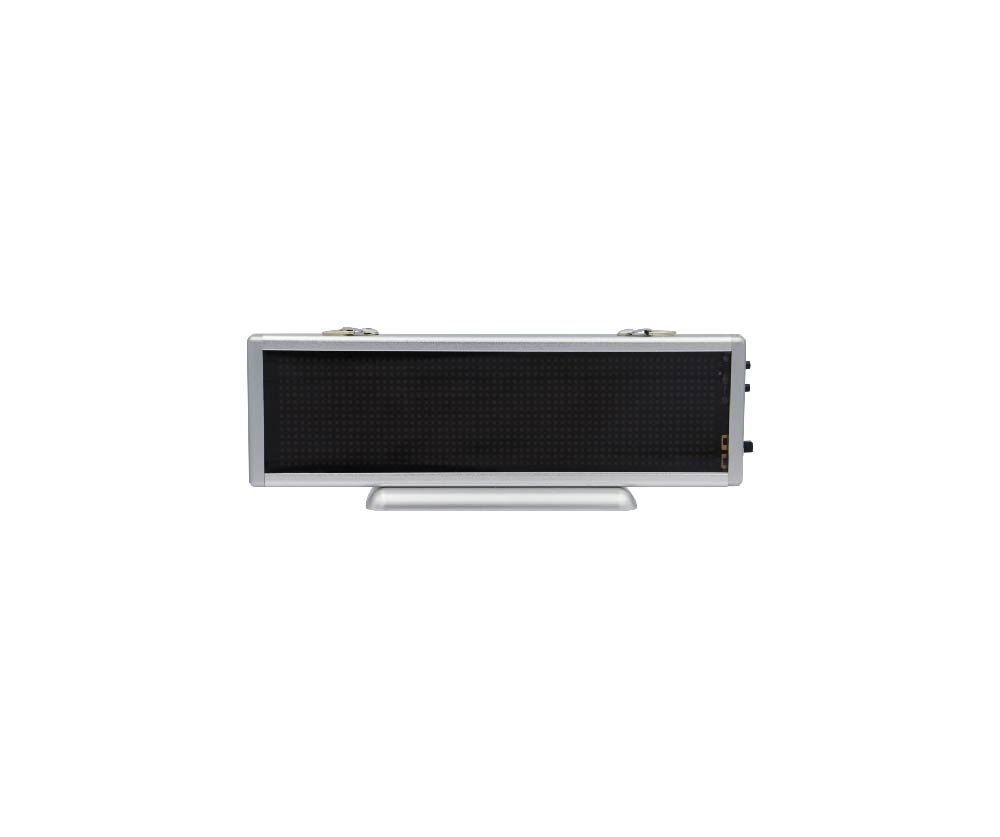

    A81 LED Nixie Tube Display

  • fingerprint reader

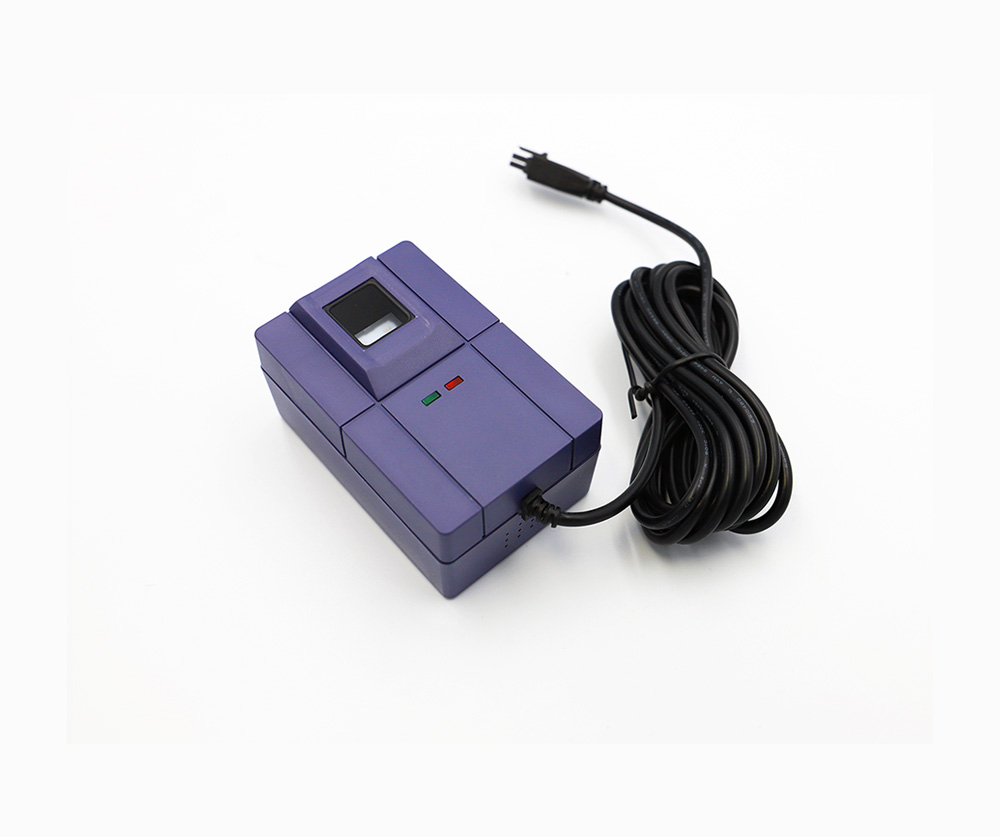

    Fingerprint Reader

Download

Product User Guide

T633L flyer

Meitrack T633L Product User Guide

V2.4

2023-03-20

Protocol

Meitrack T633L GPRS Protocol

V2.0

2024-02-26

Meitrack SMS Protocol

V3.0

2022-7-18

Aided Software

Meitrack Manager (New Version)

V6.0

2024-03-26

Meitrack Manager User Guide (New Version)

V2.0

2023-10-23

OTA User Guide

V1.3

2021-12-29

STM32_USB_Driver

2021-12-29

Meitrack Family GPS Tracking System

Meitrack MS03 User Guide

V1.0

2022-1-20

Meitrack MS03 for iOS

V3.1

2022-1-20

Meitrack MS03 for Android

V2.5

2022-1-20

Accessories User Guide

Meitrack ASPC102 Passenger Flow Sensor User Guide

V1.2

2023-7-26

Meitrack ASUF103 & ASUF104 Bluetooth Ultrasonic Fuel Level Sensor User Guide

V1.3

2023-6-21

Meitrack Ultrasonic Fuel Level Sensor User Guide

V2.1

2022-9-17

Meitrack RFID User Guide

V2.0

2022-9-22

Meitrack iButton User Guide

V1.2

2024-02-04

Meitrack Fuel Level Sensor User Guide

V1.6

2022-1-20

Meitrack Temperature Sensor User Guide

V1.4

2022-1-20

Meitrack Magnetic Card Reader User Guide

V1.0

2019-4-26

Accessories App

A76 configuration tool

ASUF400 configuration tool
