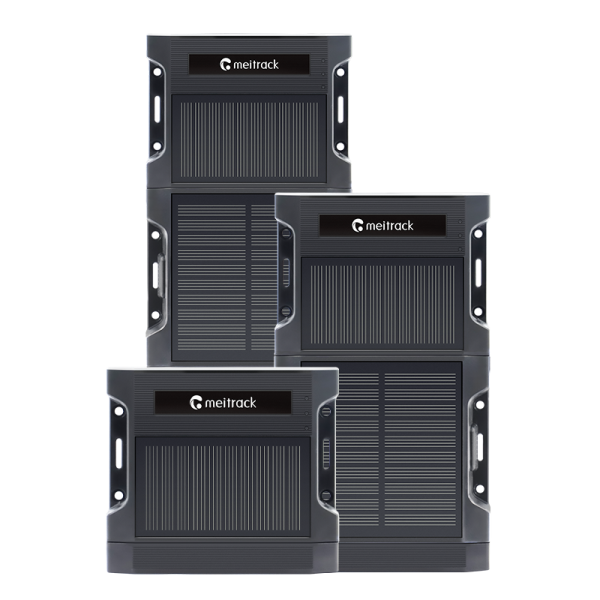

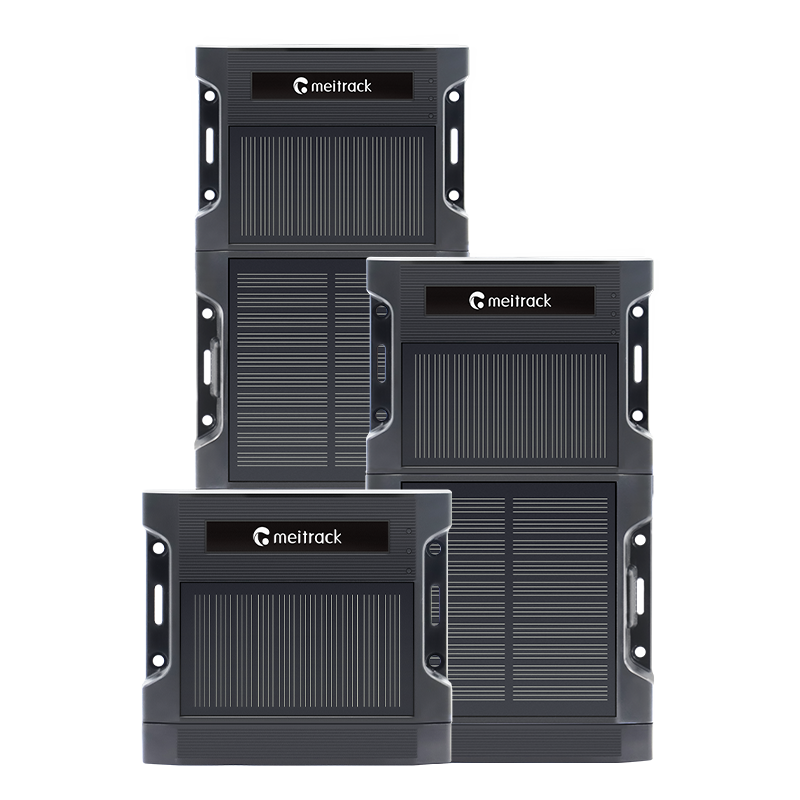

TA255 Series

  • Unique Stackable-&-Scalable Design
  • Up to 22400 mAh Battery
  • Solar Charging
  • FOTA Support
Add to Wishlist
Trust Badge Image

Features





Specifications

GSM

4G (LTE Cat 1/M1/NB2),2G

GNSS antenna

GSM (internal FPC antenna), GPS (internal ceramic antenna)

Wi-Fi

802.11 b/g/n. Frequency: 2.4 GHz.

Bluetooth

Compliant with Bluetooth 5.0/4.2

Positioning accuracy

2.5M

Sensitivity

-162dBm

Charging

Magnetic charging: 5.5 V/2 A
Charging by using a battery box (I/O cable): 11.4–60 V
Solar charging current: Charging the tracker by using a solar panel: MAX 70 mA
Charging a battery box by using a solar panel: MAX 100 mA

Dimensions

tracker: 71 mm × 95 mm × 27 mm (L × W × H)

Operating temperature

Operating temperature (built-in battery): -20℃ to 60℃
Storage temperature (exclude battery): -40℃ to 80℃

Ingress protection

IP67

LED indicator

Green LED indicator showing the GSM signal
Blue LED indicator showing the GPS signal
Red LED indicator showing the charging status

Memory

8 MB flash

Built-in Sensor

3-axis accelerometer (used to determine whether the tracker vibrates, is moving, or stops moving)
Drop detection sensor

Europe

TA255E
EGPRS: 850/900/1800/1900Mhz
Cat M1/Cat NB2:
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14 (Cat M1 only) / B18/B19/B20/B25/B26/B27 (Cat M1 only) /
B28/B66/B71 (Cat NB2 only) /B85

TA255L-E
GSM:850/900/1800/1900MHz
LTE-FDD:B1/B3/B5/B7/B8/B20/ B28

Australia

TA255L-AU
GSM:850/900/1800/1900MHz
LTE-FDD:B2/B3/B4/B5/B7/B8/B28/ B66

OTA/FOTA

Certification

CE

Interfaces

Dual sim card: Dual card single waiting, Nano-sim and E-sim (reserved)
USB: Micro-USB

RFID

iButton

Relay (12 V/24 V)

Buzzer

×

Microphone & speaker

×

Intercom handle

×

BLE temperature & humidity sensor

Ultrasonic fuel level sensor

Fuel level sensor

Capacitive oil sensor

×

Digital temperature sensor

Tire pressure sensor

×

Camera

×

Display

×

Battery

Remote control

×

Accessories

  • battery box

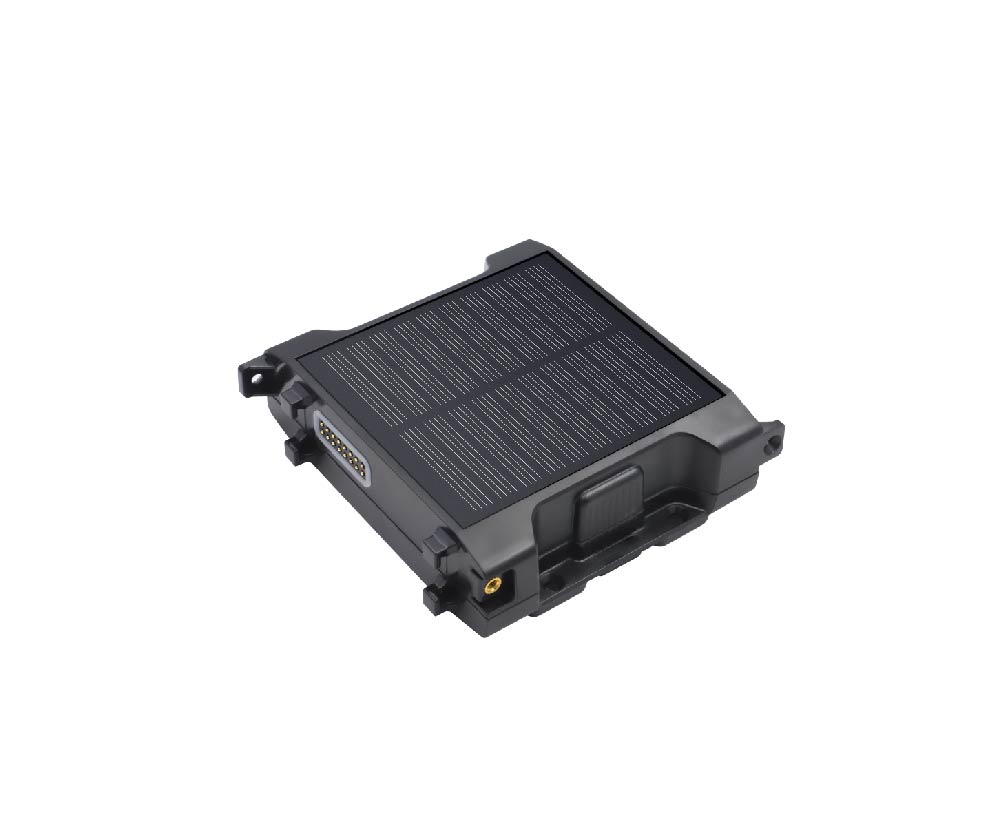

    Battery box

  • accessories

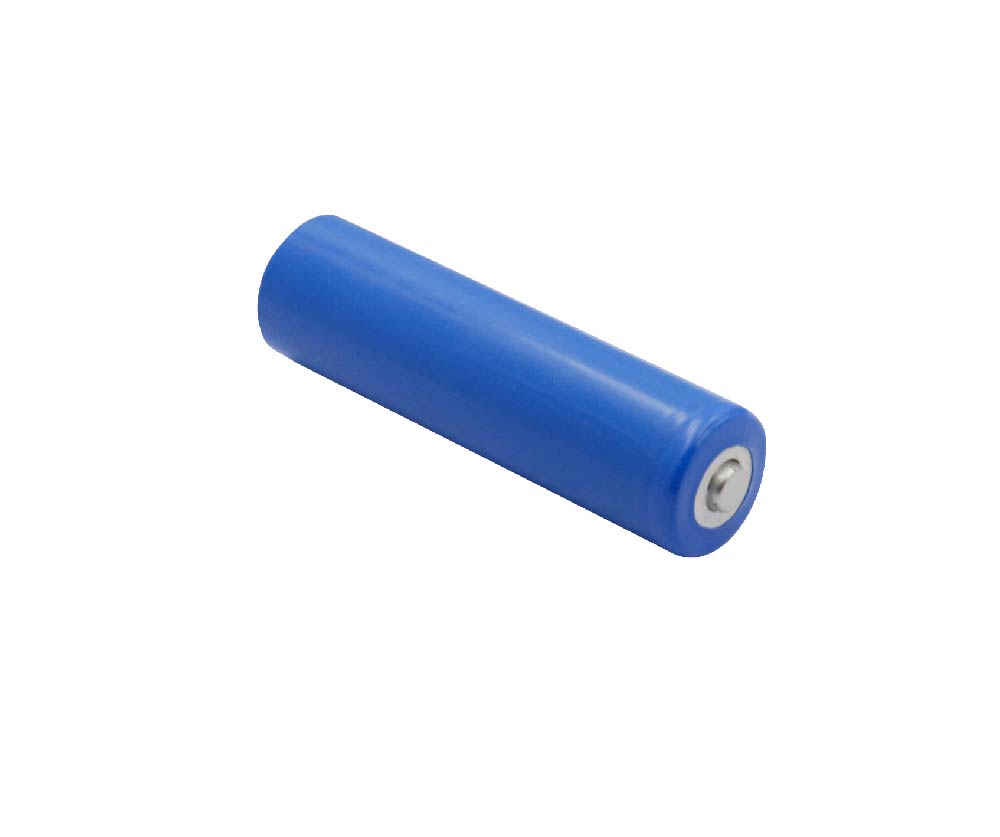

    Battery

  • accessories

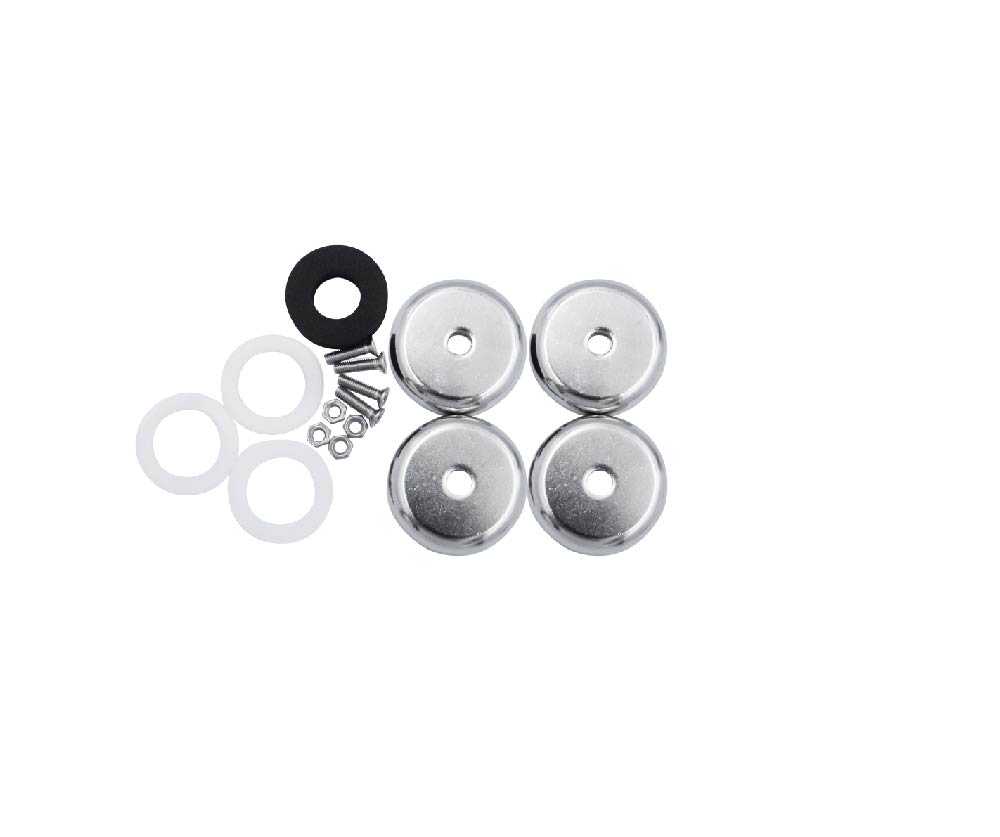

    Magnet kit

  • ast101

    Bluetooth temperature and humidity sensor

  • 401

    Bluetooth beacon 401

  • 402

    Bluetooth beacon 402

  • a53

    Fuel sensor (voltage AD)

  • accessories

    12V/24V relays

  • a52

    Digital temperature sensor

  • fuel sensor 103

    Ultrasonic Fuel Sensor (Range 250cm)

  • fuel sensor 104

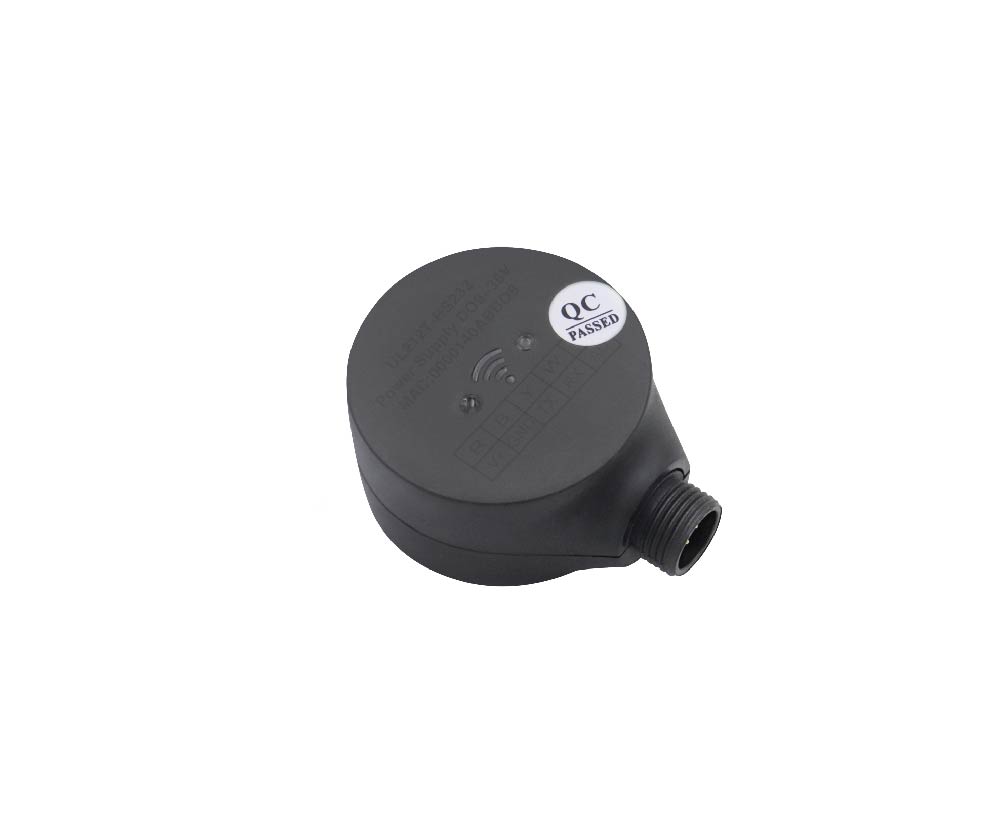

    Ultrasonic Fuel Sensor (Range 400cm)

  • accessories

    Ultrasonic fuel level sensor 105

  • accessories

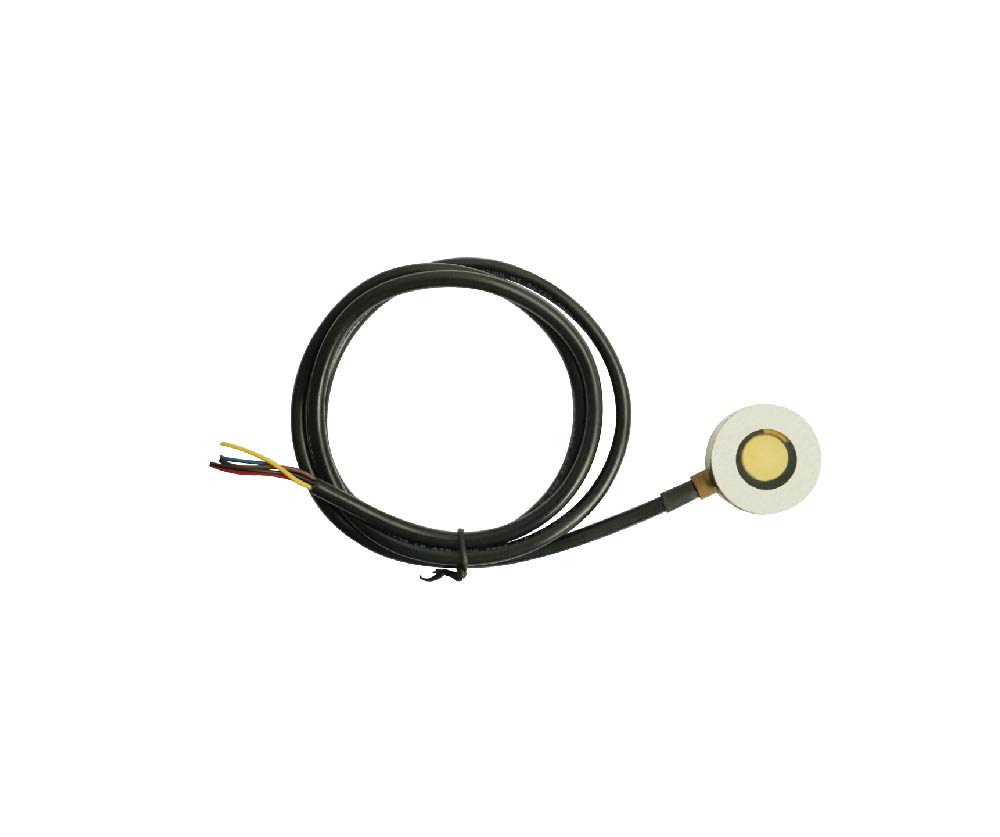

    Ultrasonic fuel level sensor A76

  • accessories

    iButton reader

  • accessories

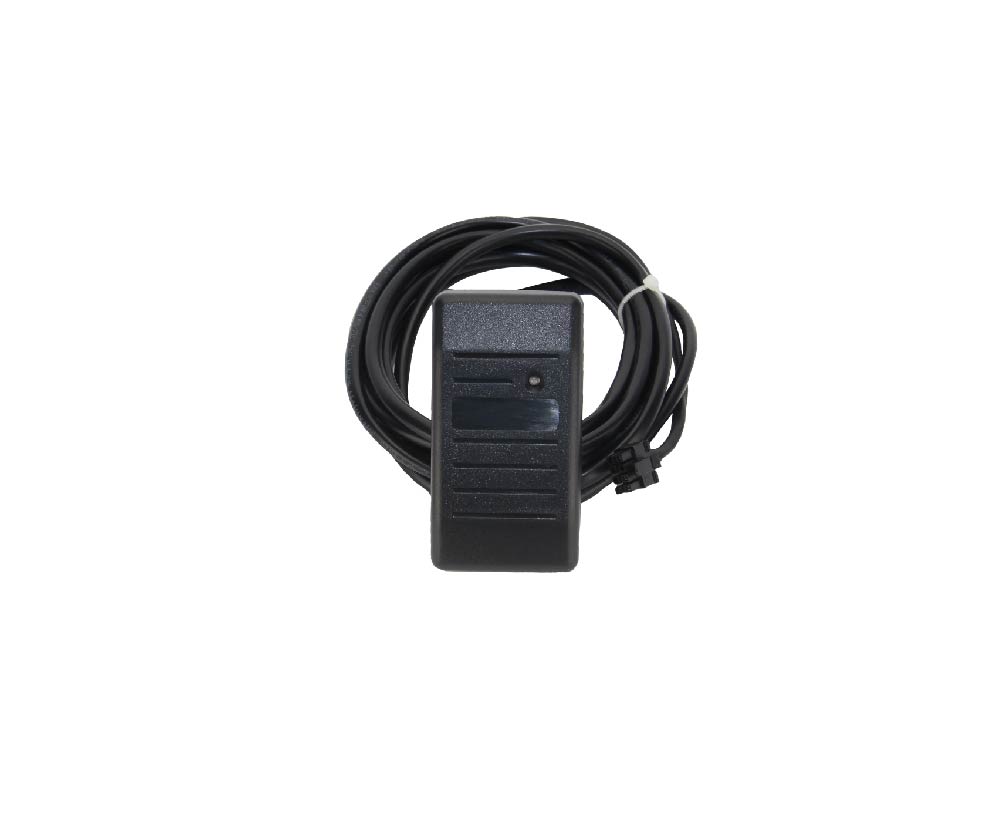

    RFID reader
