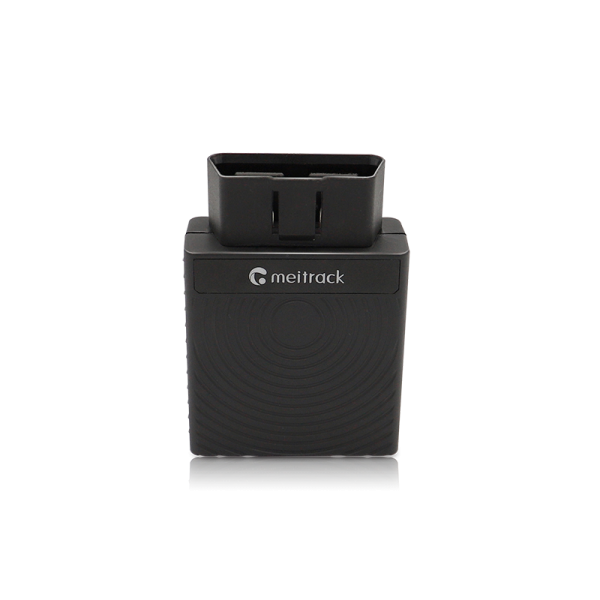

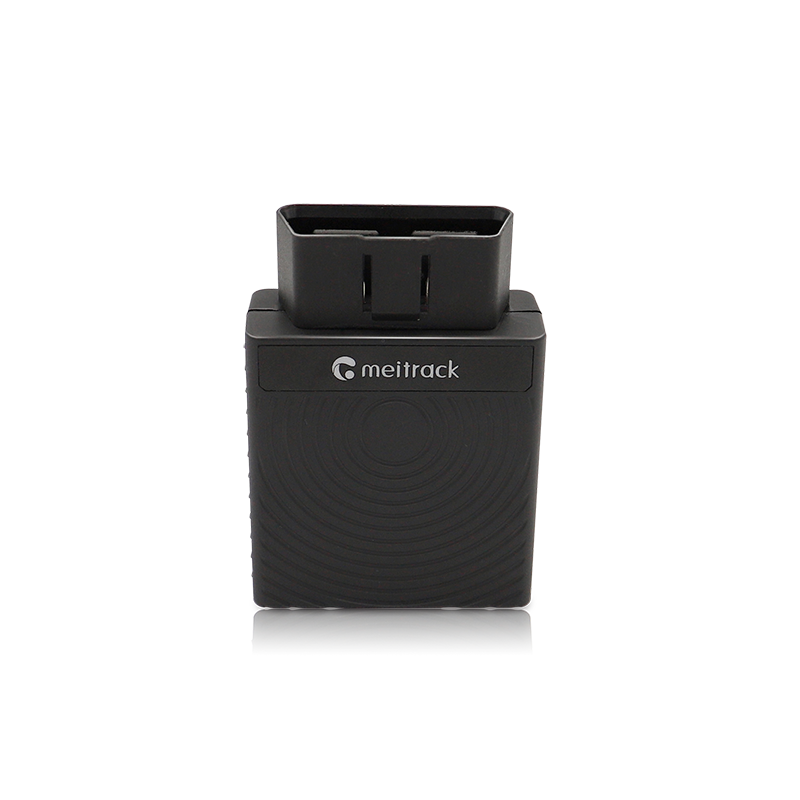

Plug and Play Vehicle Tracker with an OBD II Plug
Functions as an in-vehicle WiFi hotspot, allowing up to 8 WiFi-enabled devices to connect, providing passengers with internet access on the go.
An easily-installed tracker for private cars and other motor vehicles equipped with a cigarette lighter receptacle.
Read a wide range of OBD data including driving behavior, fuel, mileage, speed, and temperature etc.
An instant alert will be received when the device is removed.
| GSM | 4G (LTE Cat 1/4/M1/NB2), 3G,2G |
|---|---|
| GNSS antenna | – |
| Iridium SBD | – |
| Wi-Fi positioning | – |
| Wi-Fi | – |
| Wi-Fi hotspot | 2.4 GHz WiFi hotspot |
| Bluetooth | Support Bluetooth 4.2 and Bluetooth 5.0 |
| LoRa | – |
| Positioning mode | – |
| Positioning accuracy | 2.5m |
| Sensitivity | – |
| Power supply | DC 11.5–36 V / 1 A |
| Backup battery | (optional) 200 mAh/3.7 V |
| Power consumption | Current in standby mode: 100 mA |
| Charging | (a)Magnetic (b)Wireless |
| Working hour | Power-saving mode: 20 hours; Normal working mode: 2 hour |
| Dimensions | 67 mm x 51 mm x 23.5 mm |
| Weight | 60g |
| Operating temperature | -20°C～55°C |
| Operating humidity | 5% to 95% |
| Ingress protection | – |
| Memory | 8 MB buffer |
| Europe | TC68L-E |
| America | No WiFi version band： |
| Thailand | – |
| Australia | No WiFi version band： |
| Japan | No WiFi version band： |
| Global | TC68E: |
| OTA/FOTA | FOTA |
| Certification | CE, CITC |
| RFID | × |
| iButton | × |
| Relay (12 V/24 V) | × |
| Buzzer | × |
| Microphone & speaker | × |
| Intercom handle | × |
| BLE temperature & humidity sensor | × |
| Ultrasonic fuel level sensor | × |
| Fuel level sensor | × |
| Capacitive oil sensor | × |
| Digital temperature sensor | × |
| Tire pressure sensor | × |
| Camera | × |
| Display | × |
| Battery | √ |
| Remote control | × |
Product User Guide | ||||
|---|---|---|---|---|
TC68 Series flyer | ||||
Meitrack TC68L Product User Guide | V2.1 | 2022-4-16 | ||
Meitrack TC68E Product User Guide | V1.0 | 2022-10-28 | ||
Protocol | ||||
|---|---|---|---|---|
Meitrack TC68 Series GPRS Protocol | V1.1 | 2021-8-4 | ||
Meitrack SMS Protocol | V3.0 | 2022-7-18 | ||
Aided Software | ||||
|---|---|---|---|---|
Meitrack Manager (New Version) | V6.0 | 2024-03-26 | ||
Meitrack Manager User Guide (New Version) | V2.0 | 2023-10-23 | ||
OTA User Guide | V1.3 | 2021-12-29 | ||
MyCOM | ||||
STM32_USB_Driver |
| 2021-12-29 | ||
Meitrack Family GPS Tracking System | ||||
|---|---|---|---|---|
Meitrack MS03 User Guide | V1.0 | 2022-1-20 | ||
Meitrack MS03 for iOS | V3.1 | 2022-1-20 | ||
Meitrack MS03 for Android | V2.5 | 2022-1-20 | ||
