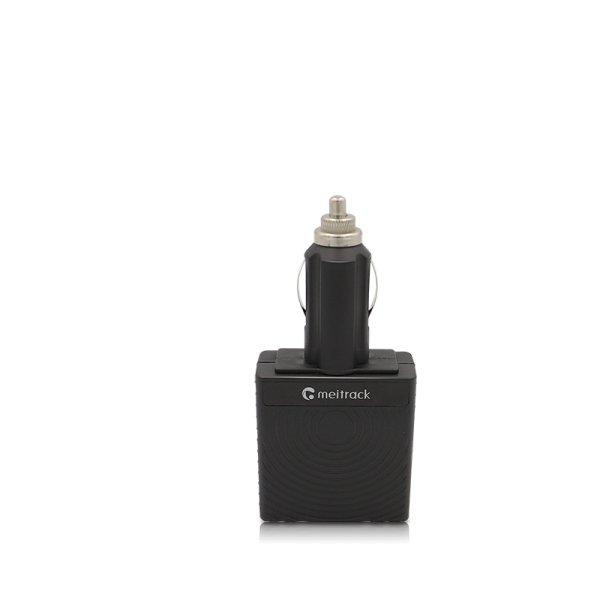

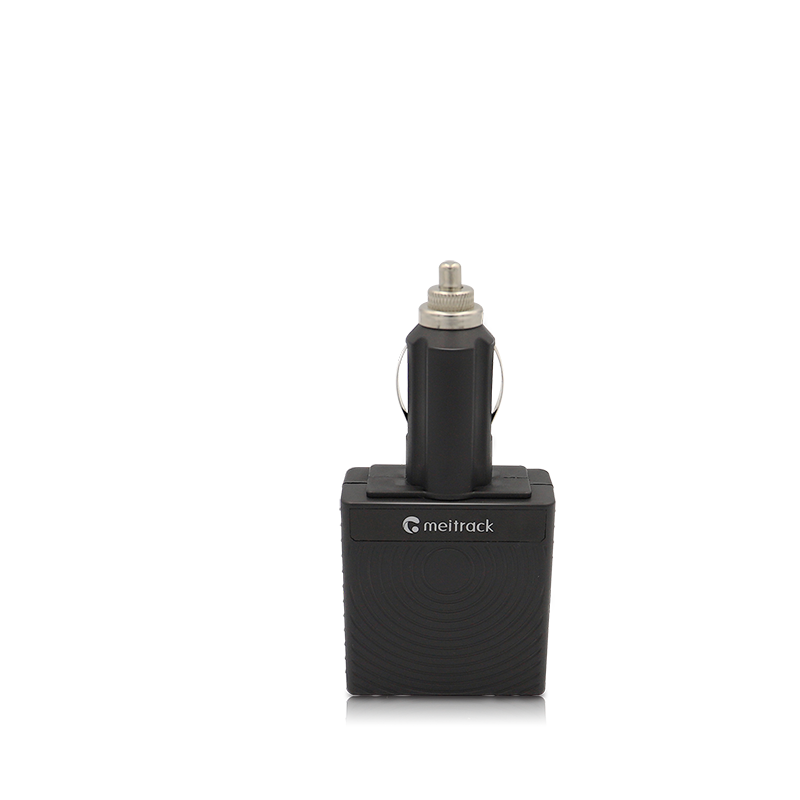

TS299L

  • 2.4 GHz WiFi Hotspot
  • Plug and Play
  • Bluetooth Communication
  • Disconnect Alert
Add to Wishlist
Category: 4G (LTE Cat 1/4) 2G Wi-Fi GNSS FOTA CE ISO 7637
Trust Badge Image

Features





Specifications

Communication and Positioning

GSM

4G (LTE Cat 1/4), 3G, 2G

GNSS antenna

Internal

Wi-Fi hotspot

(optional) 2.4 GHz WiFi hotspot

Bluetooth

(optional) Support Bluetooth 4.2 and Bluetooth 5.0

Positioning accuracy

2.5m

Power

Power supply

DC 11.5–36 V / 1 A

Backup battery

(optional) 200 mAh/3.7 V

Power consumption

Current in standby mode: 100 mA

Working hour

Power-saving mode: 20 hours; Normal working mode: 2 hour

Physical Specifications

Dimensions

105 mm x 51 mm x 23.5 mm

Weight

60g

Operating Environment

Operating temperature

-20°C~55°C

Operating humidity

5% to 95%

Functions

Memory

8 MB buffer

Frequency Bands

Global

No WiFi version band:
TS299E: GSM: B2/B3/B5/B8
Cat M1/NB2: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/
B19/B20/B25/B26/B27/B28/B66/B71/B85

Africa/Europe/Middle East

No WiFi version band:
TS299L-E: FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM: B3/B8
WiFi version band:
TS299L-E: FDD: B1/B3/B5/B7/B8/B20, WCDMA: B1/B5/B8, GSM: B3/B8

Australia

No WiFi version band:
TS299L-AU: FDD: B1/B2/B3/B4/B5/B7/B8/B28, TDD: B40
WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8
WiFi version band:
TS299L-AU: FDD: B1/B2/B3/B4/B5/B7/B8/B28, TDD: B40
WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8

Americas

No WiFi version band:
TS299L-A: FDD: B2/B4/B12, WCDMA: B2/B4/B5
WiFi version band:
TS299L-A: FDD: B2/B4/B12, WCDMA: B2/B4/B5

Japan

No WiFi version band:
TS299L-J: FDD: B1/B3/B8/B18/B19/B26
WiFi version band:
TS299L-J: FDD: B1/B3/B8/B18/B19/B26, TDD: B41, WCDMA: B1/B6/B8/B19

Thailand

N/A

Others

OTA/FOTA

FOTA

Certification

CE, ESD
